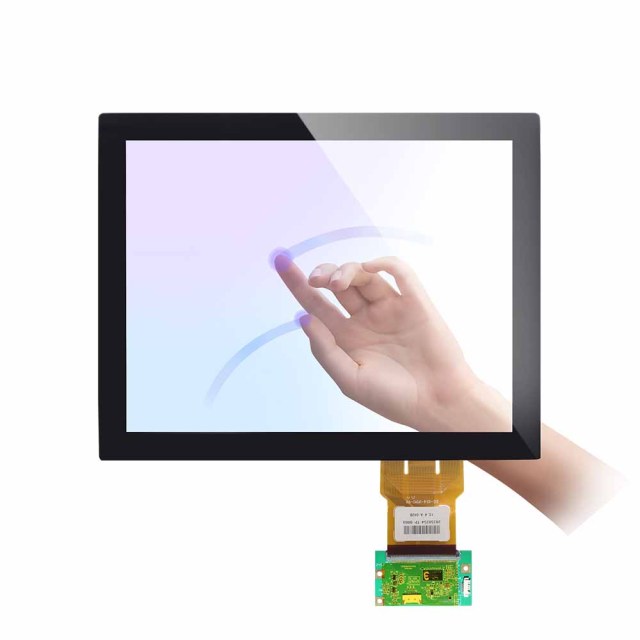

Features of touch panel overlay kitStructure and Manufacturing Process1.The use of a G+G (Glass + Glass) structure enhances overall rigidity and effectively reduces the risk of ITO damage caused by uneven stress on the sensor layer. At the same time, standardized fixtures combined with automated alignment and lamination processes replace manual or basic equipment operations, significantly minimizing alignment deviations and improving overall consistency and yield.
Effectively eliminates air bubbles and edge lifting (delamination), ensuring a flawless bonding interface and long-term structural stability.1.Production is carried out in a Class 100 cleanroom environment, where airborne particles are strictly controlled to minimize bubble formation caused by dust contamination. After lamination, a dedicated vacuum debubbling process is applied to further eliminate residual air bubbles, ensuring optimal optical clarity and bonding quality.
2.A constant temperature and humidity-controlled workshop is implemented to prevent material pre-shrinkage caused by thermal expansion and contraction. In addition, step-relief structures and chamfering are applied to the touch panel edges to reduce stress concentration, effectively preventing edge lifting or delamination.
In terms of product design:
1.Additional edge dispensing is applied around the touch panel to create a secondary sealing barrier, effectively preventing moisture ingress and avoiding issues such as adhesive aging and degradation.
2.
A slight deformation allowance is reserved in the design to accommodate thermal expansion and contraction, preventing stress on the ITO circuitry and avoiding potential touch failure.
3.High and low temperature cycling as well as damp heat aging tests are conducted before shipment to screen out defective units and ensure product reliability.
In terms of algorithms:
1.An edge linear compensation mechanism is enabled at the algorithm level to improve touch accuracy at the screen borders and reduce issues such as misalignment and jumping points.
2.At the same time, dynamic coordinate calibration is activated to further suppress coordinate drift and reduced touch responsiveness caused by extreme high or low temperatures, ensuring stable and accurate touch performance.
3.Noise filtering is applied to areas that are prone to touch failure or reduced sensitivity, improving signal responsiveness and reducing instances of localized touch non-response, thereby enhancing overall touch accuracy and stability.
FAQ
1.Why does the touch panel use a G+G structure?
The G+G (Glass + Glass) structure significantly improves mechanical rigidity and structural stability, while reducing ITO damage caused by uneven stress. It also enhances durability and ensures more consistent touch performance in demanding environments.
2.How do you prevent bubbles and edge lifting during lamination?
We manufacture in a Class 100 cleanroom to strictly control dust particles. After lamination, a vacuum debubbling process is applied to remove residual air bubbles. Additionally, edge step design and chamfering help reduce stress concentration and prevent edge lifting.
3.How is reliability ensured under temperature and humidity changes?
A constant temperature and humidity-controlled environment is used to prevent material pre-shrinkage and stress variation. We also reserve micro deformation tolerance in the structure to accommodate thermal expansion and contraction, protecting the ITO traces from stress damage.
4.What kind of testing is performed before shipment?
Each product undergoes high and low temperature cycling, as well as damp heat aging tests. These processes help eliminate unstable units and ensure long-term reliability in harsh operating conditions.
5.How is touch performance optimized at the algorithm level?
We implement edge linear compensation to improve border accuracy, dynamic coordinate calibration to reduce temperature-induced drift, and noise filtering in sensitive areas to enhance responsiveness and minimize local touch failure.
