Product Advantages
Structural and Design Advantages
The module features a layered design combining medical-grade ABS or PC materials with medical optical bonding display technology, which enhances structural stability and reduces optical distortion. Its modular architecture supports integration with existing medical device systems and offers flexible size options, delivered by an experienced medical touch display manufacturer. The use of medical-grade adhesives such as 3M VHB and high-precision lamination ensures reliability and resistance to repeated sterilization. The incorporation of antibacterial medical touch screen coatings maintains long-term hygiene compliance necessary for critical care environments.
Performance and User Functionality Benefits
Performance-wise, this module delivers fast touch response times below 8 milliseconds with support for 10-point multi-touch interactions, enhancing operational accuracy under intense clinical workloads. The antibacterial medical touch screen ensures infection control while reducing maintenance frequency. It features glare reduction and ultra-wide viewing angles to provide clear visibility across different lighting conditions, contributing to ergonomic user experiences. The solution’s compliance with medical electromagnetic compatibility standards guarantees zero interference with nearby diagnostic equipment, supporting seamless use in environments demanding high system reliability and uninterrupted patient care.
Use Scenarios
Surgical Navigation and Interactive Control Environments
In high-precision surgical navigation systems, this medical touch display solution operates as the primary interface for annotation and control. The product’s glove-compatible multi-touch capability and resistance to false touches enable surgeons to interact accurately without compromising sterility. Its antibacterial medical touch screen coating conforms to rigorous sanitization protocols, while the medical optical bonding display ensures superior image clarity for critical decision-making. Integration into surgical suites enhances workflow efficiency by supporting 24/7 operation and compliance with IEC 60601-1 standards, facilitating seamless coordination between device control and clinical procedures.

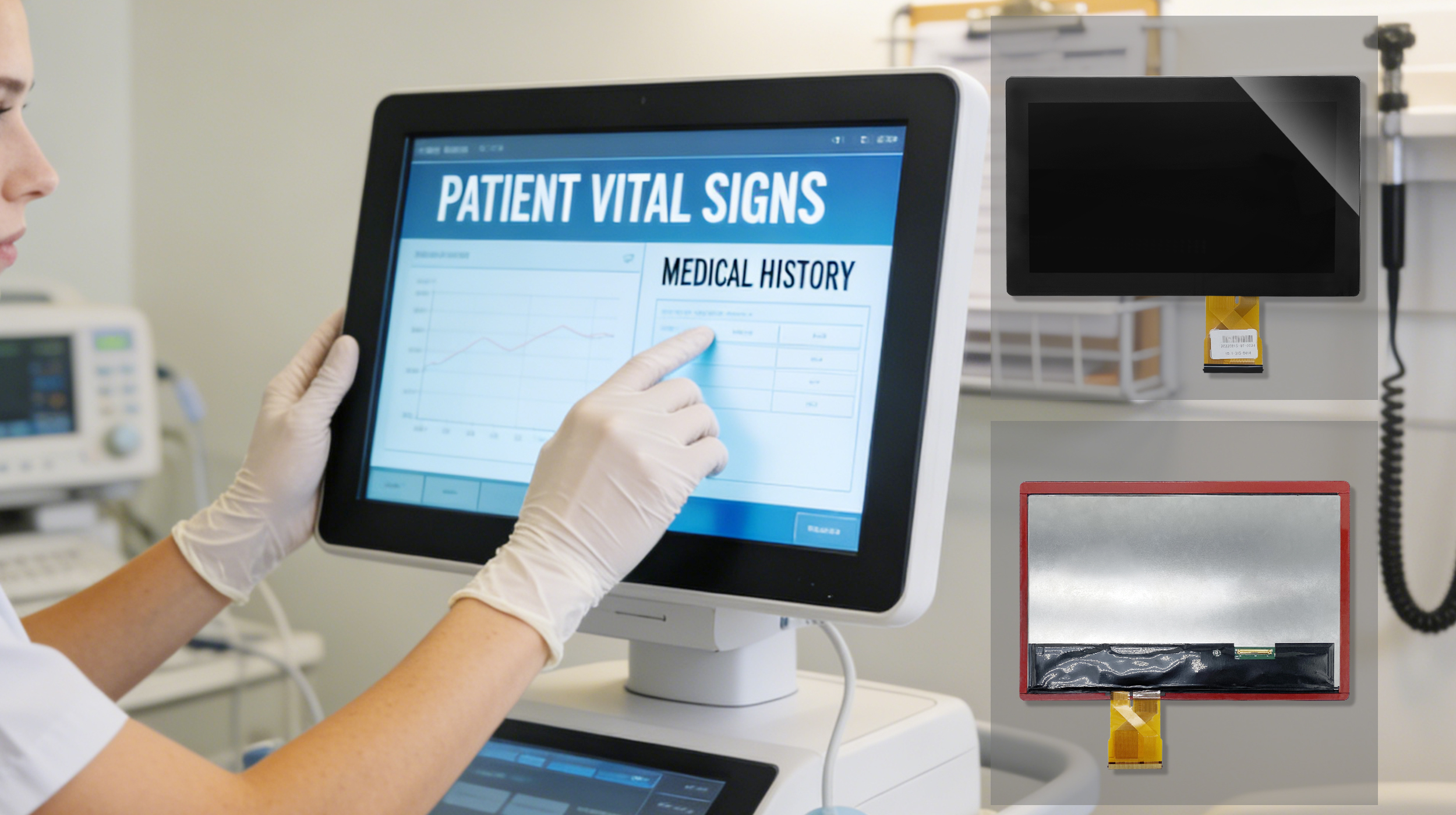

Patient Monitoring and Clinical Workflow Applications
Within clinical monitoring systems, this module functions as a durable, hygienic interface that supports multiple simultaneous users. Its IP65+ rated ingress protection prevents damage from splashes of medical fluids, while the glove-compatible multi-touch input allows clinicians to navigate patient data quickly and precisely. The medical touch display solutions’ antibacterial coating helps minimize infection risk in high-traffic areas. Adaptable sizing and medical optical bonding display technology improve readability and touchscreen responsiveness, enabling integration into hospital information systems and electronic health record workflows for enhanced patient management and operational reliability.

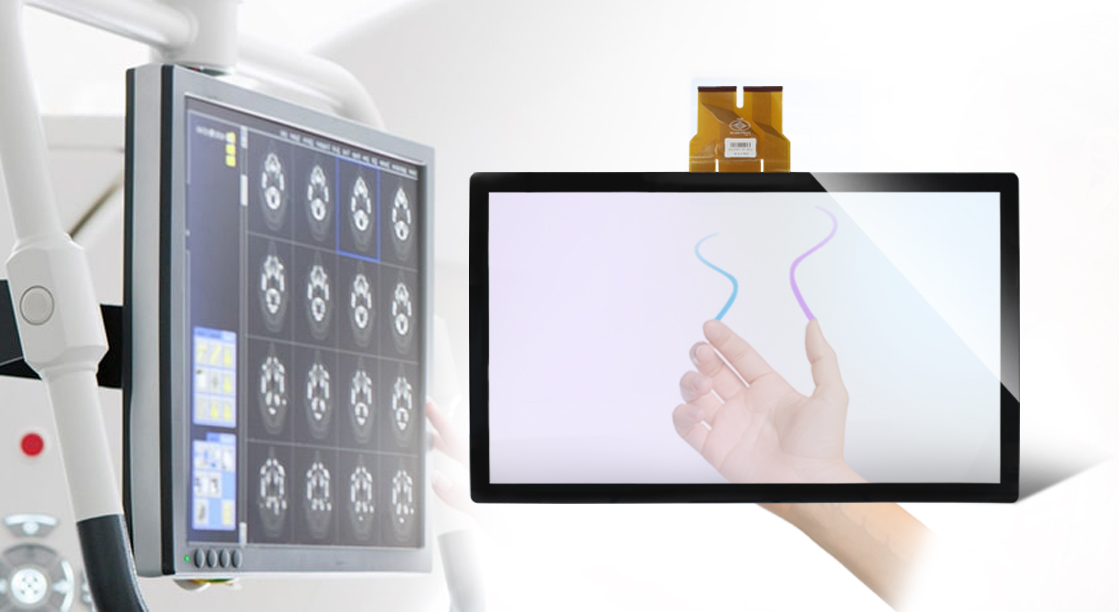

Medical Touch Panel:
1.Size :7-32inch
2.Silver Ion Coating: The surface is coated with a silver ion layer, inhibiting the growth of common pathogenic bacteria such as Escherichia coli and Staphylococcus aureus.
3.Resistance to Repeated Disinfection: Can withstand frequent wiping with common medical disinfectants such as alcohol, chlorine-containing disinfectants and hydrogen peroxide, with no coating peeling, discoloration or cracking after more than 5000 disinfection cycles.
4.Ingress Protection Rating: Up to IP65 or higher, achieving waterproof, dustproof and medical liquid splash-proof performance, preventing blood, normal saline, medical liquids and other substances from penetrating into the touch screen and causing circuit short circuits.
5.Glove Operation Compatibility: Supports accurate operation with both thick and thin gloves, with touch recognition accuracy ≥ 99%, preventing operation failure or false touches caused by glove usage.
6.Anti-False Touch Algorithm: Features an anti-false touch algorithm that can filter out false touch signals caused by water droplets and residual medical liquids.
7.Electromagnetic Compatibility Compliance: Complies with EN 60601-1 Electromagnetic Compatibility Standard for Medical Electrical Equipment, capable of operating stably in strong electromagnetic interference environments such as MRI rooms and high-frequency electrosurgical unit scenarios, without issues like screen flickering, touch drift or data lag.
8.Light Transmittance & Anti-Glare Coating: High light transmittance (≥85%), with an anti-glare (AG) coating applied to the surface. No reflection occurs under the illumination of operating room high-intensity lamps and hospital natural light, ensuring clear visibility of images and data.
9.Ultra-Wide Viewing Angle: Supports a 178° ultra-wide viewing angle, meeting the needs of multi-person consultations where doctors at different positions can clearly view the screen content.
10.Continuous Operation Capability & MTBF: Supports 7×24-hour continuous operation, with Mean Time Between Failures (MTBF) ≥ 50,000 hours, meeting the non-stop working requirements of medical equipment.
11.Touch Sensor Layer Durability & Service Life: The touch sensor layer is made of wear-resistant material, with a single-point touch service life of ≥ 50 million cycles, meeting the requirements of high-frequency operation scenarios.
Medical Air Bonding Touch Display:
1.Size 5-32 inch
2.Safety Certification: Complies with IEC 60601-1 (corresponding to GB 9706.1-2020) medical electrical equipment safety standards
3.Electromagnetic Compatibility: Complies with IEC 60601-1-2 (YY 0505) standard
4.Insulation Class: Adopts double insulation or reinforced insulation design, with creepage distance ≥8mm, to ensure safe operation.
5.Surface Hardness: ≥6H, scratch-resistant, suitable for frequent cleaning requirements
6.Anti-Glare (AG) Treatment: Reducing glare interference from strong light in operating rooms and enhancing visibility
7.Disinfectant Resistance: Resistant to wiping with medical disinfectants such as 75% ethanol, isopropanol and sodium hypochlorite (0.2%) for no less than 1000 cycles without corrosion.
8.Response Speed: ≤8ms, ensuring the real-time performance and accuracy of medical operations
9.Touch Accuracy: Linear error ≤1.5%, supporting 10-point multi-touch and meeting the needs of complex medical interface operations
10.Stability: No drift, no frequent calibration required, ensuring reliability for long-term continuous operation
11.Contrast Ratio: ≥800:1, ensuring clear visibility of image details
12.Viewing Angle: Horizontal/Vertical ≥85°, meeting the needs of simultaneous observation by multiple medical staff
13.Color Reproduction: Supports 262K~16.7M colors
14.Antibacterial Coating: The surface has antibacterial properties, complies with JIS Z2801 standard, with an antibacterial rate > 99.9%, inhibiting the spread of pathogenic bacteria such as MRSA.
15.Biocompatibility: Parts in contact with the human body shall comply with ISO 10993 standard to avoid tissue irritation.
16.Material Selection: Prioritizes medical-grade ABS or PC materials, free of hazardous substances such as bisphenol A (BPA).
17.Tape Selection: Uses medical-grade 3M VHB tape or PET optical tape, ensuring long-term adhesion and stability.
18.Lamination Accuracy: Assembly error is controlled within ±0.1mm to prevent touch deviation and display distortion.

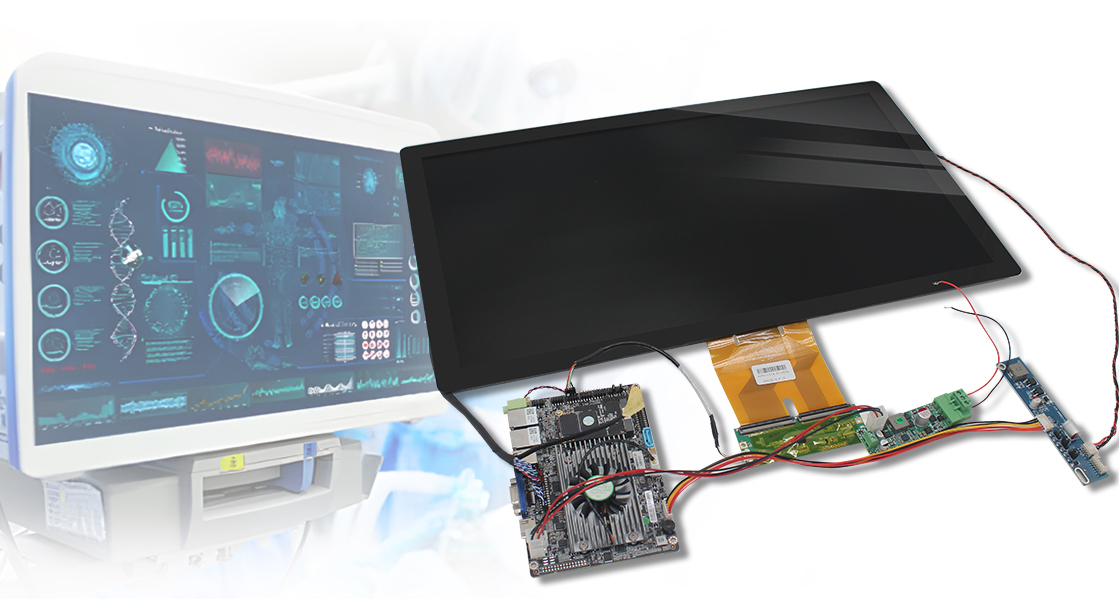

Medical Optical Bonding Touch Display:
1.Size:7-55 inch
2.Transmittance: ≥85%
3.Contrast Ratio: ≥1000:1
4.Brightness: 300~1000 cd/m²
5.Viewing Angle: 178° wide viewing angle
6.Gray Scale Display: 10-bit
7.Color Reproduction: 90%+ NTSC gamut
8.Antibacterial Coating: Silver Ion / Nano Antibacterial Technology, Antibacterial Rate ≥99.9%
9.Anti-Glare Treatment: AG (Anti-Glare) Tempered Glass
10.Touch Accuracy: ≤0.1mm, enabling precise operation in surgical navigation and ultrasound image annotation
11.Response Speed: ≤8ms, enabling fast operation and reducing diagnosis delays
12.Multi-Touch: 10 points and above, supporting complex operations such as zooming, rotating and annotation, improving work efficiency
13.Glove Operation Compatibility: Supports medical gloves with a thickness of 0.5~1.5mm, enabling operation without removing gloves during surgical procedures and reducing the risk of infection.
14.Stylus Support: Supports medical-dedicated capacitive styluses, enabling accurate writing of medical orders, marking of lesion sites, and improving the accuracy of medical records.
15.Full Lamination Technology: Seamless lamination with OCA/LOCA optical adhesive, no air layer, preventing dust and fogging inside the screen, improving structural strength and extending service life.
FAQ
Can you customize the Medical Multi-Touch Display Module for specific size requirements?
We offer sizes ranging from 5 to 55 inches and provide flexible customization supported by 30 R&D professionals. Our team can produce custom medical touch screen solutions with a lead time of 7–15 days for samples and 20–25 days for mass production to fit your project needs.
What materials are used for the Medical Multi-Touch Display Module to ensure durability?
Our modules use medical-grade ABS or PC materials that are BPA-free. The displays feature silver ion antibacterial coatings and are laminated with medical-grade 3M VHB or PET optical tape, ensuring both durability and compliance with medical standards for medical touch display solutions.
How do you ensure the device’s resistance to disinfectants and cleaning protocols?
We design our displays to withstand over 5000 disinfection cycles on the touch panel and more than 1000 cycles for air bonding types using common medical disinfectants. This level of resistance makes our antibacterial medical touch screen ideal for frequent cleaning in sterile healthcare settings.
Do you provide support for installation and maintenance of your medical touch display products?
Yes, we provide technical guidance and ongoing support for installation and maintenance. As a trusted medical touch display manufacturer, we ensure your modules operate reliably with full compliance to IEC 60601-1 standards and help troubleshoot any integration questions you may have.
