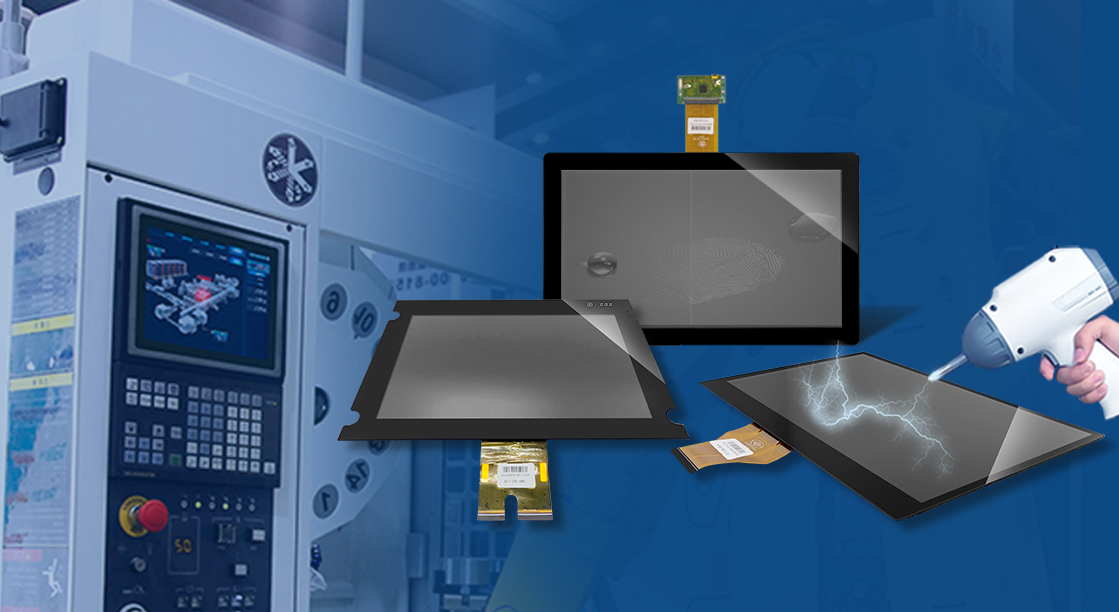

Industrial Capacitive Touch Panel:
1.size:7-31.5inch
2.Vibration & Shock Resistance: Up to IK11
3.Surface Special Coating Protection: The surface is treated with a special coating, which can effectively resist water, dust and corrosion.
4.Glove Touch Support: Supports accurate touch control with thick gloves (0.5~2mm), eliminating the need to remove gloves for operation.
5.Touch Accuracy & Response Speed: Single-touch accuracy error < 1mm; response time < 10ms; supports multi-touch (2~10 points), meeting the needs of parameter adjustment, image zooming and other operations.
6.Anti-Interference Capability: EMC (Electromagnetic Compatibility)
7.High Brightness & Wide Viewing Angle: Screen brightness ≥ 500cd/㎡, visible even in strong light; supports a 170° wide viewing angle (horizontal/vertical).
8.High Contrast Ratio: Contrast ratio ≥ 1000:1, so data, charts and alarm information remain clearly visible in complex lighting environments; supports automatic brightness adjustment, ensuring clear display and accurate touch control even in strong light.
9.Long-Term Stability: ≥50,000 hours, and supports 7×24-hour continuous operation.

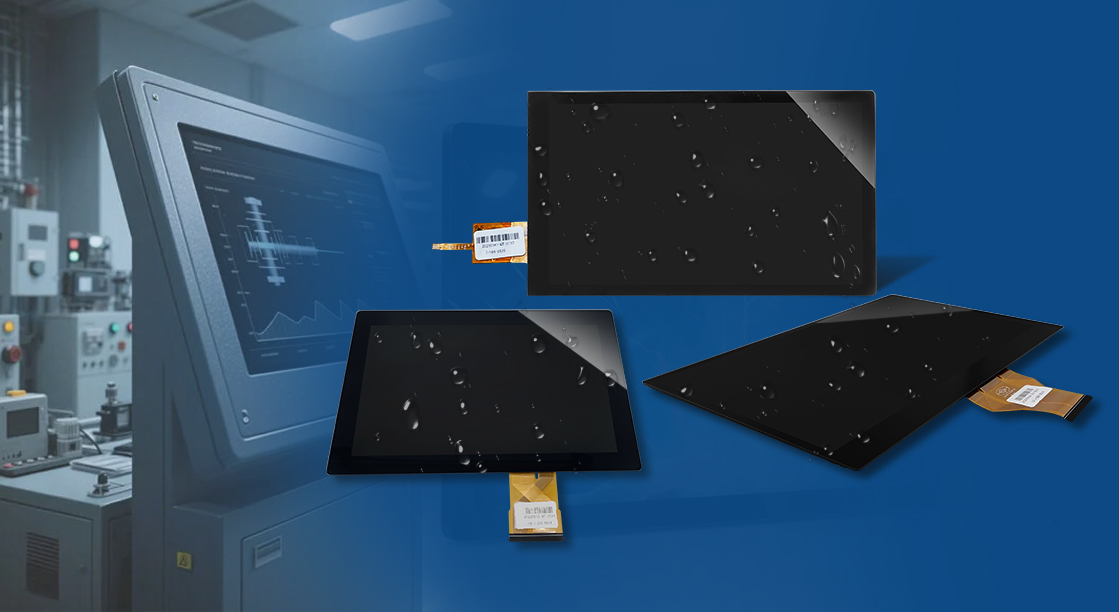

Industrial Air Bonding Touch Display:
1.Size:7-32inch
2.Operating & Storage Temperature Range: Operating temperature: -20℃~60℃; Storage temperature: -40℃~85℃
3.Wide-Temperature LCD Panel & Temperature-Resistant Touch IC
4.IP65+ Dust & Water Protection Structure: Rating ≥ IP65; the frame is equipped with sealing rubber strips, and a waterproof coating is applied to the edges of the touch panel.
5.Humidity Resistance & Corrosion Protection: Supports operation in a relative humidity range of 5%~95% (non-condensing); the panel surface is equipped with anti-salt spray and anti-chemical corrosion capabilities.
6.UV Aging Resistance: The panel adopts an integrated UV anti-aging coating, which can effectively prevent yellowing, touch malfunction and other faults caused by long-term exposure to sunlight.
7.Glove & Anti-Interference Touch Performance: Supports touch operation with cotton/rubber gloves within 5mm thickness; it also has the capabilities of anti-water mist and anti-oil contamination.
8.Touch Accuracy & Response Speed: Single-touch accuracy error ≤ ±2mm; supports stable 4-point/10-point multi-touch; touch response latency ≤ 10ms, effectively avoiding lag issues during industrial control operations.
9.Scratch & Wear Resistance: The touch panel adopts chemically tempered glass with a Mohs hardness ≥ Grade 6, which can withstand slight scratches from screwdrivers and other metal tools; its surface hardness ≥ 7H (pencil hardness test), ensuring no obvious scratches after long-term use.
10.Ultra-Long Service Life: Single-touch click durability ≥ 50 million cycles; slide durability ≥ 10 million cycles, ensuring the touch IC maintains no drift or malfunction.
11.Vibration & Shock Resistance: Complies with mechanical standards for industrial equipment; can withstand random vibration with a frequency of 10~2000Hz and acceleration of 1G; passes the shock test with 50G acceleration and 11ms duration.
12.Structural Stability: The frame bonding frame is made of aluminum alloy or high-strength PC material; the bonding glue features temperature resistance to avoid degumming and edge warping caused by high-low temperature cycling. The module flatness error ≤ 0.3mm/m, preventing local malfunction in the touch area.
13.Electromagnetic Compatibility (EMC) Resistance: Passes CE and FCC Class B certifications; meets the electrostatic discharge (ESD) protection level of ±8kV for contact discharge and ±15kV for air discharge; has radio frequency interference (RFI) resistance capability to prevent touch signal interference.
14.Interface Compatibility: Supports common industrial interfaces including USB, I2C and RS232, and is compatible with plug-and-play functionality.
15.Anti-Static Design: The internal circuits of the module are equipped with anti-static protection, preventing electrostatic damage to the touch IC and LCD panel and ensuring long-term stable operation.

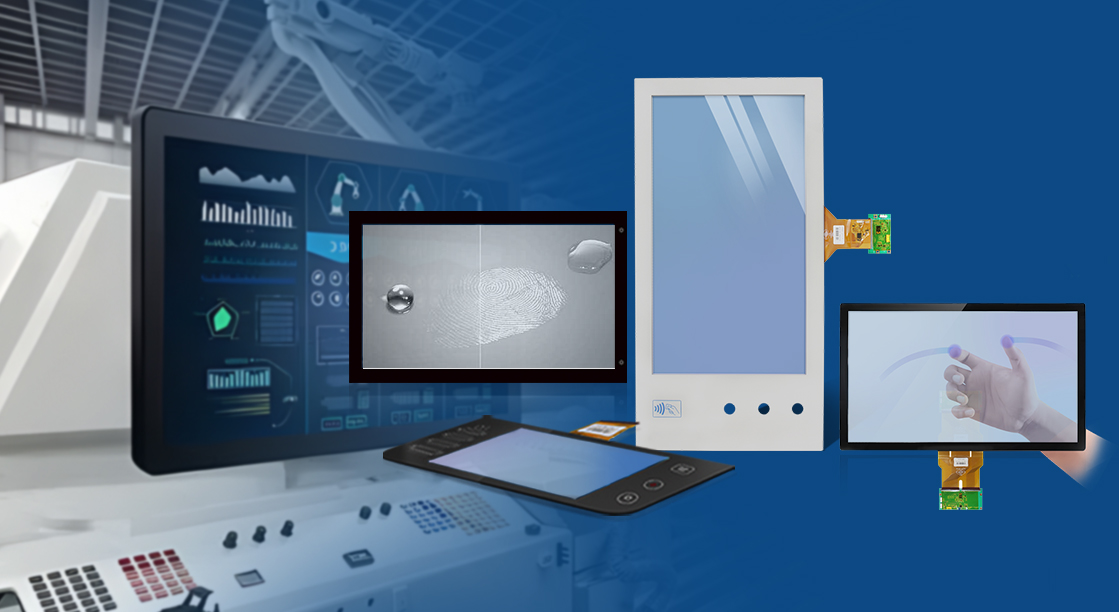

Industrial Optical Bonding Touch Display:
1.size:7-21.5inch
2.Dust & Water Proof Performance: The lamination process adopts a fully sealed adhesive frame + full lamination with Optical Clear Adhesive (OCA), preventing dust particles and moisture from entering the module interior and causing circuit short circuits.
3.Vibration Test Compliance: Complies with IEC 60068-2-6 standard. Within the frequency range of 10–2000Hz, under the condition of 0.75mm amplitude or 10g acceleration, there is no deviation in touch accuracy after the test.
4.Shock Test Compliance: Complies with IEC 60068-2-27 standard. Under the condition of half-sine wave shock acceleration of 50g with a duration of 11ms, the module has no structural damage and the touch function remains normal.
5.Touch Resolution: ≥ 4096×4096, ensuring accurate triggering of tiny icons.
6.Response Time: Single-touch response ≤ 10ms; multi-touch (supports 10 points and above) features zero latency and no ghost points.
7.Linear Error: ≤ 1%, avoiding operational errors caused by touch deviation in equipment such as machine tools and robots.
8.Strong Light Interference Resistance: Supports visible touch operation under sunlight; equipped with anti-glare (AG) glass and anti-reflection (AR) coating, it achieves a touch recognition rate ≥ 99% even under strong light of 100,000 lux.
9.Strong Light Interference Resistance: Supports visible touch operation under sunlight; equipped with anti-glare (AG) glass and anti-reflection (AR) coating, it achieves a touch recognition rate ≥ 99% even under strong light of 100,000 lux.
10.Glove & Wet-Hand Touch Compatibility: Supports glove touch (for labor protection gloves with a thickness ≤ 5mm) and wet-hand touch.
11.Chemically Tempered Glass Protection: Adopts chemically tempered glass with a Mohs hardness ≥ 7H, which can resist scratches from tools such as knives and screwdrivers.
12.Touch Durability & OCA Anti-Aging Performance: Single-touch durability ≥ 50 million cycles; multi-touch durability ≥ 10 million cycles. Optical Clear Adhesive (OCA) boasts excellent anti-aging performance, with no yellowing or degumming occurring under high-low temperature cycling.
13.Power Consumption Stability: Under wide voltage input (e.g., DC 9–36V), the power consumption fluctuation is ≤ 5%, avoiding touch abnormalities in industrial equipment caused by voltage instability.
