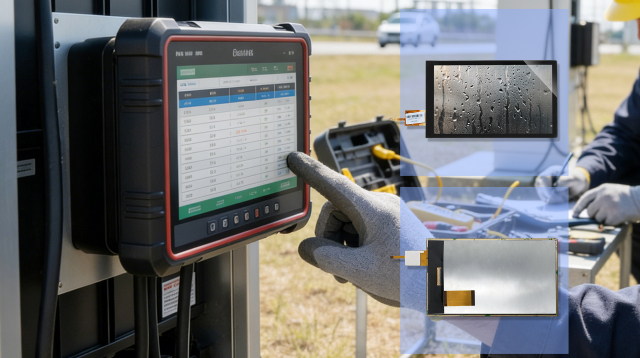

Outdoor touch modules are designed with high brightness, strong sunlight readability, and wide operating temperature ranges to ensure stable performance in harsh environments. With features such as waterproof and dustproof structures, anti-glare and anti-UV surface treatments, and high durability glass, they provide reliable touch interaction, long-term stability, and excellent visibility for outdoor equipment, kiosks, and industrial devices.

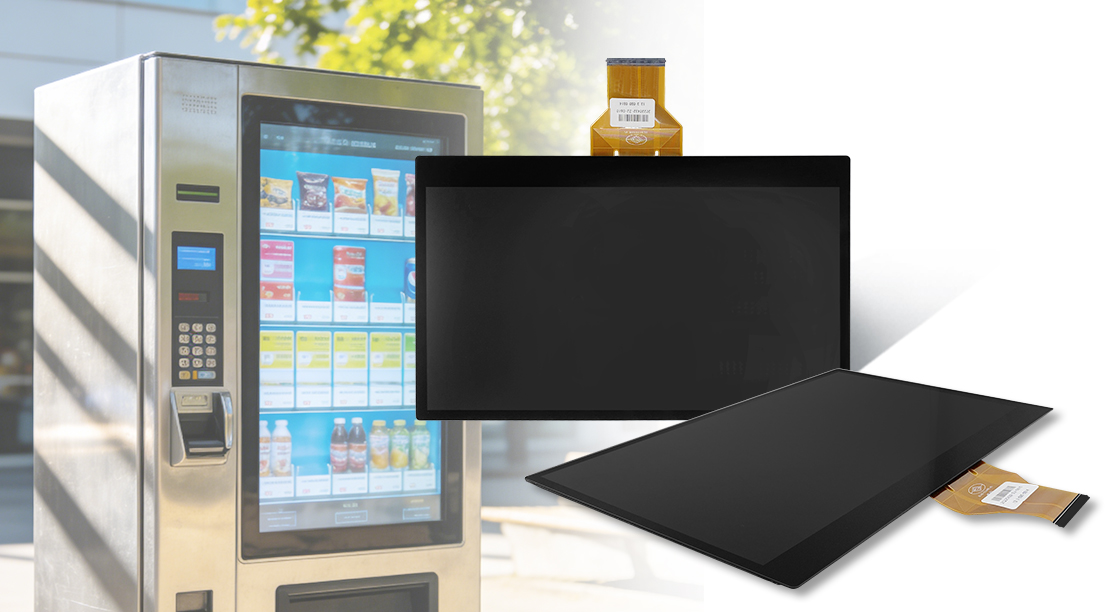

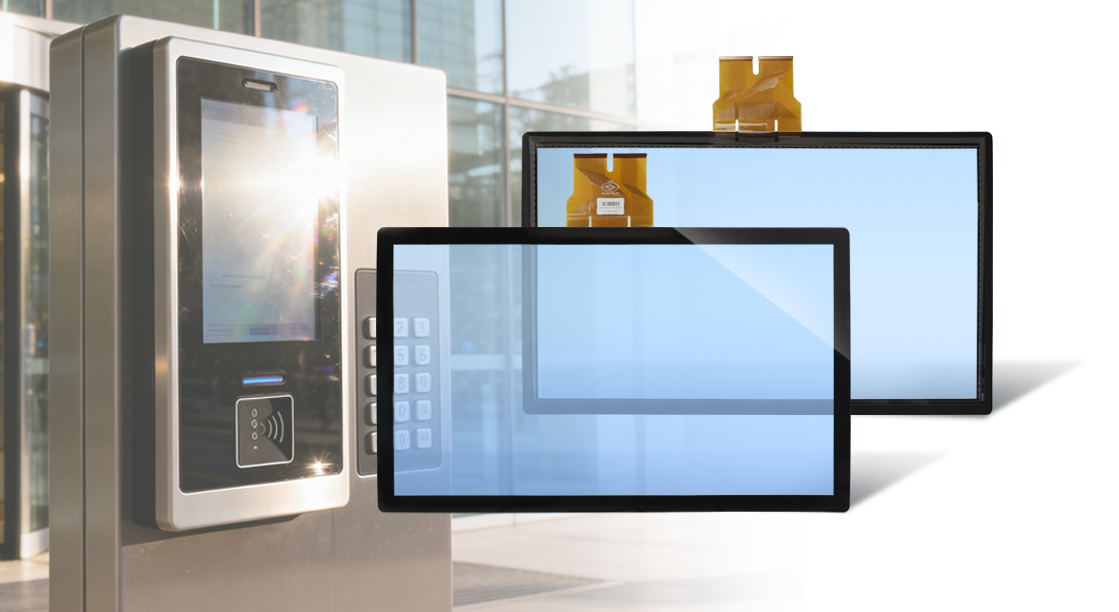

Capacitive Touch Panel: 1.size:4.3-55inch 2.High & Low Temperature Adaptability: Operating temperature -30℃~60℃, storage temperature -40℃~70℃. 3.UV Resistance: The touch panel surface is treated with a UV-resistant coating, preventing yellowing, aging and performance degradation caused by long-term exposure to sunlight, and ensuring an outdoor service life of more than 5 years. 4.Moisture & Salt Spray Resistance: Supports a humidity range of 5%~95% (non-condensing); the housing and interfaces adopt stainless steel or anti-corrosion coatings. 5.Dust & Water Resistance: The front-side protection rating reaches IP65 and above, capable of preventing water jetting and dust ingress, and suitable for outdoor dusty and rainy environments. 6.Vandalism Resistance: The touch panel is made of tempered glass with a Mohs hardness ≥ Grade 7, featuring scratch and impact resistance, and capable of withstanding external impact and scratches from sharp objects. 7.High-Brightness Display: Equipped with anti-glare (AG) glass/anti-reflection (AR) coating, reducing glare interference caused by direct sunlight. 8.Glove & Wet-Hand Touch Support: Supports both glove and wet-hand touch operations, with a touch response speed ≤10ms. 9.Electromagnetic Interference (EMI) Resistance: Resists electromagnetic interference from outdoor lightning strikes, high-voltage power grids and wireless signals, ensuring no touch drift or false touches. 10.Multi-Touch Stability: Supports 10-point and above multi-touch, meeting the needs of multi-person simultaneous operation or gesture interaction.

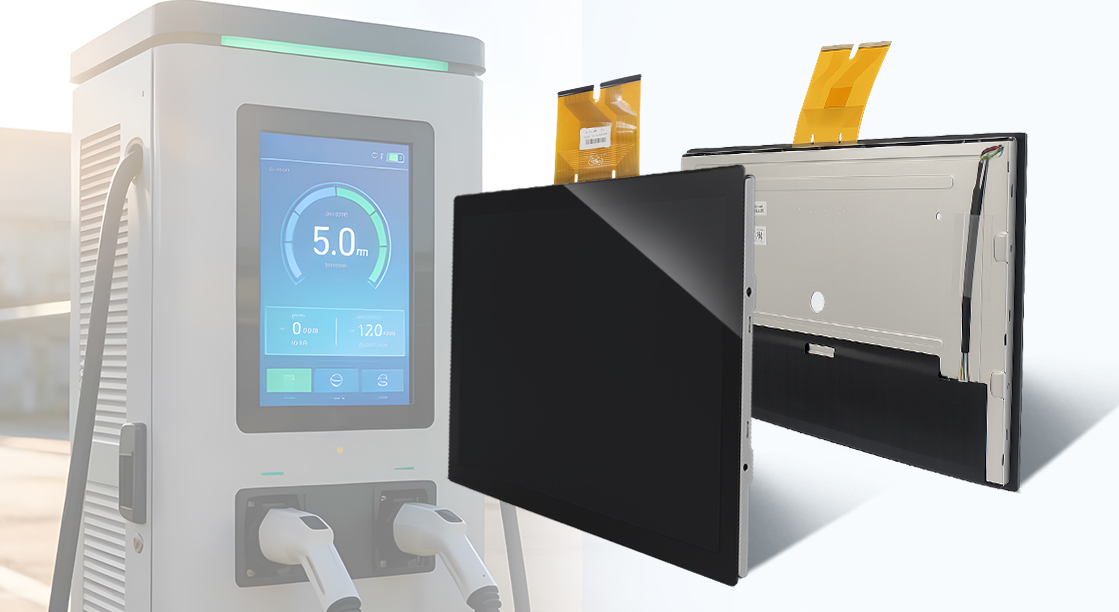

Air Bonding Touch Display: 1.size:7-65inch 2.Wide Operating Temperature Range: operating temperature of -30℃~+70℃ and storage temperature of -40℃~+85℃. 3.Dust & Water Protection Rating: Front-side protection reaches IP65 and above, capable of withstanding water jetting and dust accumulation. Waterproof rubber strips are adopted for sealing the frame and bonding areas, preventing moisture penetration into the interior and subsequent short circuits. 4.UV Aging Resistance: The touchscreen surface is coated with a UV-resistant layer, and the tempered glass substrate undergoes UV curing treatment. It meets the requirement of no yellowing or cracking after ≥1000 hours of UV irradiation, preventing module aging caused by long-term direct sunlight. 5.Salt Spray Corrosion Protection: The metal frame is made of anodized aluminum alloy or stainless steel material, passes the 48-hour neutral salt spray test, and shows no rusting or coating peeling. 6.High Brightness: Brightness reaches 500 cd/㎡ and above, and supports automatic brightness adjustment. 7.High Contrast Ratio: Static contrast ratio ≥1500:1, reduces screen whitening under strong light, and ensures the clarity of text and images. 8.Wide Viewing Angle: Horizontal/vertical viewing angles ≥178°, meets the needs of multi-person and multi-angle viewing outdoors, with no obvious color distortion. 9.Waterproof Touch Capability: Supports operation with water on the screen, featuring no false touches or touch drift when the screen is covered with rainwater, and the touch response remains unaffected. 10.Glove Touch Compatibility: Supports operation with work gloves of thickness ≤5mm, meeting the usage needs of outdoor workers. 11.Fast Response & Anti-Interference: Touch response speed ≤5ms, passed EMC electromagnetic compatibility certification. 12.Scratch & Wear Resistance: The touchscreen surface hardness reaches ≥7H, capable of withstanding sand erosion and hard object scratches, extending the service life. 13.Anti-Condensation Design: The module interior reserves vent holes or is equipped with dehumidification coatings, preventing internal condensation caused by large day-night temperature differences and avoiding damage to circuits and display panels. 14.Long Service Life & Low Failure Rate: MTBF (Mean Time Between Failures) ≥50,000 hours and service life ≥5 years; supports fast disassembly of the frame bonding structure, facilitating on-site maintenance outdoors. Optical Bonding Touch Display: 1.size:10.1-75inch 2.High brightness:800-2000nits 3.Contrast Ratio & Full Lamination Technology: ≥3000:1, with full lamination technology eliminating the air gap, enhancing contrast ratio and color saturation. 4.Anti-Glare (AG) Treatment: Surface reflectivity is reduced to below 1.5%, preventing specular effect under strong light conditions. 5.Anti-Reflective (AR) Coating: Further reduces reflections and improves outdoor viewing angles. 6.Light Transmittance: ≥85%, ensuring excellent display performance and touch sensitivity. 7.Physical Impact Resistance: IK08 or higher 8.UV Resistance: Uses UV-resistant OCA optical adhesive and special polarizers, preventing yellowing and aging. 9.Wide Operating Temperature Range: Standard -20℃~70℃; can support -30℃~80℃ in extreme environments. 10.Aging Resistance: Passes UV aging test, ensuring no appearance or functional defects during long-term use. 11.Structural Design: Featuring ultra-narrow bezels and an ultra-slim body, supporting VESA mounting and portrait/landscape mode switching. 12.Wide Voltage Power Supply: DC 9–36V, adapting to unstable outdoor power supply environments. 13.Intelligent Dimming: Automatically adjusts brightness based on ambient light, saving energy and improving visibility. 14.Local Dimming: Dynamically adjusts backlight brightness, enhancing contrast ratio and black level performance. 15.Waterproof Touch Function: Supports operation underwater or in rainy conditions, adapting to harsh weather environments. 16.Electromagnetic Interference Resistance: Resists electromagnetic interference, adapting to complex outdoor electromagnetic environments.
