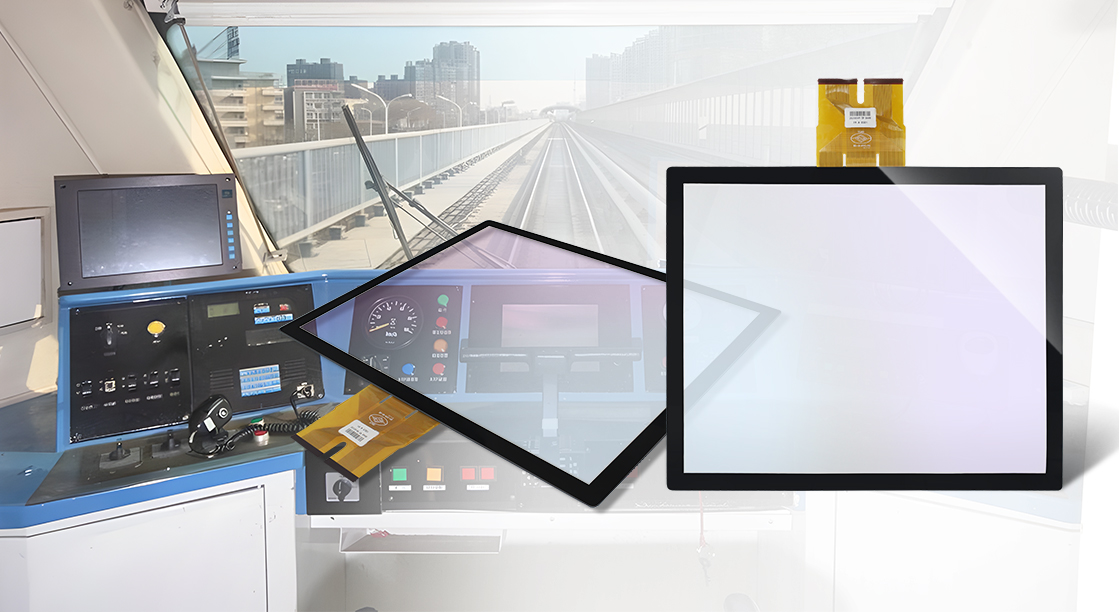

Transport Capacitive Touch Panel:
1.size :7-45inch
2.Storage Temperature: -40℃ ~ +85℃
3.Operating Temperature: -20℃ ~ +70℃
4.UV Resistance: Equipped with UV-resistant coating, preventing yellowing and brightness degradation caused by prolonged exposure to sunlight.
5.Wide-Viewing: Supports 178° full viewing angle
6.Fast Response & Accurate Touch: Touch response time ≤10ms, supports multi-touch (≥10 points), compatible with glove and wet-hand touch operation, meeting the operational needs of glove usage in winter.
7.Electromagnetic Compatibility (EMC): Shall comply with the automotive electronics standard ISO 11452 and rail transit standard EN 50155, to avoid interfering with the vehicle’s navigation and communication systems.
Transport Air Bonding Touch Display:
1.Size: 7–65 inches
2.Brightness: ≥500 cd/㎡
3.Contrast Ratio: ≥1000:1, maintains stability over a wide temperature range, enhances information visibility, and adapts to varying light conditions
4.Viewing Angle: 178° horizontal/ 178° vertical
5.Supply Voltage: Wide voltage input (9–36V)
6.Interface: I2C, USB, HDMI
7.Touch Points: 5-point/10-point touch, supports glove operation, response time ≤10ms
8.Hardness≥ 7H (tempered glass), resistant to violent damage
Transport Optical Bonding Touch Display:
1.Size: 7–65 inches
2.Touch Technology: Projected Capacitive (PCAP), supports 5-point/10-point touch, with a response time ≤25ms, and also supports glove/wet-hand operation.
3.Lamination: OCA/OCR full lamination, with lamination accuracy of ±0.1mm and bubble rate ＜0.01%, which improves light transmittance (≥90%), reduces reflection, and enhances structural strength.
4.Structural Protection: Surface hardness ≥6H, impact resistance ≥IK07, resistant to daily collisions and scratches.
5.Light transmittance ≥90%, with surface anti-reflective (AR) coating, reducing reflection and improving visibility.
6.Touch Accuracy: ±1mm in the central area, ±2mm in the edge area, ≤0.5mm for high-precision scenarios
7.Durability: 24/7 continuous operation, MTBF ≥ 50,000 hours, supports glove/wet-hand operation
