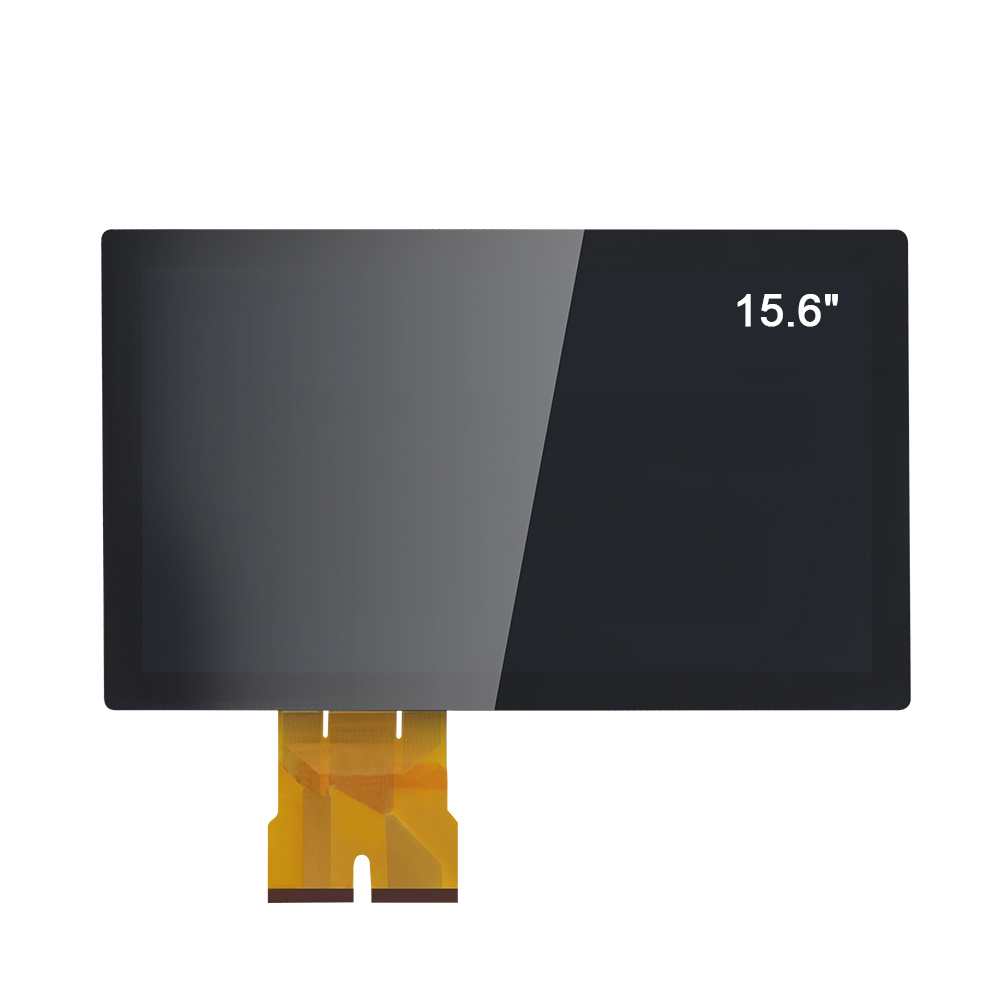

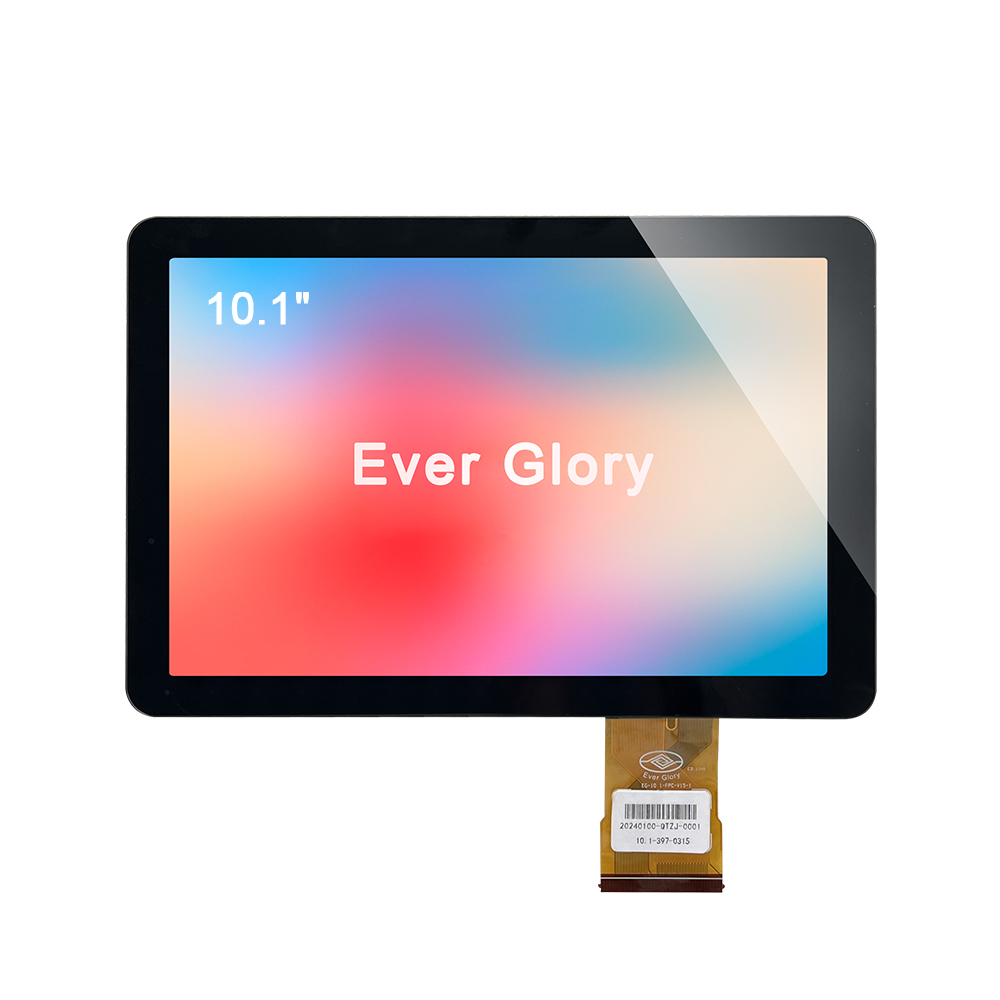

In the sheet metal processing industry, CNC controls for sheet metal machines (especially bending machines) are the core of ensuring processing accuracy, efficiency, and safety. The accuracy of bending parameter input, real-time monitoring of bending paths, and stable operation of control systems directly determine the quality of sheet metal workpieces and the continuity of production. As a professional touch panel manufacturer with 15 years of R&D and supply experience in touch control solutions, we have launched the 10.1’’/15.6’’/18.5’’ touch with display module specifically optimized for CNC controls of sheet metal machines. This integrated module combines high-precision touch operation and clear display functions, breaking through the limitations of traditional control panels in harsh metalworking environments, effectively solving pain points such as inaccurate bending control, unstable operation under interference, poor environmental adaptability, and inconvenient on-site operation, providing reliable integrated human-machine interaction support for sheet metal bending automation.
Core Product Features & CNC Sheet Metal Machine Application Value
1. High-Precision Multi-Touch – Ensures Accurate Bending Control
Sheet metal bending requires extremely high precision in parameter setting (such as bending angle, bending depth, and back gauge position), and even a tiny deviation can lead to workpiece scrapping. Our touch with display module is equipped with advanced industrial-grade capacitive multi-touch technology, supporting 5-point precise touch, with micron-level touch positioning accuracy and a response time of less than 5ms. The integrated high-definition display screen (1920×1080 resolution) clearly presents bending parameters, path simulation diagrams, and real-time operation status, allowing operators to intuitively view and quickly adjust parameters. Whether it’s fine-tuning the bending angle or calibrating the back gauge position, the module realizes smooth, lag-free, and error-free touch operation, ensuring that each bending action is accurately executed in accordance with the set parameters, greatly improving the qualification rate of sheet metal workpieces.
2. Industrial-Grade Durability – Built for Tough Metalworking Environments
Sheet metal workshops are often in harsh working conditions with continuous vibration, large temperature fluctuations, and frequent contact with cutting fluids and metal debris, which puts severe tests on the durability of CNC control modules. Our touch with display module adopts a fully industrial-grade design: the surface uses 7H hardened tempered glass, which is resistant to scratches from metal debris, impact from heavy objects, and corrosion from cutting fluids and lubricants; the internal core components (touch chip, display driver, and circuit board) are selected from high-quality industrial-grade materials, and have passed strict high and low temperature cycling tests (-25℃ to 75℃), vibration tests (IP6X vibration resistance level), and long-term continuous operation tests. The module has passed 1,000,000 times of touch durability testing, ensuring stable operation 24/7 for more than 5 years in sheet metal workshops, reducing equipment downtime and maintenance costs for enterprises.
3. EMI & ESD Protection – Stable Operation in High-Interference Areas
Sheet metal workshops are equipped with a variety of high-power electrical equipment (such as CNC systems, hydraulic pumps, and frequency converters), which generate strong electromagnetic interference (EMI) and static electricity (ESD) during operation. These interferences can easily cause false touches, parameter drift, or even system crashes of ordinary touch display modules, seriously affecting the stability of CNC bending control. Our module adopts a multi-layer anti-interference design: it is equipped with a full-shielded metal case, anti-EMI conductive film, and optimized signal filtering algorithm, with ESD protection level up to ±8kV contact and ±15kV air. Even in complex high-interference environments, the module can maintain stable touch performance and clear display effects, ensuring the continuous and reliable operation of the CNC bending control system.
4. IP65 Waterproof & Dustproof – Perfect for Metalworking Workshops
Metalworking workshops are filled with metal debris, dust, and oil stains, and cutting fluids and cooling water are often splashed during the bending process. These pollutants can easily enter the internal components of the control module, causing short circuits, component damage, and display screen blurring. Our touch with display module meets the IP65 protection standard, with a fully sealed edge design, waterproof connectors, and a dust-proof panel surface. It can effectively prevent metal debris, dust, oil stains, and water splashes from entering the module, ensuring that the touch function and display effect remain normal even in harsh polluted environments. This design not only extends the service life of the module but also reduces the frequency of cleaning and maintenance, saving manpower and material resources for enterprises.

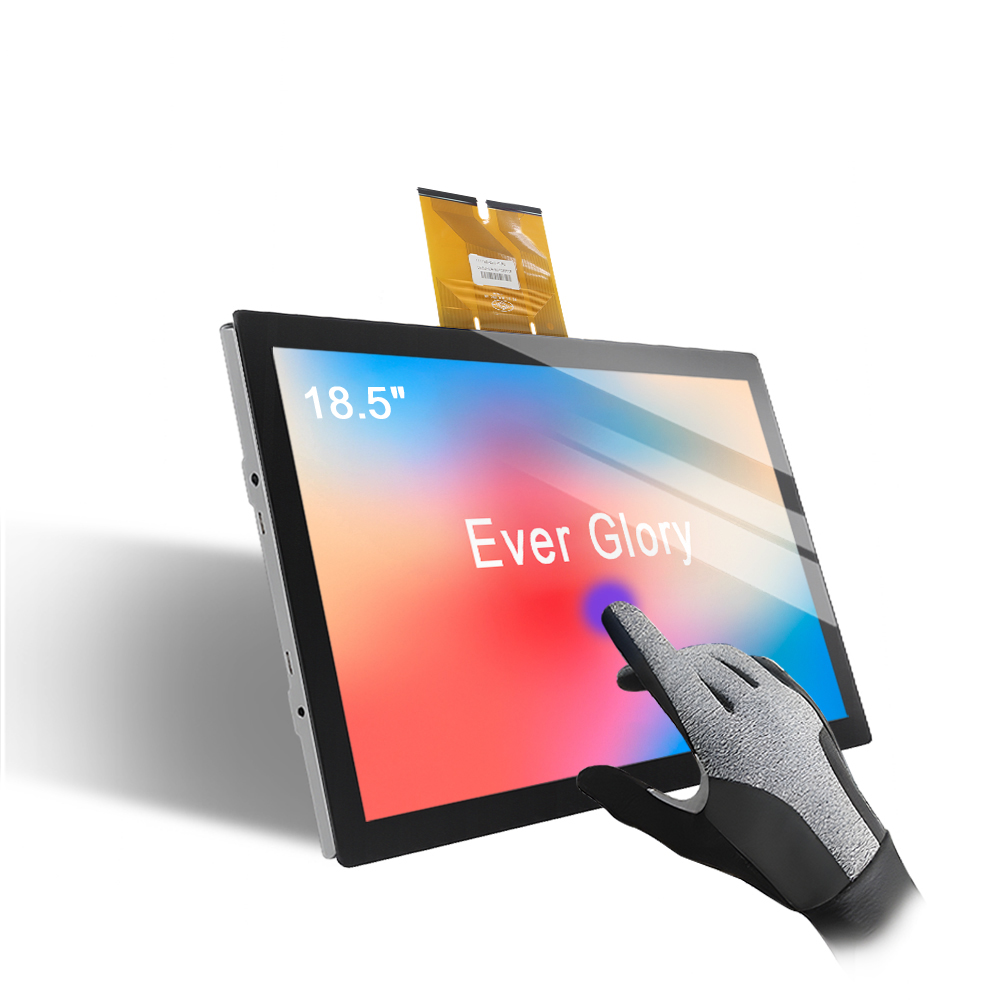

5. Works with Gloves & Wet Hands – Reliable for Real-World Industrial Use
In actual sheet metal bending operations, operators must wear anti-cut gloves to prevent hand injuries, and their hands are often wet due to contact with cutting fluids or cleaning equipment. Ordinary touch display modules cannot recognize touch signals through gloves or wet hands, forcing operators to repeatedly take off gloves or dry their hands, which not only reduces work efficiency but also poses potential safety hazards (such as accidental contact with machine moving parts). Our module is specially optimized for this scenario, supporting touch operation with gloves (compatible with anti-cut gloves with thickness ≤2mm) and wet hands. The module can accurately recognize touch signals even in these harsh conditions, allowing operators to complete parameter adjustment and operation control without taking off gloves, greatly improving on-site operation efficiency and ensuring operational safety.
6. Customizable Solutions – Designed for Bending Machine Automation
Different sheet metal bending machine manufacturers have different CNC system configurations, operation habits, and automation requirements. Our 10.1’’/15.6’’/18.5’’ touch with display module provides flexible customizable solutions to fully match the needs of bending machine automation:
-
Hardware Customization: Supports customization of screen size (10.1’’/15.6’’/18.5’’ optional), touch sensitivity, display brightness (adjustable according to workshop lighting conditions), and interface layout, adapting to different installation spaces and operation scenarios of bending machines.
-
Software & System Compatibility: Compatible with mainstream sheet metal machine CNC systems (such as Trumpf, Amada, Bystronic, and domestic CNC systems) and bending automation software. We can customize the display interface, touch gesture, and parameter input logic according to customers’ CNC control requirements, realizing seamless linkage with the bending machine’s automatic feeding, positioning, and bending systems.
-
Function Expansion: Supports the addition of special functions such as workpiece parameter storage, bending process traceability, and fault alarm display, helping enterprises realize intelligent management and automation upgrading of sheet metal bending production.
Product Advantages & Customer Value Summary
Compared with ordinary touch display modules, our 10.1’’/15.6’’/18.5’’ touch with display module is customized for CNC controls of sheet metal machines, with obvious competitive advantages: high-precision touch for accurate bending, industrial-grade durability for long-term stable operation, strong anti-interference performance for reliable control, IP65 protection for harsh environments, glove/wet hand operation for on-site convenience, and customizable solutions for automation adaptation. By adopting this integrated module, enterprises can not only improve the bending accuracy and production efficiency of sheet metal machines but also reduce workpiece scrapping rates, equipment downtime, and maintenance costs, enhancing their core competitiveness in the sheet metal processing industry.
About Our Company
With 15 years of experience in the touch screen manufacturing industry, we have been deeply engaged in the R&D, production, and supply of industrial-grade touch control and display integrated solutions. Our products cover a variety of sizes and types, and have passed international certifications such as ISO9001, CE, FCC, and RoHS. They are widely used in CNC controls of sheet metal machines, laser cutting machines, industrial robots, and other fields. We adhere to the concept of “customer-centric, quality first”, and provide customers with one-stop services including product customization, technical support, on-site debugging, and after-sales maintenance. No matter what kind of CNC control requirements your sheet metal bending machine has, we can provide you with the most suitable touch with display integrated solution to help your enterprise achieve sheet metal processing automation and intelligence upgrading.
