12.1-Inch Outdoor High-Brightness Touch Display Module

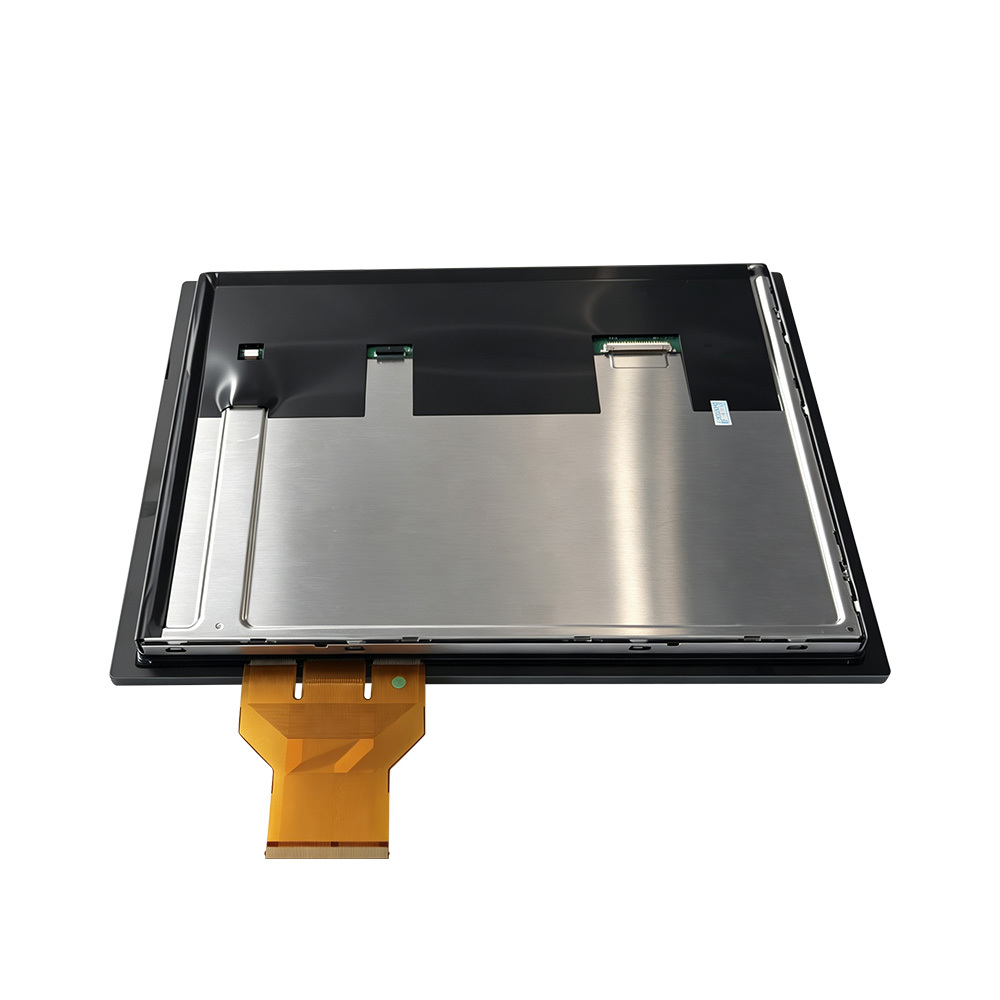

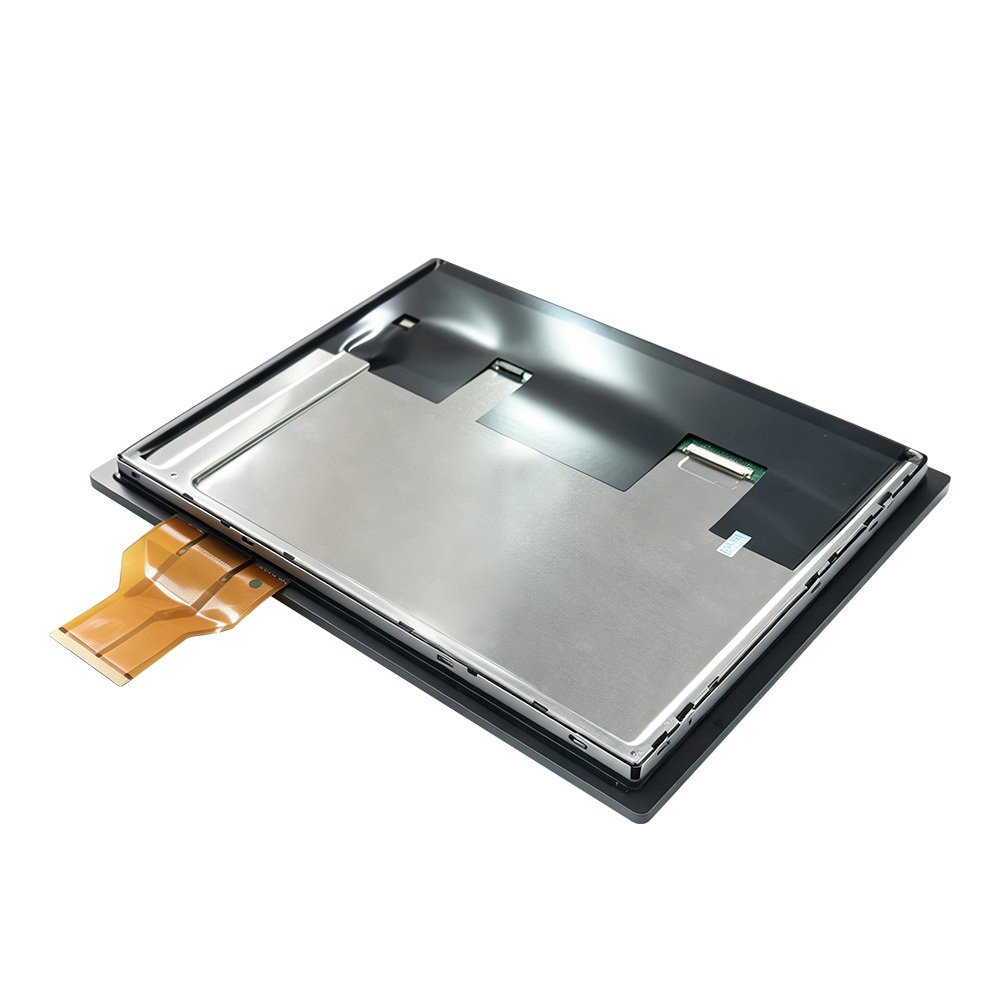

This 12.1-inch 4:3 product is an outdoor-oriented capacitive touch display module with LCD. It integrates a high-brightness TFT LCD, LED backlight, projected capacitive touch panel and full optical bonding structure. The module is developed for equipment exposed to strong ambient light, including EV charging stations, parking terminals, outdoor kiosks, ticketing machines and outdoor industrial controls.
Outdoor Touch Display Module at a Glance
Clear Product Boundary
This product includes the LCD and backlight. It is a touch display module with LCD, not a pure capacitive touch panel and not a standalone touch sensor.
Why Is This Module Designed for Outdoor Equipment?
High Ambient-Light Readability
Outdoor equipment can receive substantially more ambient light than indoor industrial equipment. A high-brightness LCD provides the backlight output required for the project’s defined viewing environment.
Reduced Internal Reflection
Full optical bonding removes the air gap between the touch panel and LCD. This reduces internal interface reflection and helps preserve image contrast in bright environments.
Reduced Touch Parallax
Bonding places the touch surface visually closer to the LCD image, improving the perceived accuracy of buttons, menus and numerical controls.
Outdoor Cover-Glass Options
Cover-glass dimensions, border printing, transparent windows and project-specific AG, AR or AF treatments can be configured for the equipment design.
Equipment-Level Front Sealing
The cover glass can be designed for integration with a sealed front bezel. The final IP rating depends on the gasket, enclosure, installation and complete-device verification.
Outdoor Touch Tuning
Glove operation, water handling, false-touch suppression and noise filtering can be evaluated against the selected touch controller and actual equipment environment.
Typical Outdoor Applications
EV Charging Stations
Customer challenge Sunlight reflection, temperature rise inside the charger, wet operation and electrical noise from power electronics.
Module solution High-brightness LCD and full optical bonding support outdoor readability. Cover glass, controller tuning and interface design can be matched to the charger enclosure.
Project verification Required luminance, thermal conditions, water behavior, grounding, ESD and EMC must be tested in the assembled charger.
Parking and Access-Control Terminals
Customer challenge Variable daylight, repeated public operation, rain exposure and limited installation space.
Module solution The 12.1-inch 4:3 format provides space for instructions, status information and control buttons without requiring a widescreen enclosure.
Project verification Front sealing, impact requirement, viewing angle and enclosure tolerance should be defined before tooling.
Outdoor Self-Service Kiosks
Customer challenge Strong ambient light, continuous daily operation and customized front-panel printing or openings.
Module solution High-brightness display, optical bonding and customized cover glass support information kiosks, check-in equipment and public-service terminals.
Project verification Backlight lifetime, brightness-control strategy, UV exposure, operating temperature and vandal-resistance targets.
Outdoor Ticketing Machines
Customer challenge Small interface elements must remain visible and responsive across different daylight and weather conditions.
Module solution Reduced parallax supports selection of smaller controls, while the 4:3 display suits menu-based ticketing and payment interfaces.
Project verification Touch coordinates, wet-touch behavior, payment-system interference and system-level ESD.
Outdoor Industrial Controls
Customer challenge The display must show alarms, parameters and machine status near motors, inverters or switching power supplies.
Module solution The 4:3 layout supports vertically dense control interfaces. Controller firmware and grounding can be optimized for the installed system.
Project verification Electrical-noise sources, grounding path, shielding and complete machine EMC testing.
Outdoor Transport Information Equipment
Customer challenge Timetables, instructions and equipment status must remain readable under changing daylight.
Module solution High-brightness LCD and optical bonding improve visibility in sheltered outdoor stations and transport terminals.
Project verification Required viewing distance, luminance, temperature, UV exposure, condensation and enclosure protection.
Outdoor Configuration Parameters
| Parameter | Status | Specification or engineering requirement |
|---|---|---|
| Product entity | Confirmed | Outdoor-oriented capacitive touch display module with LCD |
| Display size | Confirmed | 12.1 inches |
| Aspect ratio | Confirmed | 4:3 |
| Touch technology | Confirmed | Projected capacitive touch |
| LCD and backlight | Included | High-brightness TFT LCD with LED backlight |
| Bonding method | Confirmed | Full optical bonding between touch panel and LCD |
| Post-bonding brightness | Project-defined | Measured in cd/m² and confirmed according to the required outdoor viewing environment |
| Resolution and display interface | Project-defined | Matched to the selected LCD and customer host board |
| Operating temperature | Project-defined | Defined from ambient temperature, enclosure temperature and solar-loading conditions |
| Surface treatment | Optional | AG, AR or AF selected according to glare and cleaning needs |
| Glove and water operation | Optional tuning | Dependent on controller, cover-glass thickness and firmware |
| Front protection | Enclosure-defined | Final IP rating depends on cover glass, gasket, enclosure and complete-device assembly |
| UV resistance | Project-defined | Defined according to exposure time and outdoor installation |
| ESD and EMC | System-verified | Evaluated with the final power supply, housing, grounding and connected equipment |
High Brightness Does Not Alone Define an Outdoor Display
A reliable outdoor touch display must be configured as a complete optical, thermal, mechanical and electrical system. Before sampling, the following project inputs should be confirmed:
- Direct sunlight or sheltered outdoor installation
- Required post-bonding brightness in cd/m²
- Minimum and maximum ambient temperature
- Estimated temperature inside the enclosure
- Required AG, AR, AF or UV-resistant treatment
- Glove type and wet-touch requirements
- Front-panel IP and impact-resistance target
- LCD and touch interfaces
- Grounding and major electrical-noise sources
- Expected product lifetime and annual demand
Choose the Correct Outdoor Touch Product
This Product: Outdoor Touch Display Module With LCD
Choose this product when the project requires the touch panel, high-brightness LCD, backlight and full optical bonding to be supplied as one integrated module.
View more capacitive touch display modules with LCD .
Alternative: Outdoor Touch Panel Without LCD
Choose a touch panel without LCD when the customer already has an approved display and only requires the cover glass, capacitive sensor, FPC and controller.
Outdoor Display Engineering Resources
Outdoor Touch Display FAQ
Is this module designed mainly for outdoor use?
Yes. Its primary target is outdoor and semi-outdoor equipment requiring a high-brightness LCD and full optical bonding. The final configuration must still be matched to the actual sunlight, temperature and enclosure.
Does the module include an LCD?
Yes. It includes a 12.1-inch 4:3 TFT LCD, LED backlight, projected capacitive touch panel and full optical bonding structure.
Is it readable in direct sunlight?
Direct-sunlight readability depends on the measured post-bonding luminance, reflection, AR treatment, viewing angle and installation direction. These parameters must be confirmed for each project.
Is the touch display waterproof?
The module alone does not represent a complete waterproof product. Front-panel protection is achieved through the cover-glass, gasket, enclosure and assembly design, followed by complete-device IP testing.
Can it support gloves or operation with water on the surface?
Glove and water performance can be evaluated through controller selection and firmware tuning. The glove material, thickness, water condition and cover-glass thickness must be defined before validation.
What information is required for an outdoor module quotation?
Provide the required brightness, installation environment, temperature range, cover-glass drawing, display interface, touch interface, IP target, glove or water requirements and expected annual volume.
Start an Outdoor Touch Display Evaluation
Send your equipment drawing, required post-bonding brightness, sunlight conditions, temperature range, IP target, touch interface, display interface and annual demand. Our engineering team can review the optical bonding, thermal, mechanical and touch configuration.
Request Outdoor Specifications, Drawings or Samples
