PROJECTED CAPACITIVE TOUCH PANEL · WITHOUT LCD
15.6 Inch 16:9 Custom PCAP Touch Panel
The EG-15.6-302-1609V1 is a 15.6-inch projected capacitive touch panel engineered for industrial HMI, self-service terminal, medical equipment and enclosed outdoor-device integration. It is supplied as a custom capacitive touch panel without LCD, consisting of cover glass, capacitive touch sensor, bonding material and FPC. Customers evaluating other sizes can also review Ever Glory's 7 to 15.6-inch capacitive touch panel range.
Product Scope: What Is Included?
Included in This Touch Panel

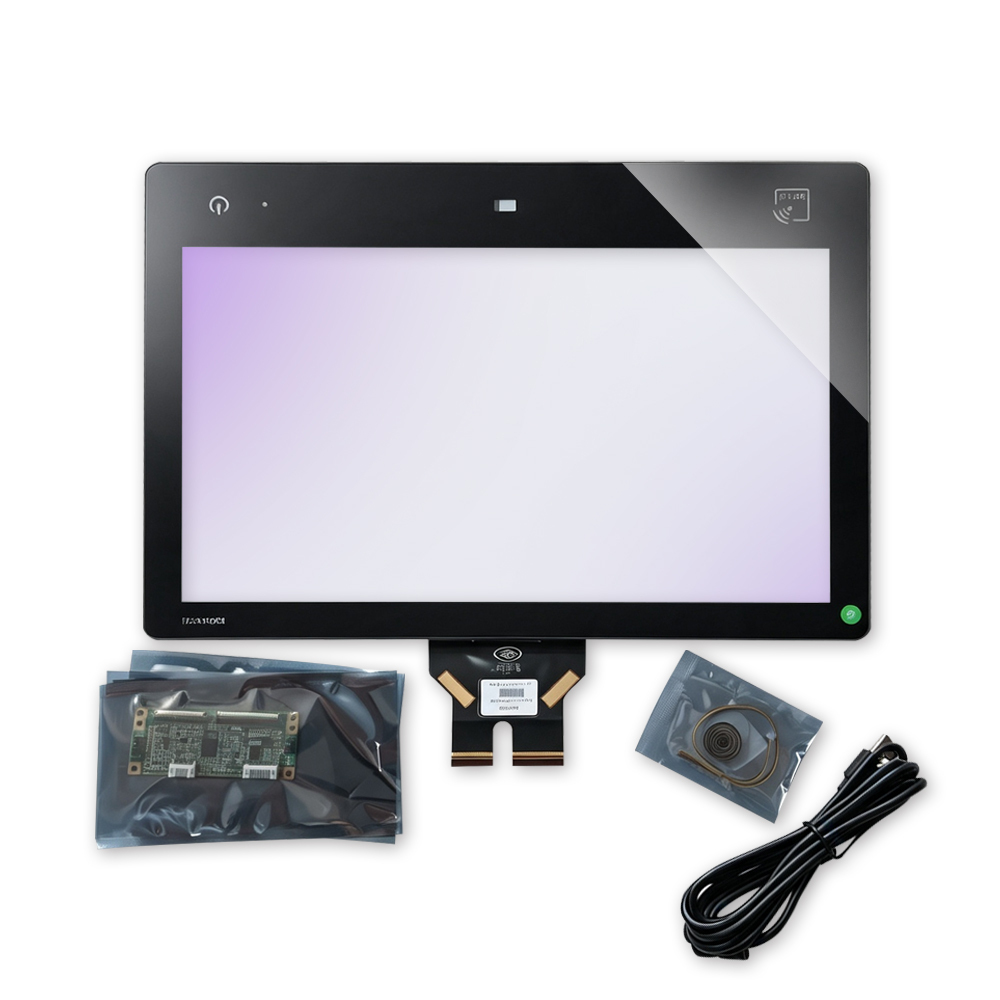

- Customized cover glass
- Projected capacitive touch sensor
- OCA or project-defined bonding material
- Customized FPC and connector
- Touch controller configuration when specified
- Optional USB controller kit based on the project design
Not Included
- No TFT or LCD display panel
- No LCD backlight
- No display driver board
- No HDMI, LVDS, MIPI or eDP image interface
- No image-display function as a standalone component
Technical Specifications and Project Options
| Product model | EG-15.6-302-1609V1 |
|---|---|
| Product entity | Projected capacitive touch panel without LCD |
| Nominal size | 15.6 inches |
| Aspect ratio | 16:9 |
| Touch technology | Projected capacitive touch, PCAP |
| LCD integration | No LCD is integrated or supplied with this product |
| Standard construction | Cover glass + touch sensor + bonding layer + FPC |
| Cover glass customization | Outline, thickness, corner radius, holes, edge treatment, black border, logo, icons and transparent windows |
| Surface-treatment options | AG, AF or AR treatment subject to optical, durability and application requirements |
| FPC and connector | FPC length, outlet position, pin definition and connector are confirmed during DFM |
| Host interface | Native FPC interface or USB through an optional controller; final interface is project-defined |
| Touch points and controller | Selected according to sensor size, host interface, operating system and interference environment |
| Operating temperature | Defined and verified according to the customer’s equipment operating profile |
| ESD/EMC requirements | Project-specific component and complete-system verification; final performance depends on enclosure, grounding, power supply and display noise |
| Minimum order quantity | From 50 pieces, subject to customized BOM, tooling and controller configuration |
| Business model | ODM/OEM engineering, sampling and long-term production supply |
Custom Engineering for Equipment Integration
Ever Glory provides OEM/ODM touch panel engineering support based on the customer’s enclosure, display, controller, operating system and environmental requirements.
Mechanical Customization

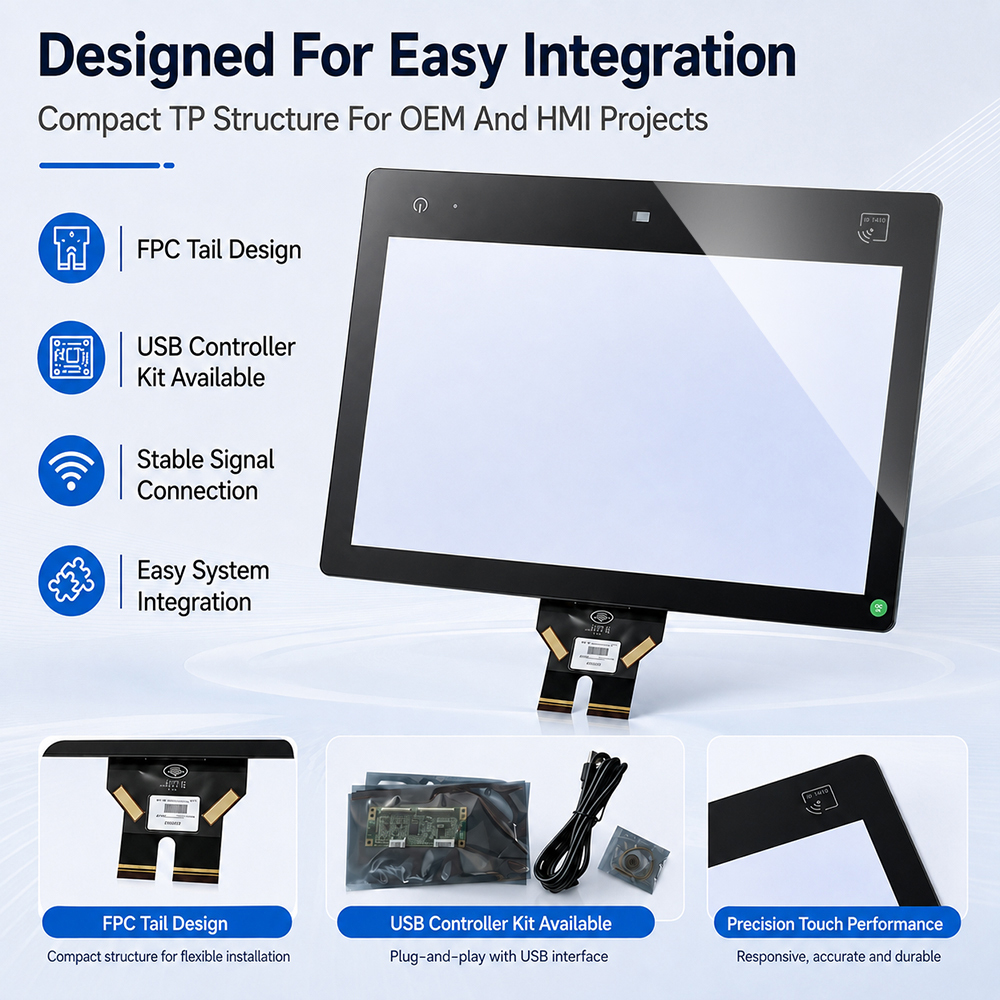

- Cover-glass outline and thickness
- Viewing and sensing-area alignment
- Hole, notch and edge dimensions
- FPC outlet position and bending space
- Housing tolerance and assembly-gap review
Optical and Surface Options
- Black border and custom printing
- Logo, icon and LED window design
- AG treatment for glare management
- AF treatment for easier surface cleaning
- AR options for defined optical requirements
Electrical Integration
- Touch-controller selection
- FPC pinout and connector customization
- Optional USB controller configuration
- Firmware tuning for the installed environment
- Host-system compatibility validation
Display, Enclosure and EMC Integration
Although this touch panel does not contain an LCD, its touch performance can be affected by the customer's display, switching power supply, metal enclosure, grounding path, motor or other high-power equipment. Controller selection and firmware tuning should therefore be evaluated in the actual equipment environment.
Engineering teams can review our EMC design guide for industrial capacitive touch screens and the troubleshooting guide for random clicks and false touches caused by equipment interference .
Typical Equipment Applications
Industrial HMI
Customized mechanical dimensions, FPC routing and controller tuning for control panels, automation equipment and industrial terminals.
Self-Service Terminals
Cover-glass printing, customized openings and project-defined surface treatments for kiosks, check-in terminals and information systems.
Medical Equipment
Component-level customization for medical-equipment integration. Suitability, cleaning compatibility and regulatory compliance must be verified by the complete-device manufacturer.
Enclosed Outdoor Equipment
Optical, structural, environmental and touch-performance requirements are defined according to the enclosure and actual outdoor operating conditions.
Panel PCs and Monitors
Touch-panel integration for customer-supplied LCDs, embedded computers, industrial monitors and custom front bezels.
Specialized Equipment
ODM development for equipment requiring customized cover glass, connector position, controller firmware or low-volume project validation.
Related Engineering Resources
Related Capacitive Touch Panel Sizes
Touch Panel Without LCD or Display Module With LCD?
Choose This 15.6-Inch Touch Panel When:
- You already have a selected LCD
- You require a customized touch sensor and cover glass
- You will complete the display integration in your equipment
- You need customized FPC, connector or touch-controller options
Need a Complete Touch Display Assembly?
If the project requires an integrated LCD, backlight and capacitive touch panel, review our capacitive touch display modules with LCD or the industrial touch display solution .
15.6-Inch Capacitive Touch Panel FAQ
Does this 15.6-inch touch panel include an LCD?
No. EG-15.6-302-1609V1 is a projected capacitive touch panel without LCD. It does not contain a TFT panel, backlight or display driver.
Can the cover glass and FPC be customized?
Yes. The cover-glass outline, thickness, printing, holes, icons, FPC position, FPC length, connector and pin definition can be reviewed during DFM.
What is the MOQ for a customized project?
MOQ starts from 50 pieces. The final requirement depends on tooling, customized materials, controller configuration and the approved BOM.
Does it support USB and multiple operating systems?
An optional USB controller can be configured. The final interface, controller, touch-point configuration and operating-system compatibility are confirmed during project evaluation and sample testing.
Can this touch panel be used in medical equipment?
It can be customized as a component for medical-equipment integration. This does not constitute medical-device certification. The customer is responsible for complete-device validation and applicable regulatory compliance.
How are ESD, EMC and environmental requirements confirmed?
Requirements are defined according to the actual enclosure, display, grounding, power supply and operating environment. Final system-level verification should be completed in the customer’s assembled equipment.
Start a 15.6-Inch Custom Touch Panel Evaluation
Send your LCD drawing, equipment opening dimensions, cover-glass requirements, FPC position, host interface, operating environment and annual demand. Our engineering team can review DFM feasibility, controller selection, drawing requirements and sample configuration.
Request DFM Review, Drawing Support or Samples
