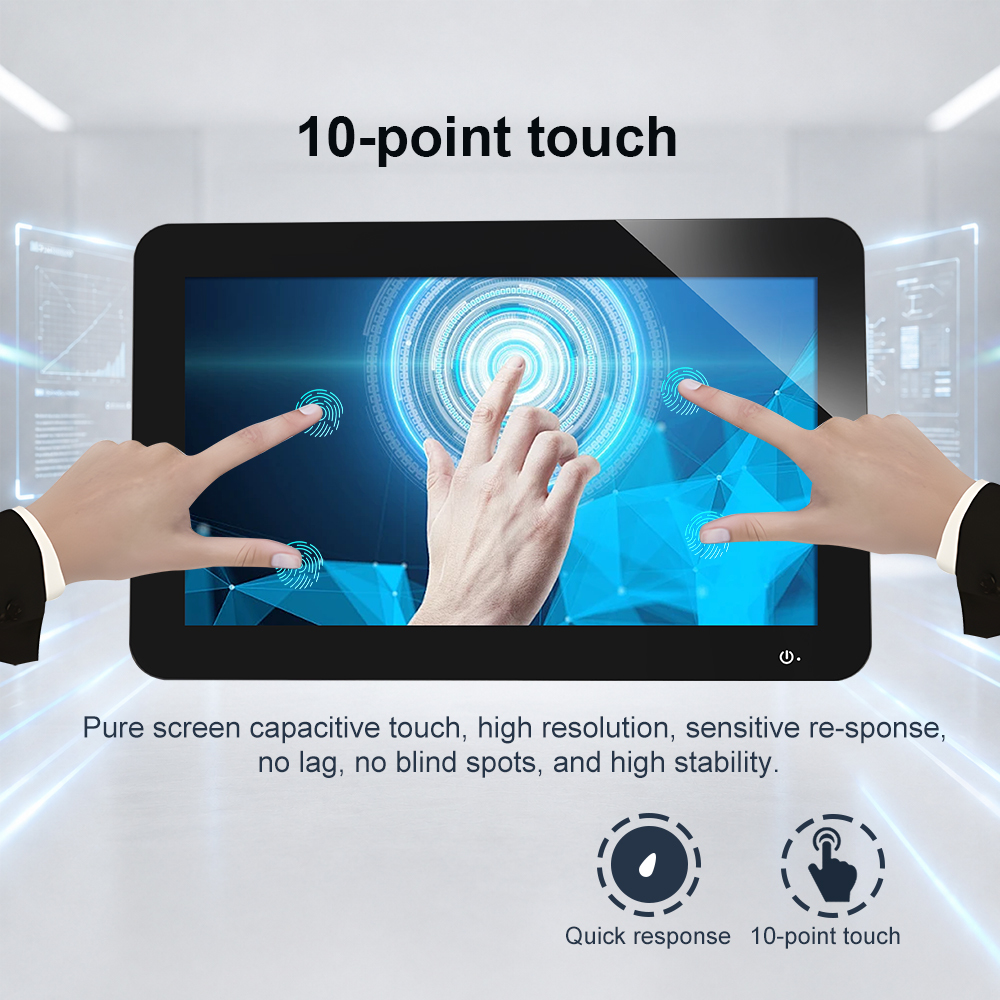

21.5-Inch 16:9 Custom Capacitive Touch Display Module
This product is a 21.5-inch 16:9 capacitive touch display module with LCD. It integrates a projected capacitive touch panel, TFT LCD and LED backlight for fixed-mounted equipment requiring a large interactive display area. The widescreen format is particularly suitable for industrial dashboards, self-service terminals, interactive wayfinding, medical equipment interfaces, building controls and public information systems.
21.5-Inch Touch Display Module at a Glance
What Applications Are Best Suited to a 21.5-Inch 16:9 Display?

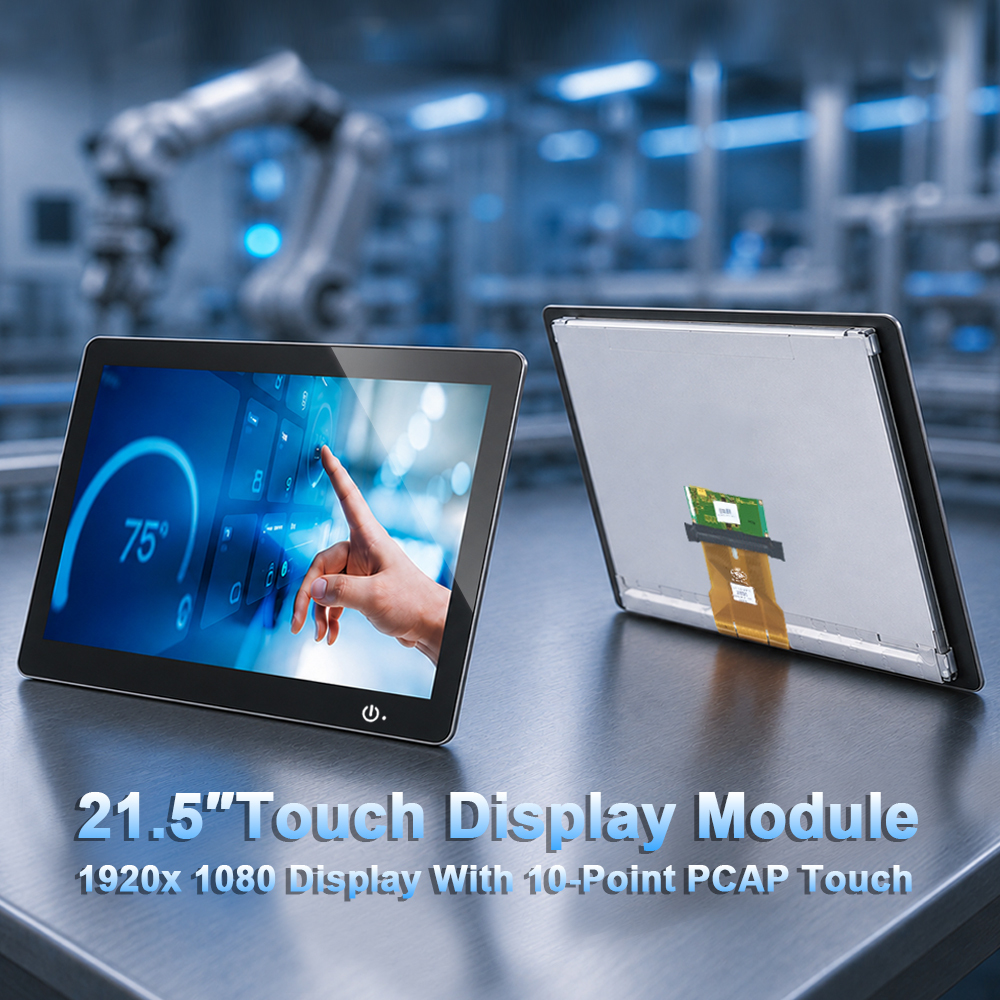

Production-Line Operator Consoles
Customer need: display process status, alarms, machine controls, charts and production data on one screen.
Why 21.5-inch 16:9 fits: the wide display area supports dashboards, split-screen controls and multiple information zones without frequent page switching.
Project verification: enclosure flatness, mounting pressure, grounding, display noise and complete-system EMC.

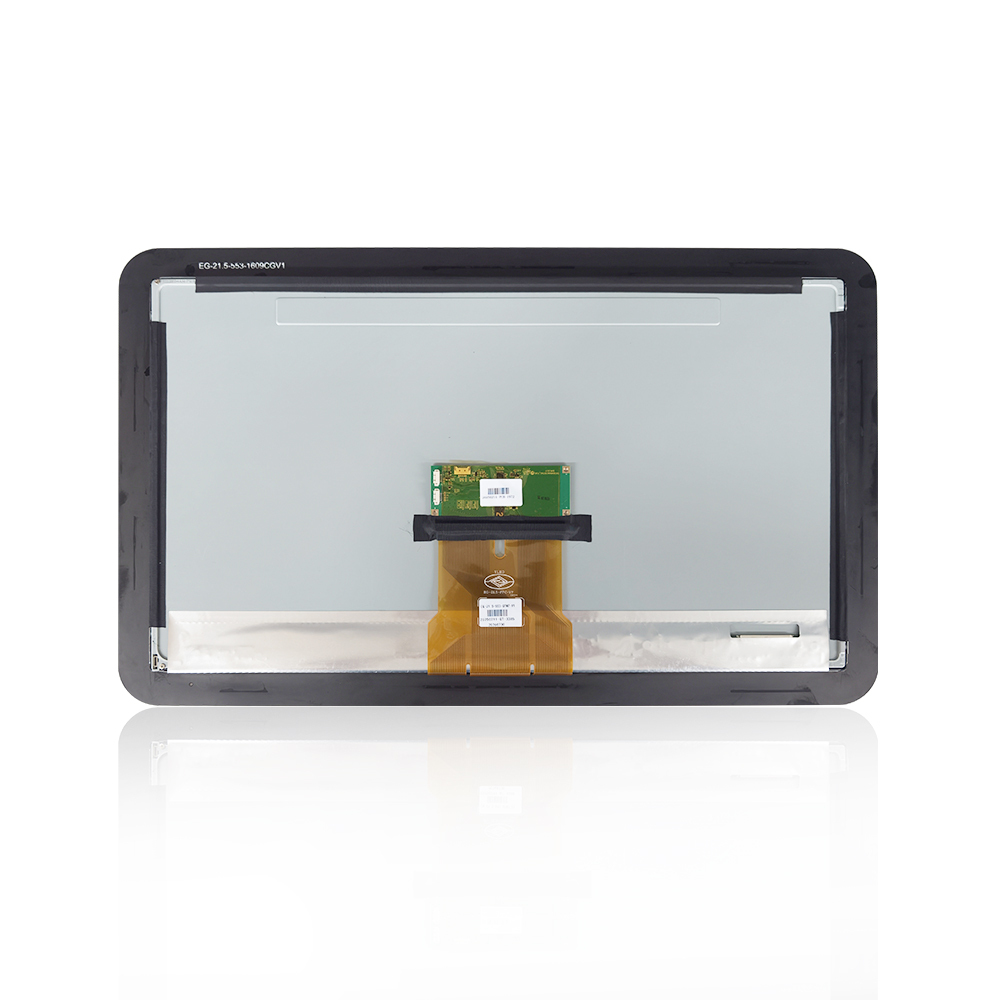

Ordering, Check-In and Ticketing Kiosks
Customer need: show product options, instructions, order details and large touch controls to different users.
Why 21.5-inch 16:9 fits: the screen provides enough space for visual navigation, multilingual instructions and transaction workflows.
Project verification: cover-glass printing, touch-interface compatibility, front sealing and equipment-level ESD.

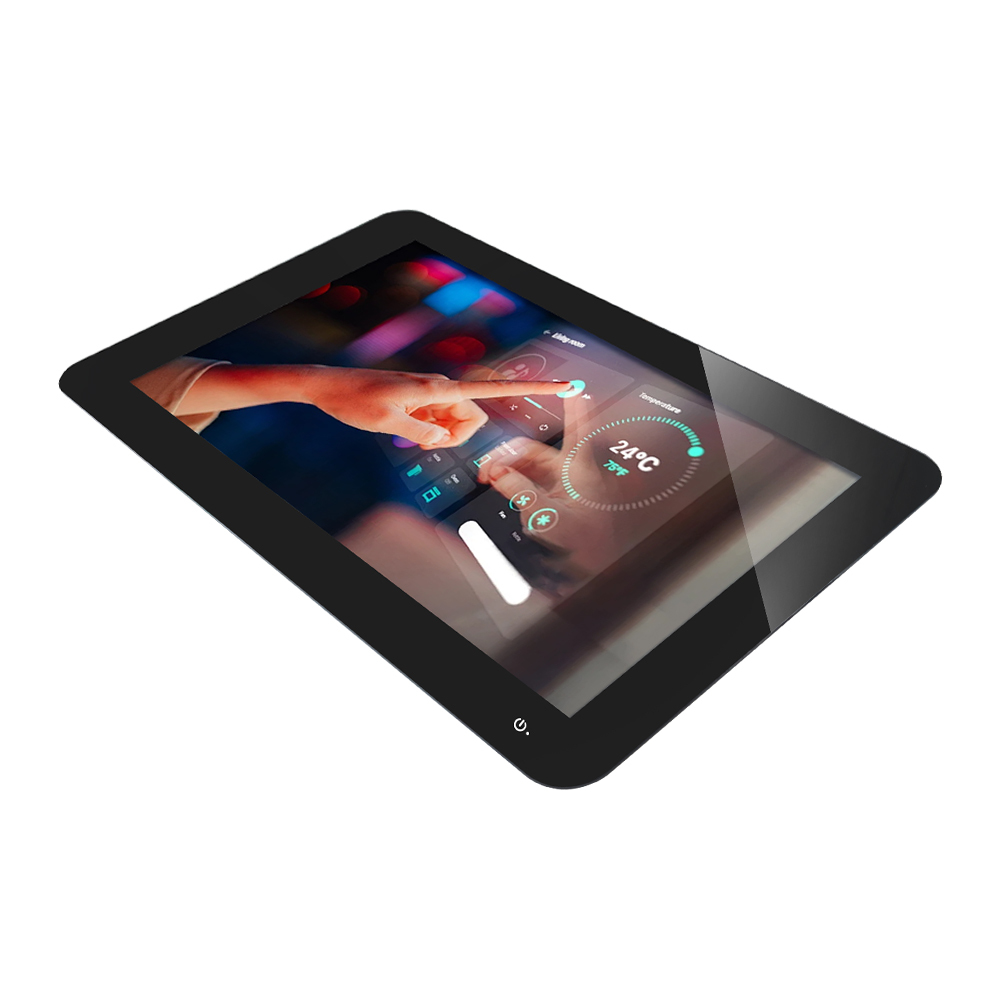

Interactive Maps and Visitor Information
Customer need: present maps, routes, building directories and multimedia information on a shared public terminal.
Why 21.5-inch 16:9 fits: the widescreen format provides a larger map area and room for navigation controls, location details and accessibility information.
Project verification: viewing distance, mounting orientation, brightness, surface reflection and continuous operation.
Medical Equipment User Interfaces
Customer need: display equipment status, waveforms, parameters and control menus in a clearly structured interface.
Why 21.5-inch 16:9 fits: the wide format supports multiple information panels and larger controls for equipment operation.
Project verification: cleaning-agent compatibility, EMC, electrical safety and complete-device regulatory requirements.
Security and Facility-Control Terminals
Customer need: combine floor plans, equipment status, alarms and control functions in one operator interface.
Why 21.5-inch 16:9 fits: the screen supports multi-zone dashboards for access control, energy management and building systems.
Project verification: host interface, mounting, long-term LCD availability and system-level touch tuning.
Retail, Museum and Public Information Displays
Customer need: combine images, video, instructions and interactive product or exhibit information.
Why 21.5-inch 16:9 fits: the widescreen ratio matches common multimedia layouts while retaining sufficient space for touch navigation.
Project verification: brightness, viewing angle, surface treatment, operating hours and enclosure ventilation.
Technical Specifications and Project Options
| Product type | Custom capacitive touch display module with LCD |
|---|---|
| Display size | 21.5 inches |
| Aspect ratio | 16:9 widescreen |
| Display technology | TFT LCD with LED backlight |
| Touch technology | Projected capacitive touch |
| Native resolution | Defined by the selected 21.5-inch LCD specification |
| Brightness | Project-defined according to indoor, high-ambient-light or outdoor installation requirements |
| Bonding method | Air bonding or full optical bonding, project-defined |
| Display interface | Selected according to the LCD and customer host board |
| Touch interface | Controller-native interface or USB configuration, subject to system compatibility |
| Cover-glass customization | Outline, thickness, printing, logo, icons, holes, transparent windows and edge treatment |
| Surface-treatment options | AG, AR or AF according to application requirements |
| Operating temperature | Defined by the approved LCD, backlight and controller BOM |
| Front protection | Designed with the equipment enclosure; final IP rating requires complete-device testing |
| Medical application boundary | Component for medical-equipment integration; not a standalone certified medical device |
| Customization model | ODM/OEM DFM, sampling and controlled mass production |
What Must Be Considered When Integrating a 21.5-Inch Touch Module?
Mounting Flatness and Bezel Pressure
Large cover glass requires controlled enclosure flatness, gasket compression and mounting pressure. Uneven stress may affect bonding, appearance or touch performance.
LCD and Backlight Noise
The larger LCD, backlight driver, metal enclosure and power supply can introduce electrical noise. Grounding and firmware should be checked in the assembled equipment.
Optical Bonding Selection
Full optical bonding can reduce internal reflection and parallax. The decision should consider brightness, viewing environment, structural requirements, cost and service strategy.
Thermal Management
Brightness, backlight power, continuous operating time and enclosure ventilation affect internal temperature and LCD lifetime.
Transport and Structural Protection
Large glass and LCD assemblies require defined packaging, FPC protection and mechanical support during transport and installation.
Long-Term BOM Control
LCD model, touch controller, connector, firmware and optical materials should be recorded in the approved BOM for repeat production.
Can This 21.5-Inch Module Be Used Outdoors?
An outdoor or semi-outdoor configuration can be developed, but outdoor suitability is not determined by display size alone. The project must define:
- Required post-bonding brightness in cd/m²
- Direct sunlight or sheltered installation
- Minimum and maximum ambient temperature
- Enclosure temperature and heat dissipation
- AG, AR, AF and UV-resistance requirements
- Glove and wet-touch behavior
- Front IP and impact-resistance targets
- System-level ESD and EMC conditions
Touch Display Module With LCD or Touch Panel Without LCD?
This Product: Touch Display Module With LCD
Select this product when the project requires the capacitive touch panel, TFT LCD and LED backlight to be supplied as one integrated module.
Alternative: Capacitive Touch Panel Without LCD
Select a touch panel without LCD when the customer already has an approved 21.5-inch display and only requires cover glass, touch sensor, FPC and controller.
Browse capacitive touch panels without LCD .
Related Engineering Resources
21.5-Inch Touch Display Module FAQ
Does this 21.5-inch module include an LCD?
Yes. It includes a 21.5-inch TFT LCD, LED backlight and projected capacitive touch panel.
Why choose a 21.5-inch 16:9 touch display?
The 21.5-inch widescreen format is suitable for dashboards, split-screen controls, maps, instructions, multimedia content and large interactive controls in fixed-mounted equipment.
Is the resolution Full HD?
The native resolution depends on the selected LCD model. The exact resolution must be confirmed in the approved product specification rather than inferred from the display size.
Can the cover glass and interfaces be customized?
Yes. Cover-glass dimensions, printing, holes, surface treatment, display interface, touch interface, FPC and connectors can be customized after DFM review.
Can full optical bonding be provided?
Full optical bonding can be evaluated according to the viewing environment, brightness, structural design and reliability requirements.
Can this module be integrated into medical equipment?
Yes, as an equipment component. This does not mean the module is a standalone certified medical device. Complete-device compliance remains the equipment manufacturer’s responsibility.
Start a 21.5-Inch Touch Display Module Project
Send your enclosure drawing, required resolution, brightness, display interface, touch interface, mounting orientation, surface treatment, operating environment and annual demand for DFM and sample evaluation.
