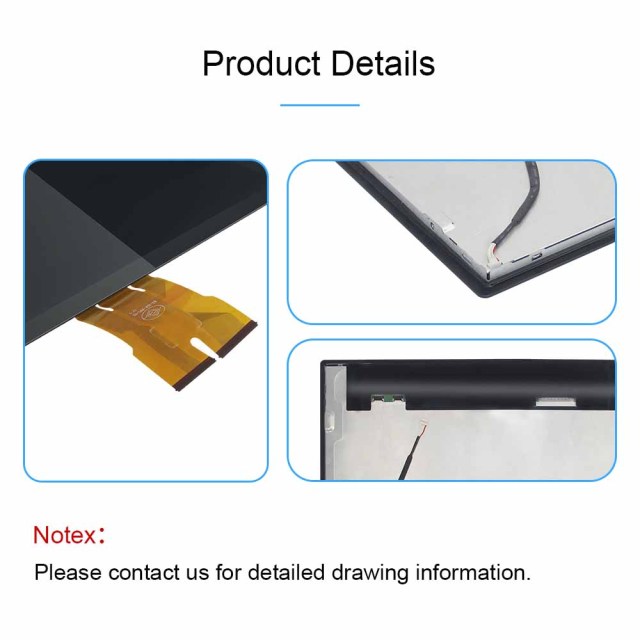

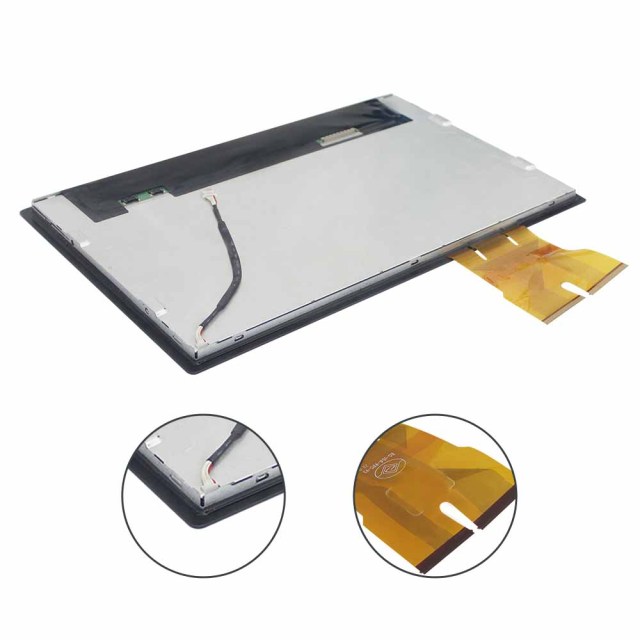

This 15.6-inch capacitive touch screen display adopts a full lamination (Full Lamination) process, effectively reducing optical reflection and air gap interference, thereby improving display clarity and touch stability.
The front surface achieves an IK10 impact protection rating, providing excellent resistance to shock and scratches. It is also treated with an anti-glare (AG) coating, which significantly reduces reflection interference under strong lighting conditions.
Overall, the design is optimized for complex industrial application environments, enhancing device reliability and extending long-term service life.
| Touch Type | PCAP |
| Touch Points | 10 touch points |
| Response Time | ≤25ms |
| Glass Thickness | 2.9mm |
| Cover surface hardness | ≥6H |
| Ink adhesion | ≥4B |
| Impact resistance | ≥IK07 |
| Controller Interface | USB Typ. |
| Controller Supply Voltage | USB 5V Typ. |
| Touch Report Rate | ≥100Hz |
For outdoor applications, high brightness is essential. However, to reduce costs, many solutions still use standard-brightness displays. These screens are nearly unreadable under sunlight. In addition, they typically use conventional glass without AG/AR coatings, which leads to severe reflection, glare, and a washed-out (whitish) appearance under strong light. Moreover, the use of non-UV-resistant materials results in backlight degradation and panel yellowing over time, significantly shortening the product lifespan.
In contrast, our 15.6-inch touch display module is purpose-built for outdoor environments. It features a robust G+G structure and a high-brightness LCD panel exceeding 1000 nits, ensuring excellent visibility even under direct sunlight. The surface is treated with AG/AR coatings to effectively minimize reflections and enhance readability. Combined with UV-resistant materials, the display maintains long-term stability—preventing yellowing and backlight degradation—even in harsh outdoor conditions. This ensures reliable operation for over 5 years while significantly reducing maintenance costs.
Industrial-grade wide-temperature touch controller IC ensures stable performance without drift.
This product adopts an industrial-grade wide-temperature touch controller IC, supporting an operating range of -20°C to 70°C. It ensures stable performance even in extreme environments—no system freezing or touch failure under high summer temperatures, and no slow startup or unresponsive touch in cold winter conditions.
