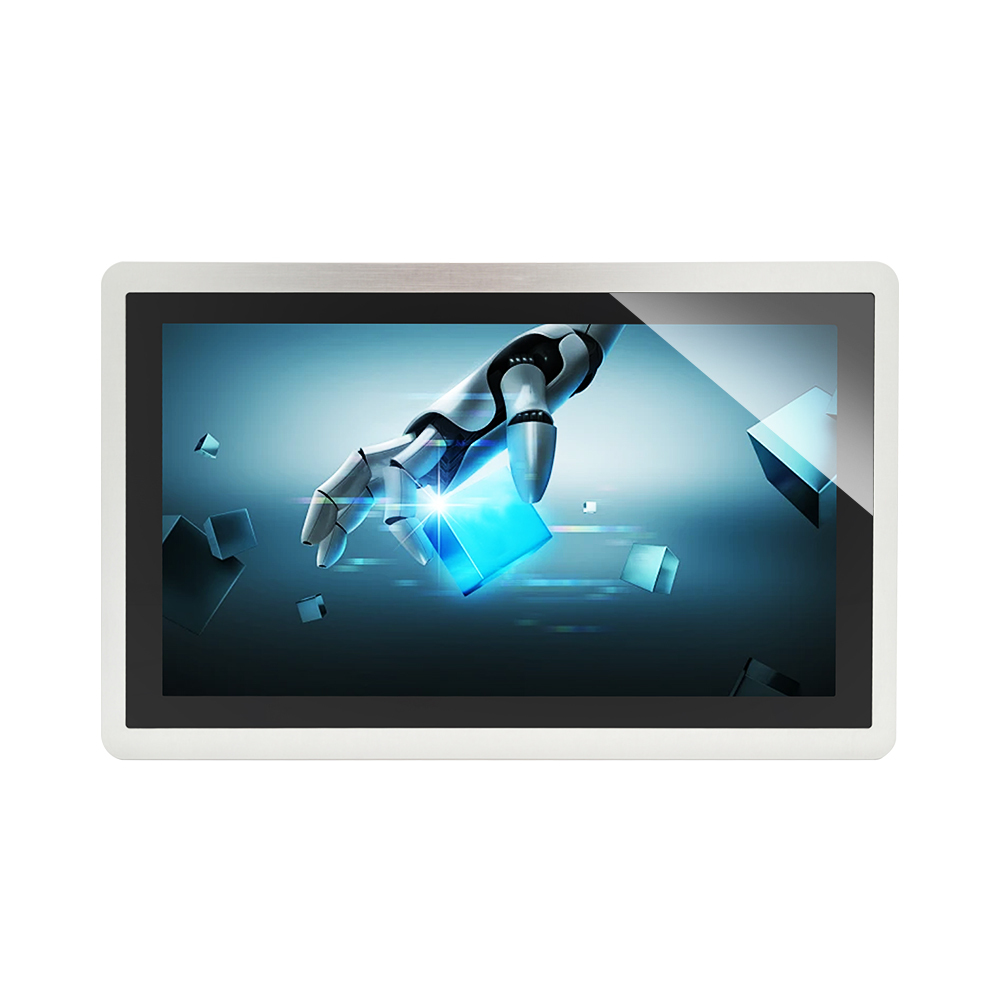

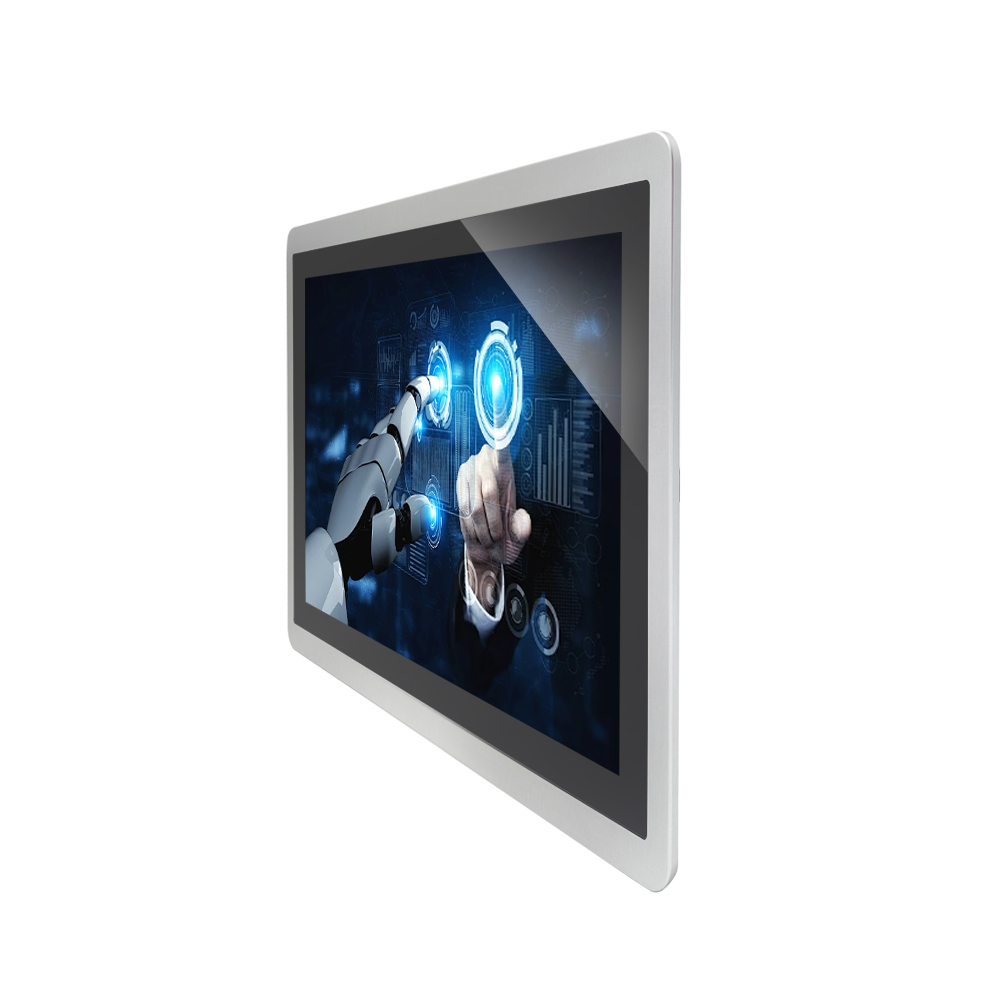

Capacitive touch LCD display module designed for embedded control equipment, industrial panels, smart devices and indoor HMI systems. Ever Glory supports OEM/ODM customization for cover glass, touch sensor, LCD specification, FPC layout, interface matching and bonding structure.
A capacitive touch LCD display module brings the touch sensor, cover glass, LCD and connection tail together as one matched assembly. Instead of sourcing a display and a separate touch panel and then aligning them in production, your team receives a single unit built around the enclosure, host board and front-panel design of the equipment. The module is intended for embedded control, industrial panels, smart devices and indoor HMI systems, where the display is part of the machine rather than a stand-alone monitor.

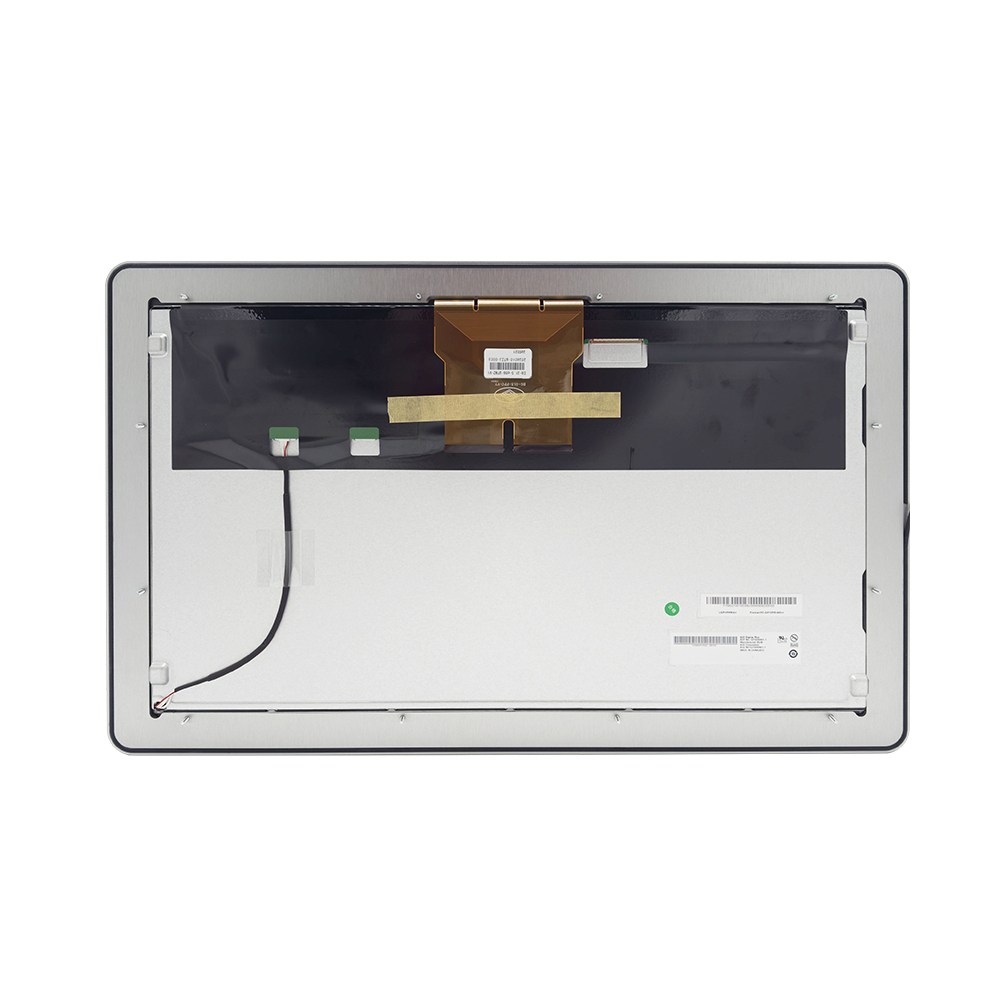

The flat display stack is assembled with a projected capacitive sensor and a TFT LCD, with a flexible tail that carries the touch and display connections to the host board. Because the cover glass, FPC, touch controller IC, LCD specification and bonding method are all part of the same definition, changes to the front panel or the control board are handled through one module specification rather than several separate part numbers.
Typical work happens at design-in: the equipment maker supplies the housing outline, active-area target and interface details, and the module is configured to fit that space. From there the same definition is used for sample builds and production, keeping the touch response, display view and mechanical fit consistent as the equipment moves from prototype to serial manufacture.
| Product Name | Capacitive Touch LCD Display Module |
| Product Type | Capacitive Touch Display Module |
| Touch Technology | Projected capacitive touch |
| Display Type | TFT LCD |
| Screen Size | Customizable according to project requirement |
| Touch Points | Multi-touch support, depending on touch controller IC |
| Touch Interface | USB, I2C or UART, optional |
| Display Interface | RGB, LVDS, MIPI, HDMI or eDP, optional |
| Cover Glass | Tempered glass, customizable thickness, shape and printing |
| Bonding Method | Air bonding or optical bonding, optional |
| Surface Treatment | Clear, AG, AR or AF, optional |
| FPC Design | Custom length, connector position and pin definition |
| Application | Embedded control equipment, industrial panels, smart terminals and indoor HMI systems |
| Customization | Cover glass, LCD, touch IC, FPC, interface, structure and bonding method |
This is an integration module, not a finished touch monitor. It is built to sit inside your equipment, behind your front panel, and connect to your own control board; the enclosure, mounting, cable route and final product validation remain part of your equipment design. That distinction matters because a stand-alone monitor is bought as a closed product, while a custom touch LCD display module is defined around the mechanical opening, active area, connector position and view angle your product actually uses.
Compared with a touch panel on its own, the module also carries the LCD, cover glass, touch controller and connection tail as one matched stack. The equipment maker does not have to source a panel, a display and a bonding service separately, then resolve tolerance build-up between them. One module definition covers the full front-panel interface.
The custom route is usually chosen when a standard display cannot meet the housing shape, the control-board interface or the front-glass design. Working from the equipment drawing at the start lets the module, the enclosure and the production process be developed together, which reduces assembly rework and keeps the same touch and display behavior through sample builds and serial production.
| LCD Specification | Size, resolution, brightness, viewing angle and display interface can be selected according to project requirements. |
| Touch Panel | Projected capacitive touch sensor structure can be customized for different screen sizes and touch performance needs. |
| Cover Glass | Custom cover glass thickness, shape, edge design, silk printing, logo printing and surface treatment can be customized. |
| Touch Controller IC | Touch controller can be selected according to interface, sensitivity, multi-touch and application requirements. |
| FPC Design | FPC length, connector position, pin definition and routing direction can be customized for assembly needs. |
| Bonding Method | Air bonding and optical bonding are available depending on display clarity, structure and cost target. |
| Capacitive Touch Display Modules | Complete touch and LCD assemblies for embedded equipment |
| Industrial Grade Touch Display Modules | Modules for machine interfaces, control terminals and monitoring systems |
| Consumer Grade Touch Display Modules | Touch displays for smart devices, indoor terminals and light commercial products |
| Custom Capacitive Touch Panels | Touch panels only, where the LCD or housing is supplied separately |
| Outdoor Grade Touch Display Modules | Modules configured for sunlight readability, water exposure or wide temperature ranges |
| Medical Grade Touch Display Modules | Touch displays for medical equipment fronts and sheltered clinical devices |
| Capacitive Touch Screen Technology Explained | How projected capacitive sensing works and what it means for touch response |
| Capacitive Touch Controller IC Explained | How controller choice affects interface, sensitivity and multi-touch |
| Touch Screen Driver and Firmware Tuning Guide | What to tune when integrating touch with a host system |
| Optical Bonding Process | OCA, SCA and OCR methods and where each is used |
| DITO & SITO ITO Sensor Process | How sensor patterning affects touch performance |
| Reliability Testing & Inspection | How touch modules are checked before production release |
Indoor scope, stated plainly
This capacitive touch LCD display module is specified for indoor use. The custom cover glass, touch controller and bonding method are defined per project, and an indoor configuration has not been validated for rain, standing water, hose-down cleaning, direct sun or freezing nights. Setting that boundary at the start is better than discovering it during field service.
What changes for an exposed front
When the enclosure faces weather, the review starts with light: a brighter backlight and an anti-glare finish are usually needed before an operator can read the screen in open daylight, and optical bonding is often chosen because it removes the air gap that otherwise holds reflections and moisture between the glass and the display. Surface treatment is the next decision — a hydrophobic, oleophobic finish makes water bead and run off instead of sheeting across the touch surface, which is what causes false touches and drifting coordinates on a wet screen. The tail entry, connector, gasket and bezel joint then come under review, because water usually reaches a module through the opening the FPC passes through rather than through the glass itself. The enclosure shares the load: a slight downward tilt, a drainage path and a rain shield above the front do more for long-term reliability than any single part of the stack.
What to send with the drawing
Tell us the operating temperature range the equipment must hold, the cleaning agents used on the front, the impact and scratch expectation, and roughly how many hours a day the panel sits in direct sun. With those answers we confirm glass thickness, surface hardness, bonding method and touch controller settings on the drawing before a sample is built. If the conditions turn out to be beyond what this indoor module is meant for, we will say so and quote an outdoor grade module from our range rather than push this one past its limits.
Choosing the right touch module for a new enclosure is usually a joint exercise, so our engineers work directly with your design team from the first drawing. Send us your mechanical outline, interface and operating environment and we will match a configuration from our range, confirm tolerances and share drawings for review before tooling. When something behaves unexpectedly in the field, we help trace it — controller settings, calibration, sealing or assembly — and give installation and start-up guidance. With 15 years in the touch industry and our manufacturing base in Dongguan, support stays with the people who build the part.
It is one assembly that combines a projected capacitive touch panel, a TFT LCD, a cover glass, a touch controller and a flexible connection tail. The touch sensor and display are matched as a single capacitive touch LCD display module, so your production team integrates one front-panel unit instead of aligning separate parts.
Yes. Screen size, active area, outline and mechanical structure are defined around your enclosure and viewing requirement. The same drawing also sets the cover glass shape, FPC exit and connector position, so the size is not separated from the rest of the module.
No. It is a custom touch LCD display module built into your equipment, not a stand-alone monitor. You supply the housing, host board and product-level controls; the module supplies the touch and display front in a form that fits that design.
Yes. Touch interface, display interface, connector position and pin assignment are reviewed against your mainboard. As a custom manufacturer, we match the module definition to the board you are using, and we confirm the cable and connector details on the drawing before release.
Yes. Air bonding and optical bonding are both available. Air bonding keeps the structure simpler; optical bonding is chosen when the application needs better display clarity and reduced internal reflection. The choice is fixed in the module drawing because it changes the stack thickness and assembly process.
USB, I2C and UART are the usual touch interface options. The right one depends on your controller and firmware; tell us which interface your board supports and we will define the matching touch controller and connector.
RGB, LVDS, MIPI, HDMI and eDP are available according to the LCD and system platform. The display interface is selected together with resolution, brightness and viewing angle so the module matches the image content and the host board.
Yes. Custom cover glass can include thickness, shape, edge design, black border printing, logo printing and a clear, AG, AR or AF finish. The printing and finish are agreed on the glass drawing so the front panel matches your equipment.
Touch count is decided at the controller and firmware level, so the useful starting point is what the interface actually has to do. A parameter entry screen on a machine panel usually works comfortably with single-point input, while map browsing, chart zooming or image review on the same product benefits from two-finger pinch and rotate gestures. Where several people share one terminal — a queue kiosk or a service counter, for example — we ask whether two operators might touch the glass at the same moment, and design for that rather than assuming one finger at a time. It also matters whether the screen is used with gloves, in wet or dusty conditions, or with a palm resting on the glass that should be ignored while a fingertip is tracked. Each of those answers changes the sensor pattern and the tuning, not only the controller part number. After the sensor is built, we tune the reporting so coordinates stay accurate towards the edges of the active area and the response feels even from the centre to the corners. The final touch count and reporting format are confirmed against your host software during sample evaluation, so please share the gesture set your application needs when the project starts.
Yes. The cover glass, FPC, touch controller and LCD interface are developed around the drawing you supply. That OEM/ODM path is used when a standard module will not fit the housing, connector position or front-panel appearance.
This module family is built for indoor equipment. If the enclosure will face direct sun, rain, condensation or wide temperature swings, raise that at the start of the project so the cover glass, touch controller and bonding can be reviewed for the environment. An indoor module should not be treated as an outdoor unit without that review.
Tail changes are a normal part of the tooling, and the earlier the mechanical route is known, the fewer revisions you will see later. What helps most is the housing or front-panel drawing with the host connector marked, the connector type on your board (ZIF socket, board-to-board or solder pad) and the direction the tail must exit — downwards, to the side, or folded behind the display. From there we set a tail length with enough slack to assemble the unit without looping it where the housing can pinch it, add a stiffener or adhesive where the tail is anchored, and place the contact fingers to suit the insertion direction. Where the tail carries high-speed display signals, we also look at bend radius and whether shielding or impedance control is needed. Pin assignment follows your board definition, and we return a drawing showing length, exit point, stiffener position and pinout for your sign-off before tooling begins. Please also describe how the module is handled on your line — whether the operator plugs the tail in before or after the front panel is fixed — because that often decides the connector position more than the drawing does.
