The 12.1-inch outdoor touch module delivers ≥1000 cd/m² brightness and ≥1000:1 contrast for clear readability in direct sunlight. With -30°C to +85°C operation, UV-resistant glass, anti-fog coating, and reinforced vibration design, it ensures stable performance in harsh environments. Intelligent auto-brightness control, efficient thermal management, and industrial interfaces make it ideal for outdoor kiosks, EV chargers, smart transportation, and marine control systems.
Brightness: ≥1000 cd/m²
Contrast Ratio: ≥1000:1, enhancing text and image clarity under strong sunlight
Auto Brightness Control: Built-in ambient light sensor with automatic brightness adjustment for energy saving and extended backlight lifespan
Operating Temperature: -30°C to +85°C
Storage Temperature: -40°C to +90°C
Humidity: 5%–95% RH (non-condensing); anti-fog / hydrophobic coating required for high-humidity environments
UV Resistance: Panel / cover glass treated with UV-blocking coating; passed 3000+ hours QUV accelerated aging test to prevent yellowing, aging, and touch failure
Thermal Management: High-brightness backlight generates significant heat; requires metal back cover, heat sink fins, and thermal conductive materials to prevent backlight degradation and touch drift caused by overheating
Cover Glass: ≥2 mm tempered glass, surface hardness 7H–9H
Shock / Vibration Resistance: Complies with automotive / industrial vibration standards; reinforced solder joints and connectors
Backlight Lifetime: ≥50,000 hours
Interfaces: HDMI + USB + RS232/485, supporting long-distance transmission and industrial bus integration
Product Advantages
Structural Integrity and Design Innovation

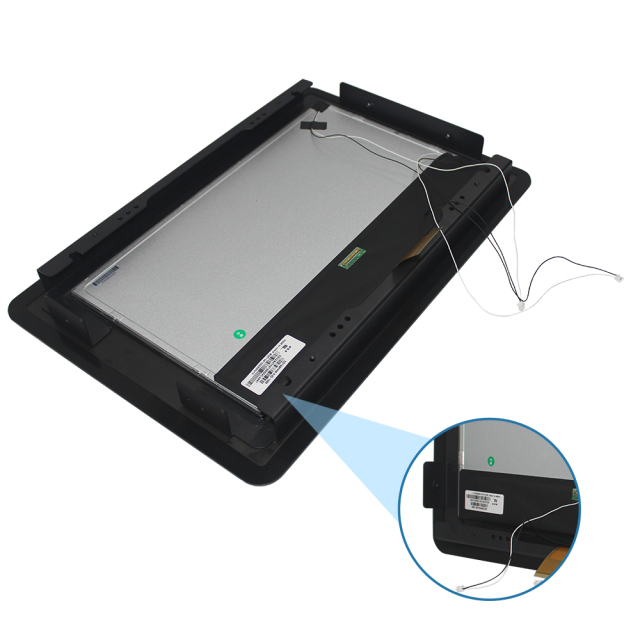

This capacitive touch screen monitor incorporates optical bonding to eliminate internal reflections, enhancing durability and display clarity crucial in outdoor industrial settings. The IP65 waterproof rating confirms protection against dust and water ingress, aligning with stringent industrial touch screen manufacturers’ standards for rugged equipment. The tempered glass cover, reinforced to 7H–9H hardness, provides physical resistance against impact and scratches. Modular interface options including HDMI and serial ports allow flexible integration with diverse systems, facilitating quick installation and maintenance. The design enables industrial environments to leverage high-performance touchscreens without compromising structural robustness.
Enhanced Performance and User Functionality

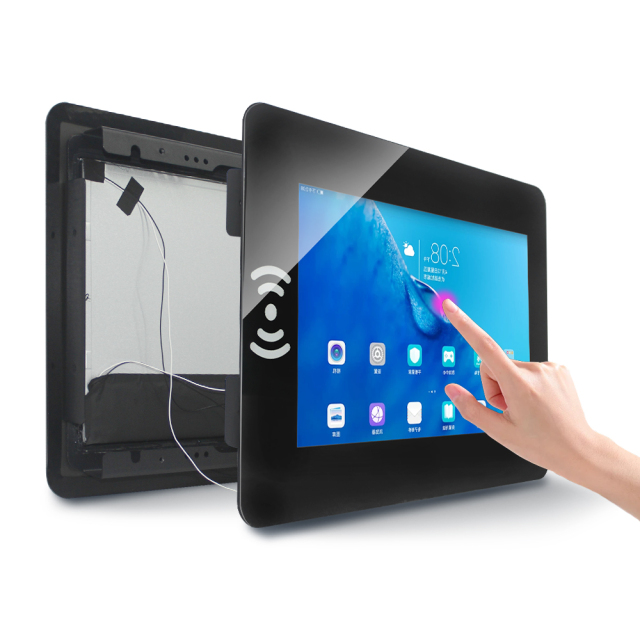

Our waterproof touch screen monitor combines precision 10-point capacitive touch input with real-time auto-brightness adjustment, enabling efficient use in variable lighting conditions. The high-brightness panel ensures operational clarity in direct sunlight, crucial for outdoor deployments where visibility impacts workflow efficiency. Extended operational temperature ranges and vibration resistance enhance uptime in industrial applications, reducing maintenance cycles. The device supports multitouch gestures facilitating advanced user interfaces, beneficial for industrial automation, transportation control, and kiosk solutions. By delivering stable, responsive performance, this solution meets end users’ demands for reliability and ease of integration.
Use Scenarios
Application in Outdoor Kiosks and EV Charging Stations
In public outdoor environments such as transportation hubs and EV charging stations, this waterproof touch screen monitor serves as a critical input/output interface. Designed to withstand exposure to rain, dust, and sunlight, the IP65-certified device provides consistent multi-touch accuracy needed for payment processing and user interaction. The high brightness and optical bonding prevent glare and reflections, crucial for 24/7 operation in various weather conditions. Connectivity through HDMI and serial ports allows integration with backend systems and payment terminals, facilitating smooth transactional workflows and operational consistency demanded by capacitive touch screen manufacturers specializing in outdoor equipment.
Deployment in Smart Transportation and Marine Control Panels
Industrial touch screen manufacturers can leverage this capacitive touch screen display in smart transportation dashboards and marine control environments, where durability and operational precision are vital. The device’s rugged design supports wide temperature ranges and vibration resistance, ensuring functionality on moving vehicles or marine vessels. The enhanced optical bonding and anti-fog coatings improve visibility under adverse conditions such as fog, salt spray, or sunlight reflection. Integrated interfaces enable seamless communication with vehicle or vessel control systems, allowing operators to monitor and manage real-time data efficiently. This solution supports critical control applications requiring reliability in challenging operational environments.
What touch technology does your display use and how many touch points does it support?

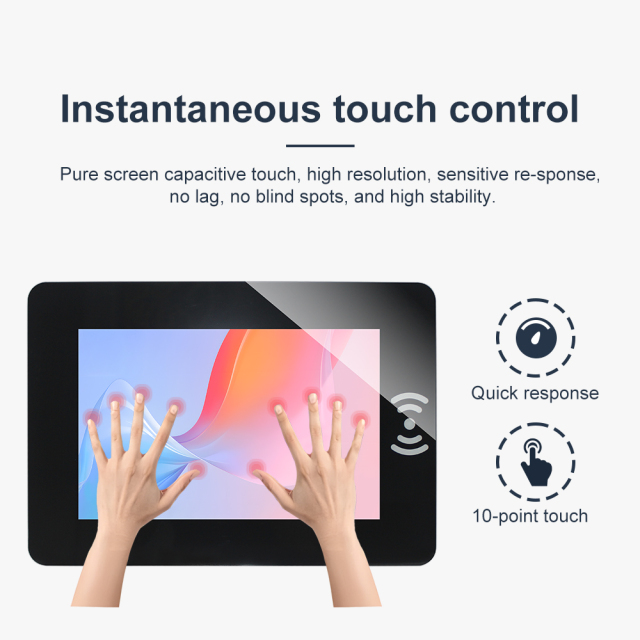

Our display uses advanced capacitive PCAP touch technology, supporting up to 10 touch points simultaneously. This multi-touch capability ensures precise input and reliable performance for demanding industrial applications where accurate touch response is critical. Our expertise as capacitive touch screen manufacturers guarantees consistent quality.
Can you customize the display to fit specific industrial requirements or environments?
Yes, we can tailor optical bonding and coating options to meet your environment's demands. Our facilities, representing top industrial touch screen manufacturers, allow us to adjust brightness, touch sensitivity, and interface configurations to ensure a waterproof, UV-resistant, and rugged solution that fits your project's exact specifications.
What interfaces does the display support for integration into existing systems?

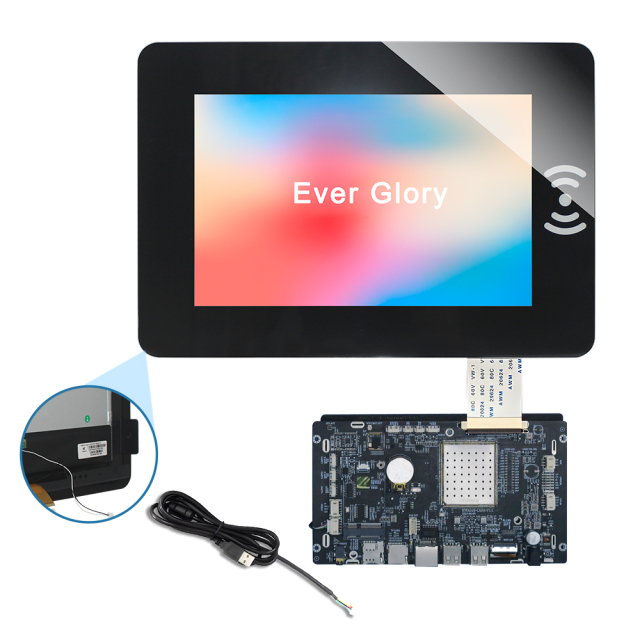

Our display is equipped with HDMI, USB, and RS232/485 interfaces to offer flexible integration options with various industrial control systems. This allows seamless connectivity for kiosks, EV charger panels, and smart transportation dashboards, facilitating reliable data transmission and control.
How do you ensure durability and maintenance ease for outdoor use in harsh conditions?
We build our units with ≥2 mm tempered glass of 7H–9H hardness, optical bonding, and an IP65 waterproof rating to resist dust and water. The anti-fog and UV-resistant coatings improve visibility and longevity. Our thermal management and auto-brightness control extend backlight life, reducing maintenance and downtime for your industrial touch screen monitors.
