The 32-inch industrial touch module features FHD resolution, 178° wide viewing angle, and 300–1000 cd/m² brightness, ensuring clear visibility in diverse lighting conditions. With 3–5 mm tempered glass, IP65 front protection, wide temperature support (-20°C to +70°C), and EN 61000-4-3 EMC compliance, it delivers reliable performance in harsh industrial environments. Flexible mounting, multi-OS compatibility, and customizable options make it ideal for automation control, smart manufacturing, and industrial HMI applications.
Viewing Angle: 178° ultra-wide viewing angle
Resolution: FHD (1920 × 1080)
Brightness: 300–1000 cd/m²
Cover Glass:3–5 mm tempered glass, surface hardness 6H–7H, scratch-resistant and impact-resistant
Protection Rating:Front panel IP65, dustproof and waterproof, suitable for cleanroom and humid environments
Wide Temperature Range:-20°C to +70°C
EMI/EMC Performance:Compliant with EN 61000-4-3, suitable for high electromagnetic interference industrial environments
Flexible Installation:Supports VESA wall mounting, embedded installation, open frame, and desktop mounting; supports both landscape and portrait orientation
System Compatibility:Compatible with Windows / Linux / Android; HID driver-free, easy and fast integration
Customization Options:High brightness, wide temperature range, anti-glare (AG), anti-fingerprint (AF), Metal Mesh, full optical bonding, and other custom configurations available
Maintenance-Friendly Design:True flat bezel-free design for easy cleaning; modular structure for convenient maintenance and replacement
Product Advantages
Robust Design with Flexible Integration Options
The module’s construction features a modular design that facilitates easy maintenance and replacement, minimizing downtime in critical operations. The true flat bezel-free panel not only improves cleaning efficiency but also maintains a sleek profile suitable for embedded industrial applications. Designed by an experienced lcd display panel manufacturer, it offers multiple mounting methods, encompassing VESA wall mounting, embedded, open frame, and desktop options, which allow engineers to adapt it precisely to application-specific constraints. The IOS/HID driver-free structure further enhances systems compatibility across embedded environments and diverse industrial operating systems.
Enhanced User Experience and High Operational Performance

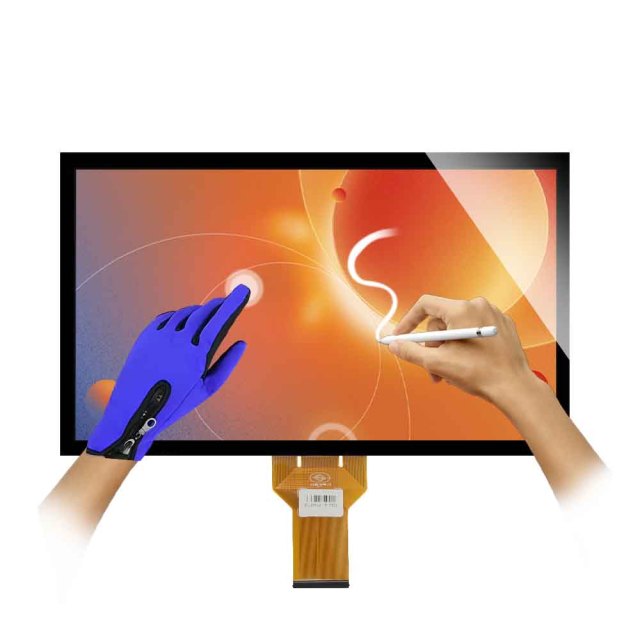

The capacitive touch screen panel ensures multi-touch responsiveness with high accuracy, crucial for automation and control system operators who require swift and precise command inputs. High brightness and wide viewing angles offer consistent readability in environments exposed to direct light or varying ambient conditions. Industrial users benefit from its IP65-rated front panel that prevents dust accumulation and water exposure damage, extending product lifecycle and decreasing maintenance frequency. The module’s support for Windows, Linux, and Android systems facilitates vendor-neutral software deployment, maximizing user value by minimizing integration barriers and supporting rapid system upgrades.
Use Scenarios
Industrial Automation Control Panels on Factory Floors
In manufacturing environments involving automated assembly lines or robotic controls, this capacitive touch screen panel serves as a critical human-machine interface component. It enables operators to execute commands, monitor system status, and adjust process parameters with high reliability despite exposure to dust, moisture, and temperature fluctuations. The front IP65 waterproof protection and tempered glass with high hardness rating ensure durability against industrial contaminants and mechanical impact. Integrated within factory control stations, the display optimizes real-time data visibility and user interaction, compliant with industrial standards, thus enhancing production efficiency and minimizing unplanned downtime.
HMI Interfaces for CNC and PLC Equipment
This industrial touch screen display is well-suited for CNC machines and programmable logic controllers (PLCs) in precision manufacturing sectors. It provides a robust user interface capable of withstanding vibration, temperature variation, and particulate environments common to metalworking and machining workshops. The large 32-inch format displays comprehensive system data clearly, improving operator situational awareness and enabling precise process control. Its compatibility with multiple operating systems and driver-free setup facilitates easy integration into existing control frameworks, aligning with industrial compliance standards and supporting complex automation workflows without extensive customization efforts.
FAQ
What customization options do you offer for your capacitive touch screen panels?
We provide multiple customization options, including anti-glare (AG), anti-fingerprint (AF) coatings, metal mesh, full optical bonding, and enhanced brightness or temperature range. As a professional touch screen manufacturer, we tailor our products to meet your specific industrial application needs.
What installation methods are supported for this industrial touch screen display?
Our display supports flexible mounting options such as VESA wall mounting, embedded installation, open frame, and desktop placement. Both landscape and portrait orientations are supported for versatile integration into your setup.
Can this LCD display panel operate reliably in harsh environments?
Yes, our 32-inch capacitive touch LCD panel features front IP65 protection for dust and water resistance and operates reliably between -20°C and +70°C. This durability suits demanding industrial and factory-floor applications.
Do your capacitive touch screen panels require additional drivers for compatibility?
Our products are compatible with Windows, Linux, and Android systems and are HID driver-free, enabling quick and easy integration into your environment without the need for extra software installation.
