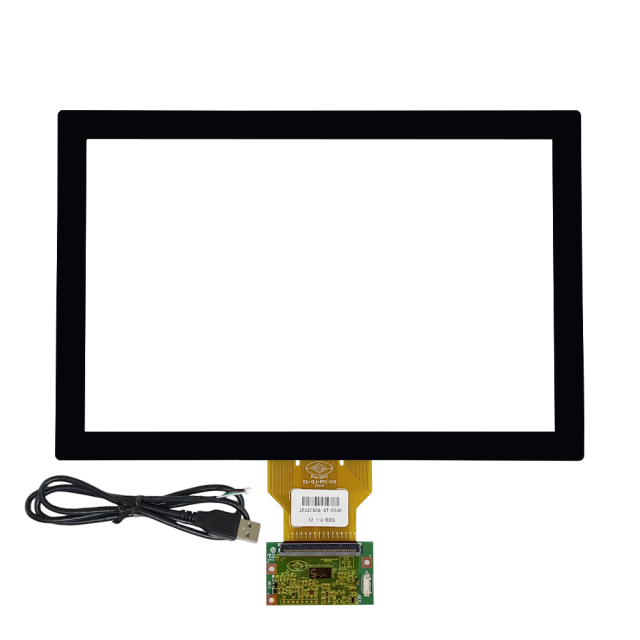

Core Technologies & Touch Features1.Supports 10/20/40-point true multi-touch, enabling perfect recognition of complex gestures such as zoom, rotation and swipe.
2.Ultra-fast response: touch response time < 10ms, scanning frequency up to 200Hz, delivering smooth, streak-free and drift-free writing performance.
3.Precise Recognition: Supports operation with fingers, thin gloves (≤1.4mm), and stylus pens, with a minimum recognized touch object diameter of >1.5mm.
4.Strong Anti-Interference: Resists strong light (sunlight / lamplight) and electromagnetic interference, ensuring stable and uninterrupted performance.
Large-Size High-Definition Resolution1.Standard size: 43" (16:9), with an effective display area of approximately 943 × 531 mm.
2.Mainstream resolutions: FHD (1920×1080) or 4K UHD (3840×2160).
3.High brightness: Commercial/industrial grade 350–500 cd/m², providing excellent visibility both indoors and outdoors.
Optical & Structural Advantages1.High Transmittance: >85%, delivering crystal-clear and transparent images.
2.Full Lamination Technology (OCR/LOCA): Eliminates air gaps, reduces reflection, enhances contrast, prevents fogging, and improves overall visual performance.
3.Surface Treatment: Optional AG (Anti-Glare), AR (Anti-Reflection), and AF (Anti-Fingerprint) coatings.
Rugged Hardware1.The surface is made of high-hardness tempered glass with a thickness of ≥3mm, reaching Mohs hardness 6H–7H, which is scratch-resistant, wear-resistant and impact-resistant.
2.Extra-long service life: ≥50 million error-free single-touch operations.
Industrial-Grade Protection1.Front panel achieves IP65 dustproof and waterproof rating, supports operation with wet hands.
2.Wide operating temperature range: standard -20℃ ~ 70℃, adapts to harsh environments.
3.Structure available in G+G (Glass + Glass) or G+F, stable and reliable.
Compatibility1.Plug & Play: Standard USB interface output, driver-free support for mainstream operating systems including Windows (7/8/10/11), Linux, Android and Mac OS.
2.Abundant Interfaces: Display supports HDMI, DVI, VGA and other input signals.
3.
Low Power Consumption: Typical operating current of the touch module <200mA at DC 5V.
FAQ
1.What gestures and touch operations does this 43-inch PCAP touchscreen support?
It supports 10/20/40-point true multi-touch and can accurately recognize complex gestures including zoom, rotation, swipe, drag and multi-user simultaneous operation.
2.Can the touchscreen work with gloves or under strong light?
Yes. It supports operation with thin gloves ≤1.4mm and is highly resistant to strong light (sunlight/lamplight) and electromagnetic interference, ensuring stable performance indoors and outdoors.
3.What protection level and durability does this product have?
The front panel reaches IP65 dustproof and waterproof rating. The surface uses ≥3mm tempered glass with 6H–7H Mohs hardness, and supports ≥50 million error-free single-touch operations.
4.What operating systems are compatible with this touchscreen?
With standard USB plug-and-play design, it supports driver-free use on Windows (7/8/10/11), Linux, Android and Mac OS.
5.What display interfaces and environmental conditions does it support?
It supports HDMI, DVI, VGA display inputs and operates reliably in a wide temperature range of -20℃ ~ 70℃, suitable for industrial and commercial harsh environments.
