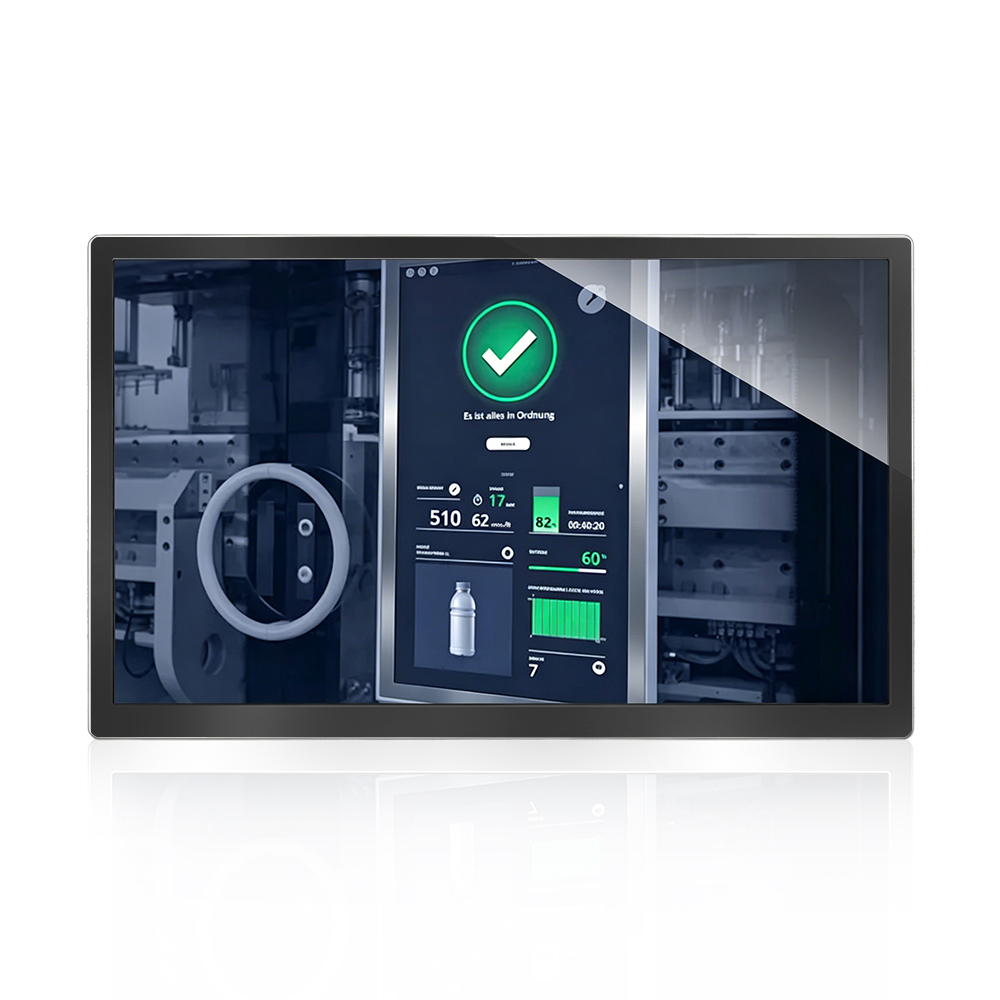

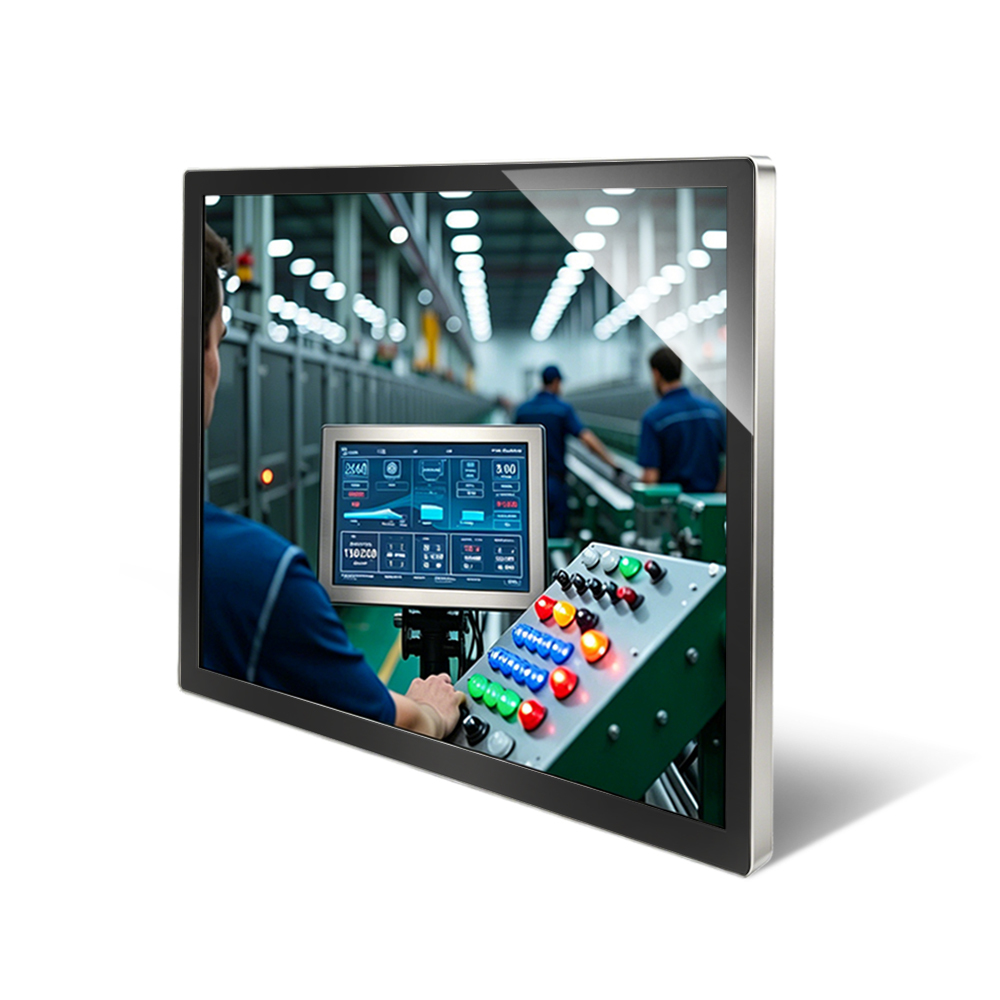

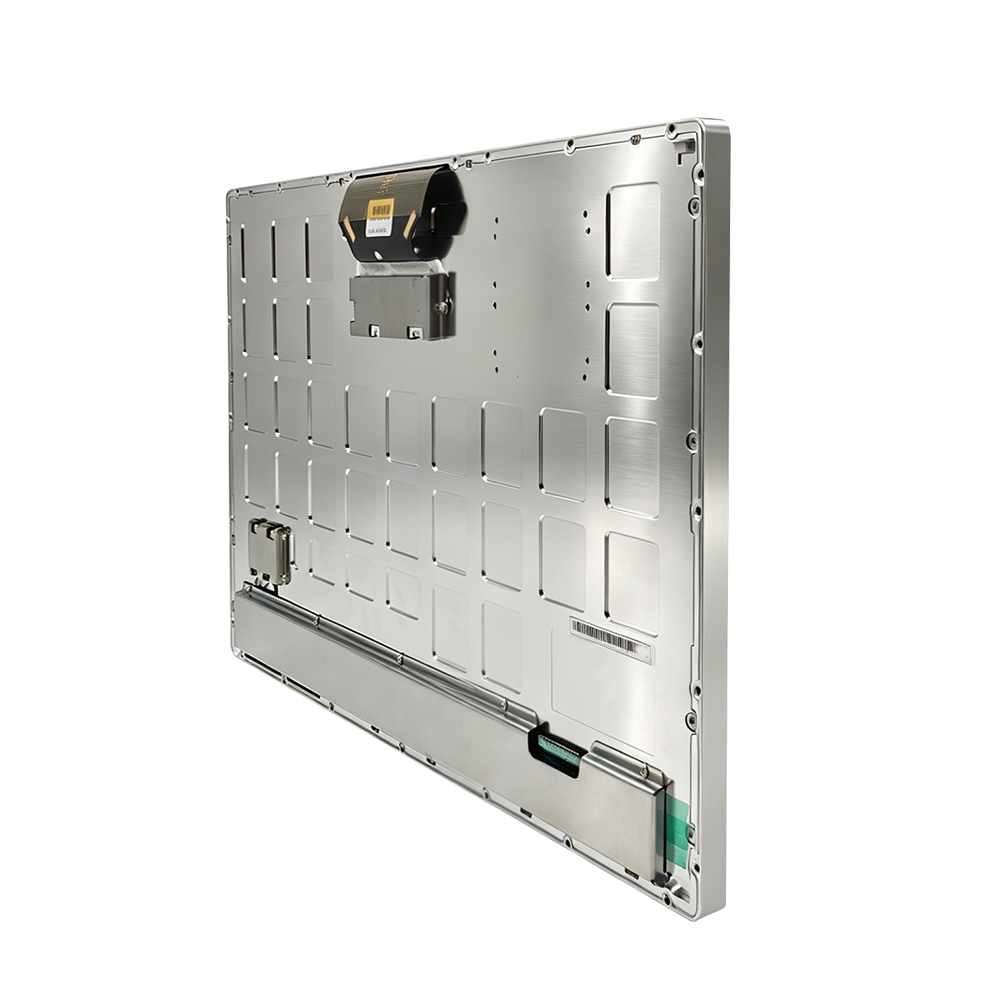

Name: 23.8 Inch Capacitive Multi-touch Display | Ever Glory
Brand: Ever Glory
Availability: InStock
Rating: 5 (1 reviews)

Description

Touch screens often suffer insufficient brightness and poor visibility under direct sunlight in outdoor scenarios. Water droplets on the screen or wet hands also cause unresponsive touch and random cursor jumps.

Specifications:

Cover surface hardness	≥6H
Ink adhesion	≥4B
Impact resistance	≥IK07
Support Touch Points	10 points Typ.
Controller Interface	USB Typ.
Controller Supply Voltage	USB 5V Typ.
Touch Report Rate	≥100Hz
Touch Response Time	≤25ms
Touch Linearity	±2mm
Display Supply Voltage	5 Typ.
BACKLIGHT Supply Voltage	16.1 Typ.
Display Power Consumption	20.7 Typ.
Transmittance	＞85%
Pixels H×V	1920(x3) x 1080
Pixel Pitch	274.5 (per one triad) ×274.5
Support Color	16.7M colors (RGB 8-bit )
Contrast Ratio	1000 Typ.
Luminance, white	400 Typ.
Viewing Angle	89 Typ.
Display Surface Treatment	Anti-Glare 3H

How to solve severe surface reflection of outdoor touch screens?
1.Adopt full lamination optical bonding technology to eliminate air gaps, fundamentally reducing reflection and fogging issues.

2.Adopt AR anti-reflection coating and AG anti-glare coating on the surface to reduce mirror reflection and enhance visibility under strong light.

3.Adopt low-gloss panel substrate to weaken specular reflection.

4.Seal frame gaps of the whole device to block moisture infiltration and prevent internal fogging.

How to solve the problem of narrow viewing angle?
1.Equipped with wide-view LCD panel to expand horizontal and vertical viewing range.

2.Equipped with high-transmittance polarizer to reduce image attenuation from viewing angle shift.

3.Boost screen backlight brightness to ensure clear viewing from all angles under strong light.

4.Optimize optical layered structure to reduce color and brightness deviation caused by viewing angle shift.

How to improve dustproof performance?
1.Apply full bonding technology to eliminate gaps and prevent dust ingress.

2.Full edge sealing with waterproof and dustproof gasket prevents dust penetration.

3.Surface coated with wear-resistant protective layer to resist sand abrasion and corrosion.

4.Dust-proof pressing frame structure reduces dust accumulation in gaps.

FAQ
1.Q: Can the touch screen work clearly under direct sunlight?
A: Yes. It features 1000cd/㎡ high brightness plus AR&AG coatings, delivering excellent visibility in strong sunlight.

2.Q: Will reflection and fog affect outdoor use?
A: Optical bonding removes air gaps, effectively lowering reflection and avoiding internal fogging.

3.Q: Does the screen support wide viewing angles?
A: Wide-view LCD panel and high-transmittance polarizer ensure stable display from all perspectives.

4.Q: How about dust and water resistance performance?
A: Fully sealed structure and tight edge gaskets effectively block dust and moisture infiltration.

5.Q: Is the panel resistant to impact and abrasion?
A: IK10 impact resistance grade and wear-proof coating protect the screen from damage.
