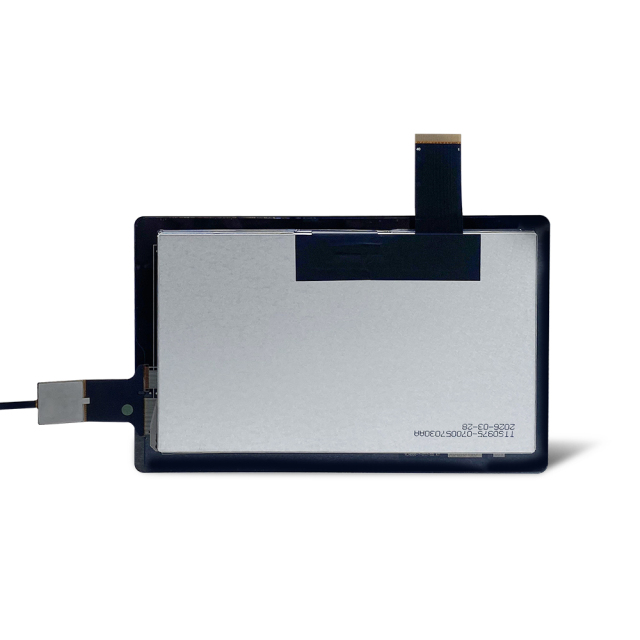

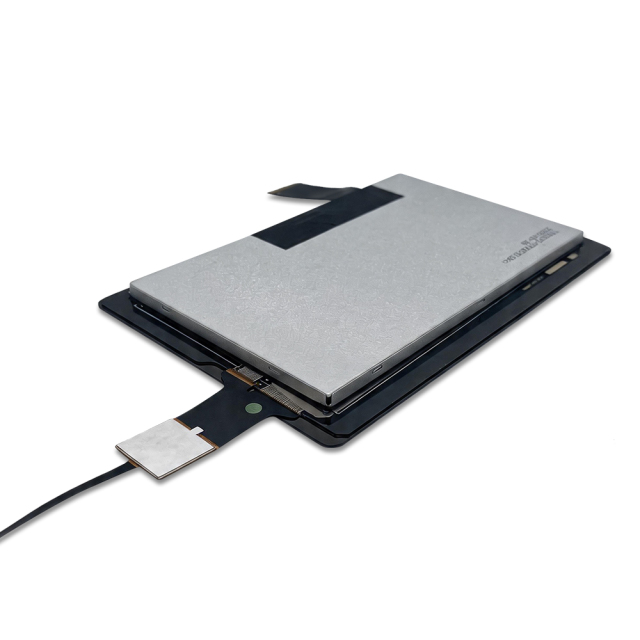

This touch panel display 7 inch is mainly designed for industrial customers, using G+G structure with air bonding technology, which not only enhances the industrial characteristic, durability, but also easy to maintenance and cost-effective.
In industrial applications, we often meet many many problems, such as short service life during long-term operation, screen aging and the screen is not waterproof and dustproof, easy to scratch etc.
Features of touch panel display 7 inch

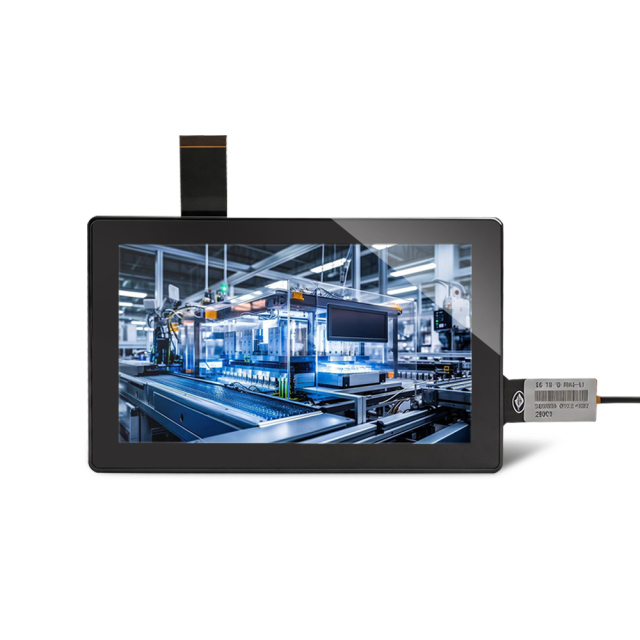

1. front ip65 waterproof and dustproof,
2.The front panel hardness is above 7H, making it resistant to scratches even in industrial environments, durable and not easily broken.
3.Equipped with industrial-grade wide-temperature chips, it operates stably within a temperature range of -20°C to 70°C. It does not suffer from unresponsive touch or malfunction at high temperatures, nor does it experience condensation or a stiff screen at low temperatures.

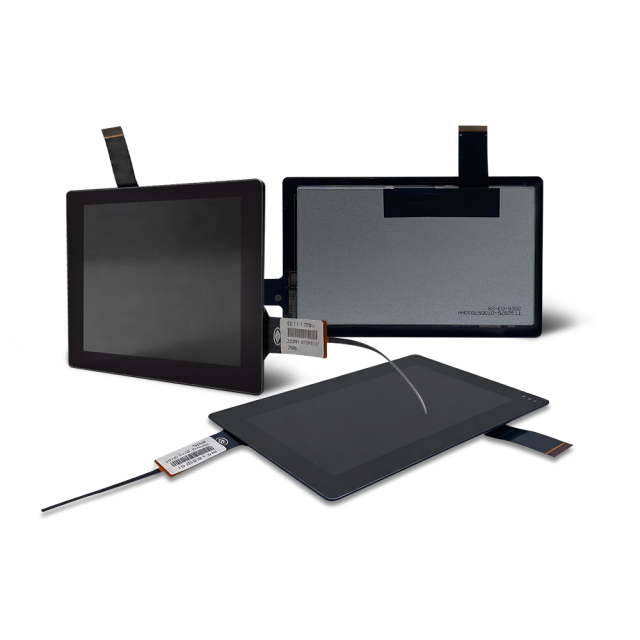

4.Adopts G+G structure and frame bonding technology, featuring high cost performance, easy maintenance, strong flexibility and low maintenance cost.
5.Free drawings are provided, and customization services covering appearance, performance, packaging, etc. are available.
6.Solves issues such as lack of explosion-proof and scratch-resistant properties of ordinary non-industrial touch modules, prolongs product service life, and reduces maintenance costs.
7.3-year warranty. Any non-artificial quality issues within three years will be supported by our after-sales engineers online 24/7 to assist you in solving problems.
Specifications
| Items | Specifications |
| Screen Diagonal | 7/16:9 |
| Cover Outline Dimension | 179.07*111.6mm |
| Touch Panel View Area | 154.08*85.92mm |
| Touch Panel Active Area | 155.08*86.92mm |
| Touch Panel Thickness | 2.75mm |
| Display Outline Dimension | 164.9*100mm |
| Display Active Area | 154.21*85.92mm |
| Display Thickness | 4.8mm |
| Impact resistance | ≥IK07 |
| Lamination to display | Air bonding(gap 1mm) |
| Support Touch Points | 10 points Typ. |
| Controller Interface | USB Typ. |
| Controller Supply Voltage | USB 5V Typ. |
What certifications we have?
we have CE, ROSH, REACH, ISO9001, FCC etc.
FAQ
1.What is the MOQ of this touch panel display 7 inch you can offer?
the MOQ is 1 pcs, and the shipping time is about one week.
2.If i play a big order, you can offer me the bulk discount?
Yes, we can
3.What custom services you can offer about the touch panel display 7 inch?
we can offer your the logo customized, packaging customized and feature customized
4.How long will it be delivered, if i play the order for this touch panel display 7 inch?
3days
5.What is the warranty of the touch panel display 7 inch?
the warranty is 3 years
