Product Advantages

Structural and System Design Benefits

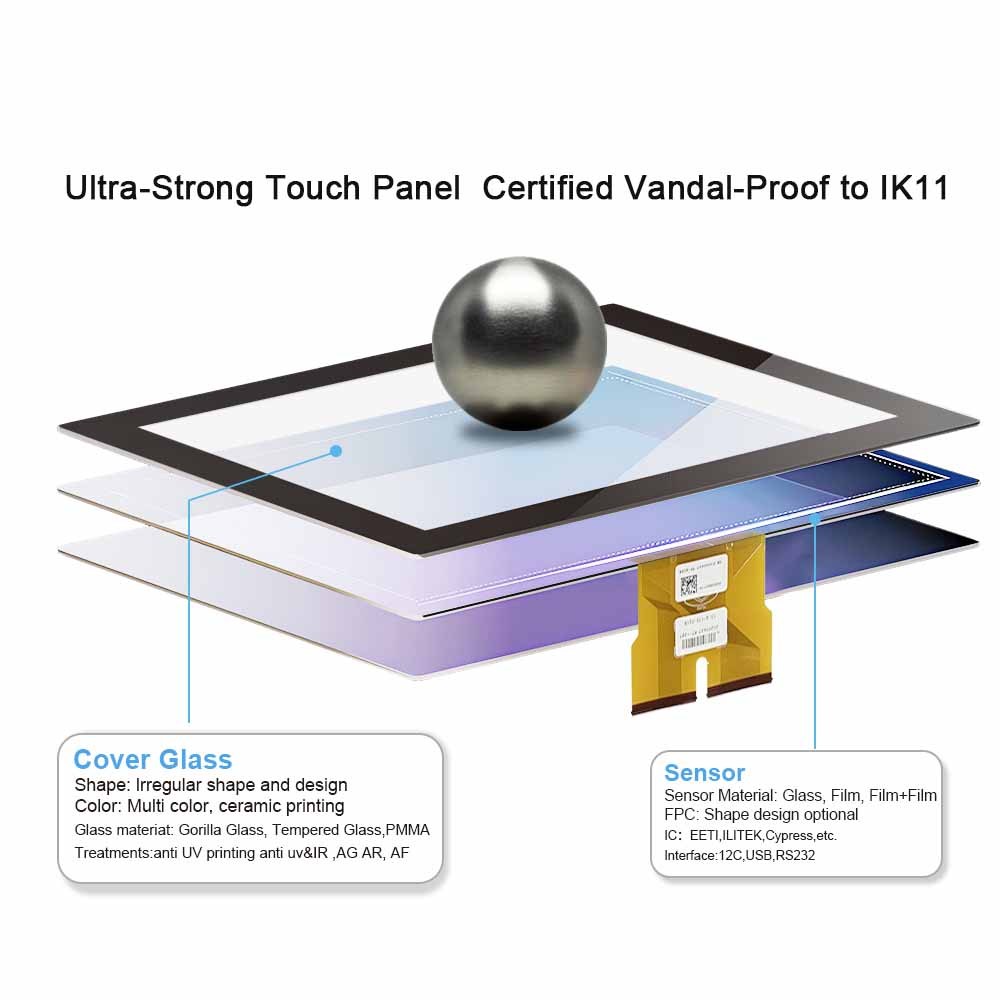

The 1000 Nit Capacitive USB Touch Overlay employs advanced full lamination and an industrial-grade G+G structure, underscoring design resilience for outdoor environments. Its compact layered architecture supports effective integration by custom outdoor touch display suppliers aiming for application-specific adaptations. With USB multi-touch display compatibility, the system architecture ensures plug-and-play functionality, minimizing installation complexities. Anti-vibration features and IP65+ sealing safeguard the hardware against mechanical shocks, moisture ingress, and particulate contamination, extending operational reliability in demanding scenarios typical of a high brightness touch display manufacturer’s product line.

Performance Excellence and User Value

Equipped with automatic baseline calibration and segmented temperature compensation, the touch overlay delivers stable and drift-free touch response, vital for maintaining user confidence in critical interfaces. Its ≤25 ms response time combined with ≥100 Hz touch report rate enhances smoothness and precision, supporting complex multi-touch gestures without lag. The sunlight readable touch screen capability guarantees clear interaction under direct sunlight, significantly improving usability in outdoor settings. These performance attributes offer end users a consistent, low-maintenance, and reliable experience while enabling system integrators to optimize operational efficiency and reduce long-term total cost of ownership.

Use Scenarios

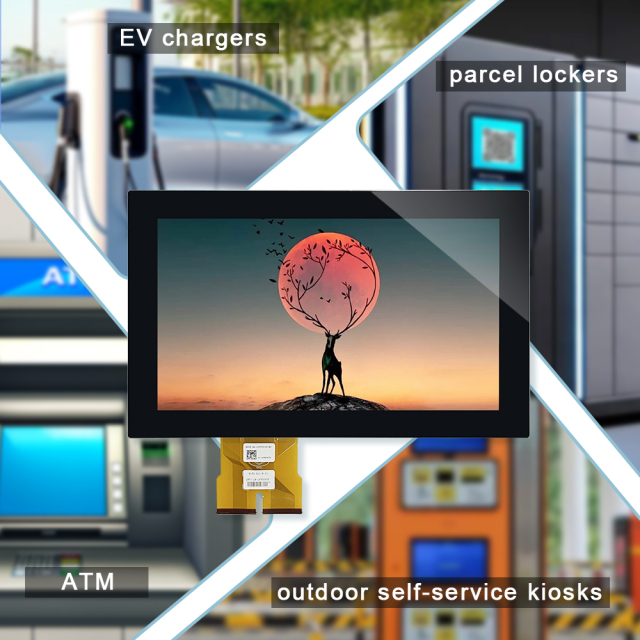

Outdoor Public Kiosks and Interactive Signage Solutions

In urban and commercial outdoor environments, the 1000 Nit Capacitive USB Touch Overlay is deployed in public kiosks and digital signage where direct sunlight exposure is prevalent. As a key component supplied by a custom outdoor touch display supplier, it facilitates accurate user input on sunlight readable touch screen interfaces, maintaining legibility and responsiveness despite environmental challenges. The overlay’s IP65 sealing and robust anti-interference design ensure uninterrupted operation against dust, moisture, and electromagnetic noise. Integration with USB multi-touch display controllers enables rapid connectivity and system compatibility within diverse interactive environments, supporting public information dissemination and transaction processing workflows.

Industrial Control Panels in Harsh Operating Conditions

For industrial settings exposed to vibration, temperature swings, and contaminants, this overlay serves as a durable user interface component. As a product characteristic expected from a high brightness touch display manufacturer, it delivers resilient functionality with its G+G industrial structure and vibration resistance. The sunlight readable touch screen function permits operation in areas with strong ambient light, while onboard temperature compensation algorithms mitigate calibration drift under fluctuating conditions. Its USB multi-touch display interface facilitates straightforward integration with industrial control architectures, enhancing system responsiveness and operator efficiency in manufacturing, transportation, or outdoor equipment control applications.

Specifications:

What solutions do you use to improve touch accuracy?
1.Adopt low temperature-drift ITO, which features minimal resistance variation under high/low temperatures and long-term aging. Combined with high-rigidity float glass, it reduces position offset caused by thermal expansion, contraction and creep deformation.

2.Adopt low-shrinkage optical adhesive, temperature-resistant foam and double-sided tape to prevent the touch layer from being pulled due to adhesive aging and deformation. Low-stress FPC cables are applied to avoid signal offset caused by tension on the leads.

3.All touch ICs, resistors and capacitors adopt industrial-grade specifications rated for -40℃~+85℃. Their parameters remain stable under extreme temperatures, minimizing sampling deviations at the fundamental level.

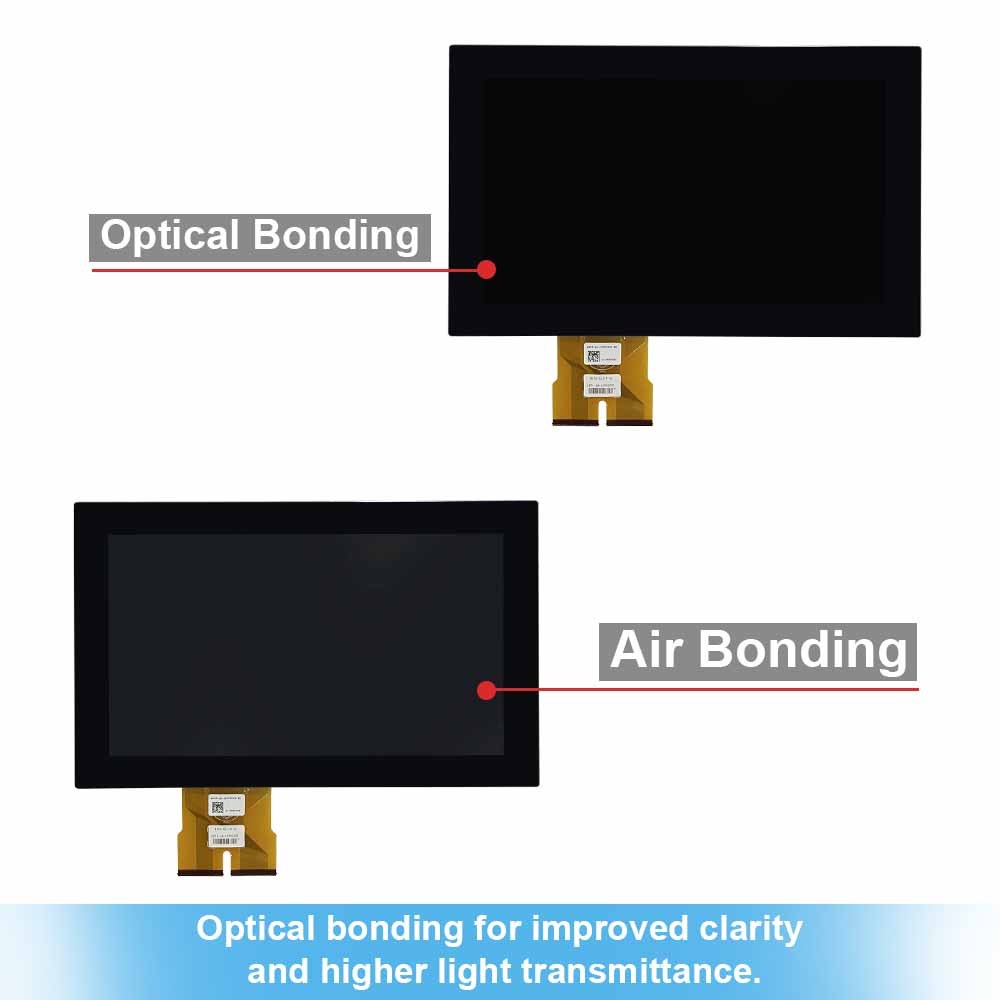

4.Adopt full lamination process instead of frame bonding to eliminate interlayer air gaps and uneven local stress. The lamination pressure, temperature and speed are strictly controlled to ensure uniform pressure across the entire surface.

5.Add constant-temperature standing aging after lamination and pressing to release internal process stress, preventing continuous position drift caused by gradual stress relief in later use.

6.Increase the wiring density of electrodes in edge areas and optimize routing design to mitigate edge electric field attenuation, solving the problems of ineffective clicks and poor accuracy on screen edges.

7.Silicone buffer pads are fitted around the display with reserved assembly clearances, so the housing will not exert rigid pressure on the touch panel. Anti-vibration brackets are installed for vibration-prone operating environments to block mechanical stress from transferring to the touch layer.

8.Implement heat insulation and thermal conduction treatment inside the control cabinet to avoid excessive local temperature difference on the screen. For outdoor devices, adopt thermal insulation and anti-condensation measures to reduce abrupt overall temperature changes.

9.Features a sealing structure with IP65 or higher rating. It blocks moisture and dust intrusion, preventing signal baseline shift and minimizing gradual touch position drift.

10.Equipped with wide-temperature LDO voltage regulators and multi-stage EMI/ESD protection circuits. These maintain stable power supply voltage and suppress sampling jitter caused by electromagnetic and static interference.

11.Adopt the electrode differential sampling architecture to offset common-mode interference and overall baseline drift, and improve the consistency of coordinate output.

12.Onboard multi-point temperature sensors are deployed to perform segmented coordinate compensation based on temperature ranges. It real-time corrects drift induced by temperature changes, eliminating the need for frequent manual calibration.

13.Automatic silent baseline calibration is triggered upon power-on, drastic temperature fluctuations and wake-up from standby. It works without disrupting normal operation and offsets baseline shift resulting from long-term aging.

14.Boost the sampling gain for edge areas and optimize touch algorithms to address weak edge electric fields, fixing inaccurate and unresponsive touches on screen edges.
