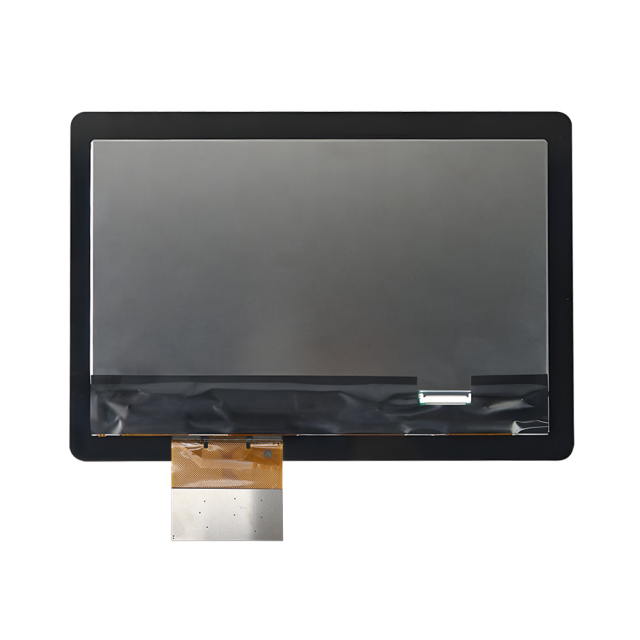

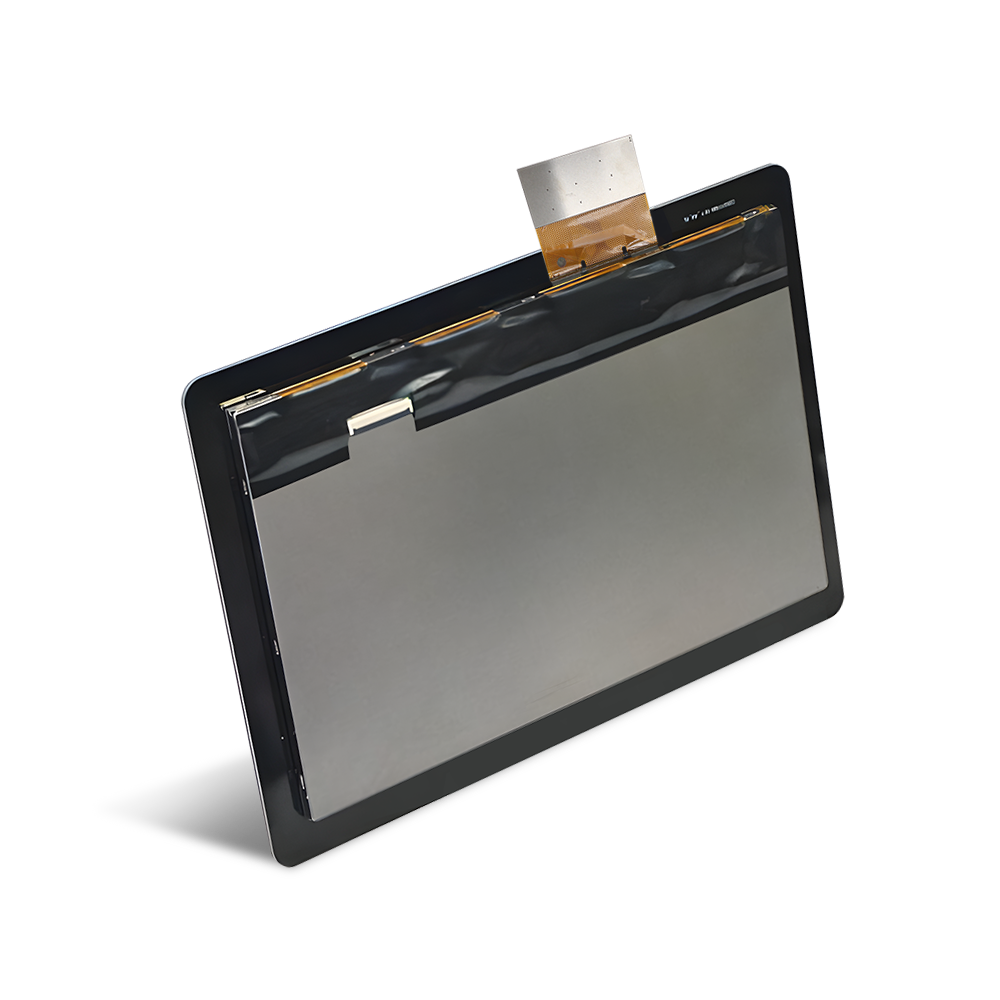

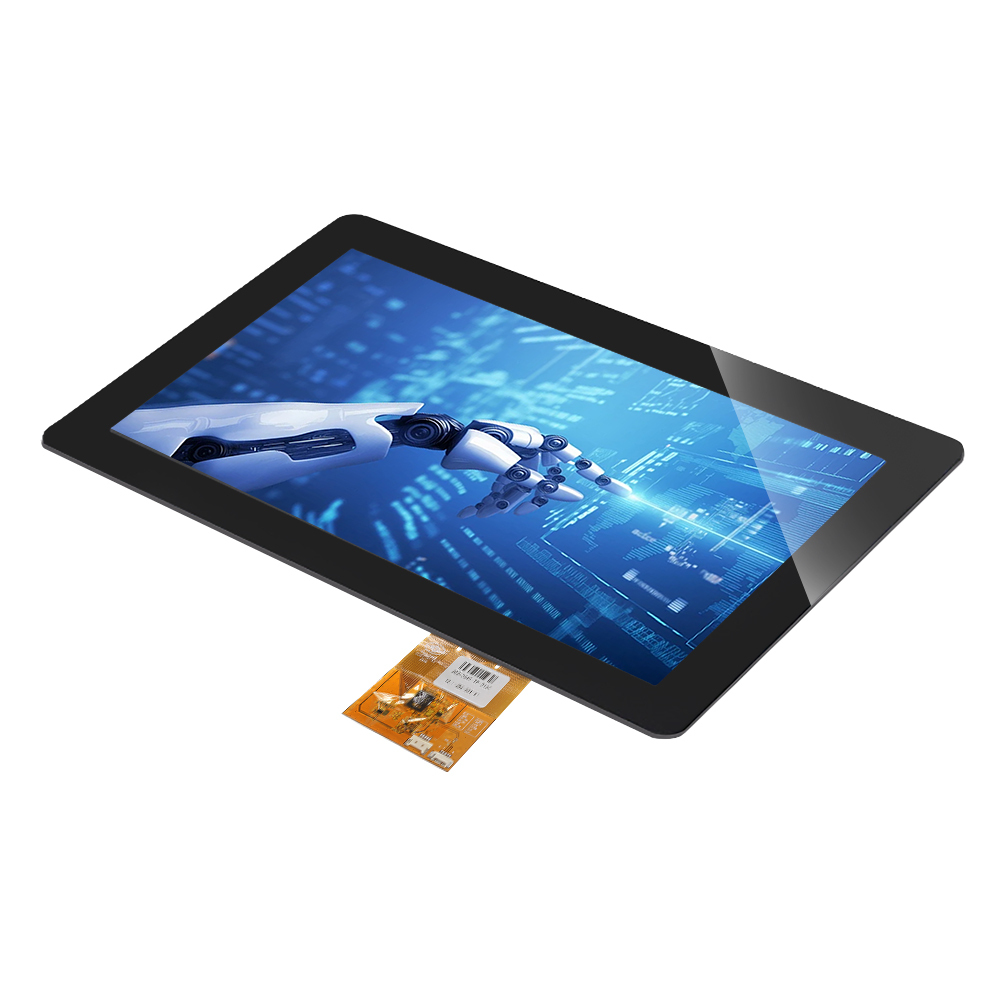

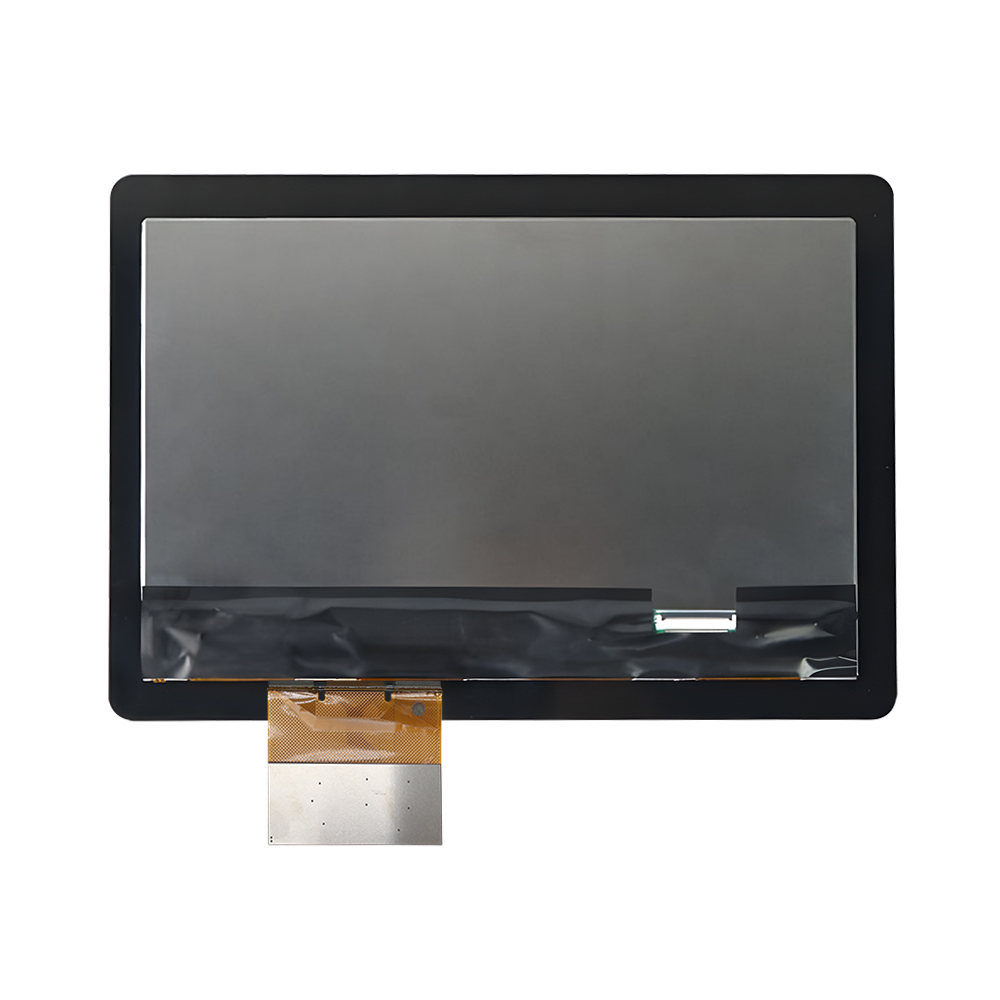

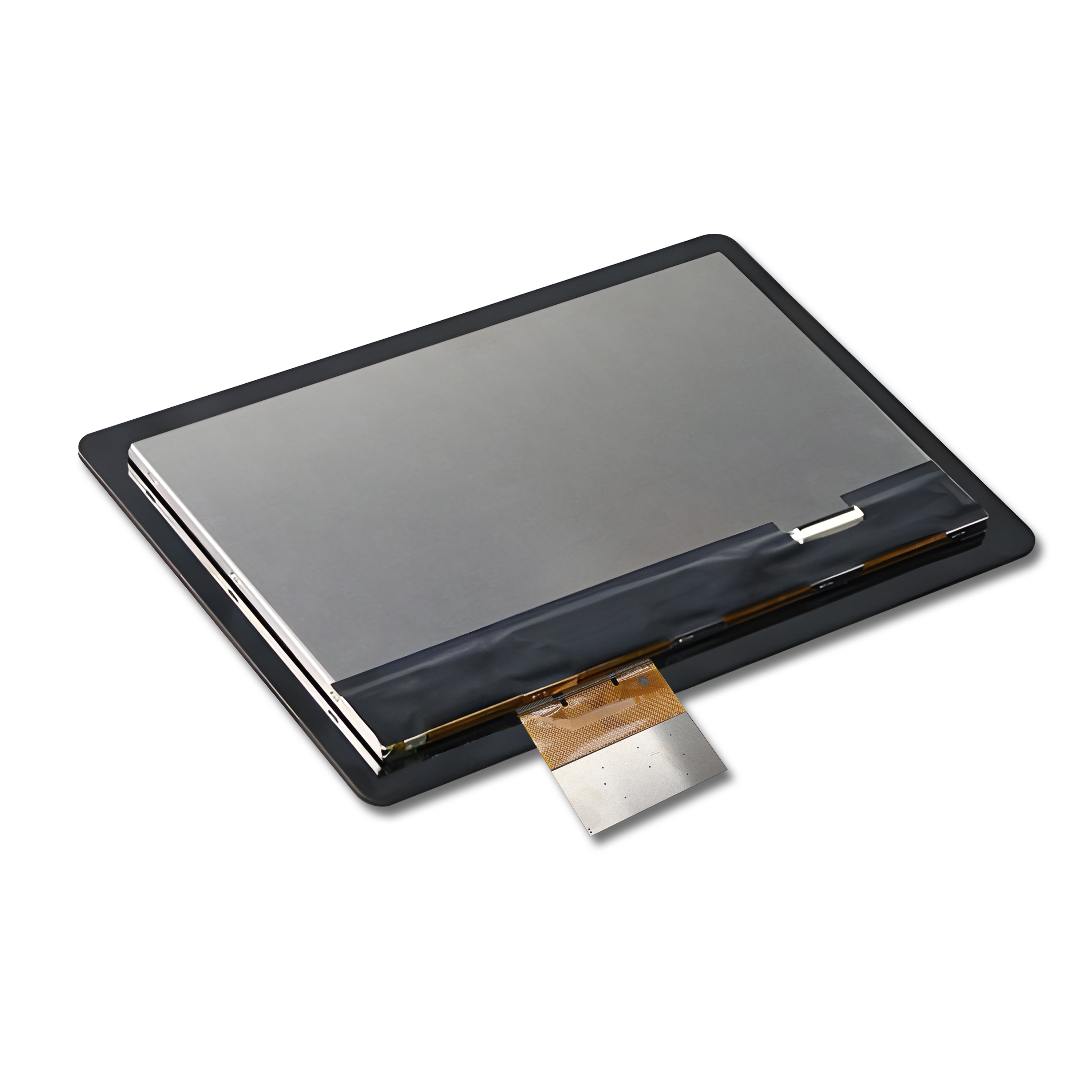

LCD Touch Screen Capacitive Touch | Manufacture

Specifications:

Solutions to Touch Accuracy Issues Under High and Low Temperatures
1.Replace conventional commercial ICs with wide-temperature touch ICs. These devices operate steadily across a temperature range of -40℃ to +85℃ and feature built-in native temperature drift compensation circuits. They minimize the impact of temperature fluctuations on electrode sampling data at the chip level, with the inherent temperature drift error kept within ±1mm.

2.Adopt high-stability ITO films to replace standard ITO materials. Their resistance variation rate stays below 3% under high and low temperatures, effectively preventing coordinate drift caused by electrode resistance deviation.

3.Add redundant sensing electrodes and adopt differential sampling layout to offset signal deviations caused by temperature changes across the entire area.

4.Adopt high and low temperature resistant glass substrates to prevent the touch layer from being stretched due to substrate thermal expansion and contraction. Industrial-grade LEDs are used for the backlight module, which maintains stable brightness at -30°C without attenuation and generates no strong light interference at high temperatures. This avoids adverse impacts on touch sampling caused by heat from the backlight.

5.Equip on-board temperature sensors to collect real-time screen temperature at millisecond intervals. A segmented temperature compensation model is applied, covering low-temperature zone (-30~0°C), normal-temperature zone (0~50°C) and high-temperature zone (50~70°C). It dynamically corrects touch coordinates and sampling thresholds, keeping the overall temperature drift error within ±1.5mm.

6.Enable adaptive sensitivity adjustment: automatically boost touch sampling gain at low temperatures and lower interference thresholds at high temperatures. It dynamically filters abnormal jump points and disconnection signals, preventing sharp sensitivity drop in cold conditions and false triggers in hot environments.

7.Automatically perform full-area baseline recalibration upon device power-on or sudden temperature changes, and refresh touch reference values in real time to eliminate cumulative errors from long-term temperature fluctuations.

Solutions to Ghost Touch Issues
1.Adopt high-resistance and temperature-stable ITO coating. It features excellent anti-aging and anti-oxidation performance, with minimal resistance drift under long-term high-low temperature and humid heat conditions, which slows down circuit attenuation and disconnection. The edge electrodes are thickened to prevent circuit breakage caused by bending and mechanical stress.

2.Adopt high weather-resistant glass to prevent conductive circuits from being stretched by substrate deformation. Use industrial-grade optical adhesive and double-sided tape with low precipitation and high cleanliness to avoid impurities generated by adhesive volatiles.

3.Adopt bend-resistant and corrosion-resistant FPC cables with thickened gold plating on golden fingers. Protective coatings are applied to terminals to avoid local signal anomalies caused by oxidation and poor pin contact.

FAQ
1.Q: What causes ghost touches on touch screens?
A: Ghost touches are mainly triggered by signal drift, EMI interference, material aging and poor contact. Our optimized materials, circuit design and algorithms fully resolve this issue.

2.Q: What is the operating temperature range of your touch products?
A: The products work reliably from -40℃ to +85℃, and maintain stable touch performance in extreme high and low temperature scenarios.

3.Q: How accurate is the touch response during temperature changes?
A: Equipped with segmented temperature compensation, the overall temperature drift error is controlled within ±1.5mm to guarantee consistent touch precision.

4.Q: Can the touch components withstand long-term harsh working conditions?
A: We use temperature-stable ITO, high weather-resistant glass and premium adhesives. These materials resist aging, oxidation and deformation to extend service life.

5.Q: Will bending or mechanical stress lead to circuit failure?
A: Reinforced edge electrodes, thickened gold plating and bend-resistant FPC effectively prevent circuit breakage caused by bending and mechanical stress.
