. Equipped with built-in temperature compensation circuits, it maintains stable sampling accuracy and response speed across extreme temperatures, completely eliminating touch lag in low-temperature environments.
2.
3.Equipped with low-temperature start-up LDO voltage regulator circuit, which keeps voltage fluctuation within ±1%. It ensures normal startup and operation of the chip at low temperatures and eliminates touch response lag.
4.Multi-stage EMI and ESD protection are implemented along with partitioned PCB layout. Metal shields and thermal insulation pads are installed around heat-generating components to isolate thermal radiation and electromagnetic interference, preventing signal disorder and intermittent touch failure.
5.Multiple high-precision temperature sensors are onboard to real-timely collect temperature data of the screen, IC and ambient environment, providing data support for algorithm compensation.
6.Install thermal insulation cotton and baffles on the side adjacent to heat-generating devices or control cabinets to block direct thermal radiation and prevent local overheating of the screen.
7.Reserve micro ventilation and heat dissipation grooves in high-temperature areas, and use thermal pads to dissipate heat from the module to avoid heat accumulation. The overall structure achieves a balance between sealing and ventilation, preventing secondary faults caused by condensation.
8.Buffer gaps and silicone shock-absorbing pads are arranged around the screen to release mechanical stress from thermal expansion and contraction, preventing circuit micro-cracks and touch point drift.
9.All products undergo mandatory high-low temperature cycle and thermal radiation simulation tests to replicate real workshop operating environments, so as to eliminate temperature-related defective products before delivery.
How to solve the problem of touch failure when wearing different types of gloves?1.
Adopt industrial-grade touch IC with thick glove mode, which boosts electrode induction sensitivity and signal sampling intensity. It supports recognition of 3~8mm thick regular labor, cut-resistant and cold-proof gloves without extra pressing force.
2.Adopt denser sensor electrode layout, large-plate sensing design and differential sampling to expand the induction electric field and compensate for capacitive signal attenuation caused by thick gloves. Optimize edge electrodes to ensure consistent glove touch performance across the entire screen.
3.For high-end scenarios, adopt dual capacitive-resistive touch mode. It works as capacitive touch normally and automatically switches to resistive mode when wearing thick gloves. This thoroughly solves operation failures caused by extra-thick or damp gloves, and is compatible with all types of work gloves.
4.Enable the dedicated thick glove touch algorithm in the system. It increases signal gain, extends sampling integration time and lowers trigger thresholds to mitigate capacitive signal attenuation. The system can distinguish between bare-hand and glove operations without mutual interference.
5.Add pressure judgment logic to adapt to the pressing characteristics of gloved operation, eliminating no response on light touch and delayed trigger. Optimize contact point filtering to avoid false touches caused by glove friction.
6.Use thin tempered glass cover (where structure permits) to reduce sensing distance and electric field penetration loss. High-transmittance materials are adopted to ensure excellent display performance.
FAQ1.Q: Can this touch module work with thick work gloves?A: Yes. It adopts industrial-grade touch IC with thick glove mode, supporting 3~8mm thick labor, cut-resistant and cold-proof gloves.
2.Q: How does it ensure stable touch across the whole screen when wearing gloves?A: It uses dense electrodes, large-plate sensing and differential sampling, and optimizes edge electrodes for uniform performance.
3.Q: What's the solution for extra-thick or damp gloves?A: The dual capacitive-resistive touch design auto-switches modes to adapt to all kinds of work gloves.
4.Q: Will glove friction cause false touches?A: Optimized contact filtering and pressure judgment logic effectively prevent false triggers and unresponsive light touches.
5.Q: Does the design for glove use affect display effect?A: Thin high-transmittance tempered glass is applied, which reduces sensing loss while keeping clear display.

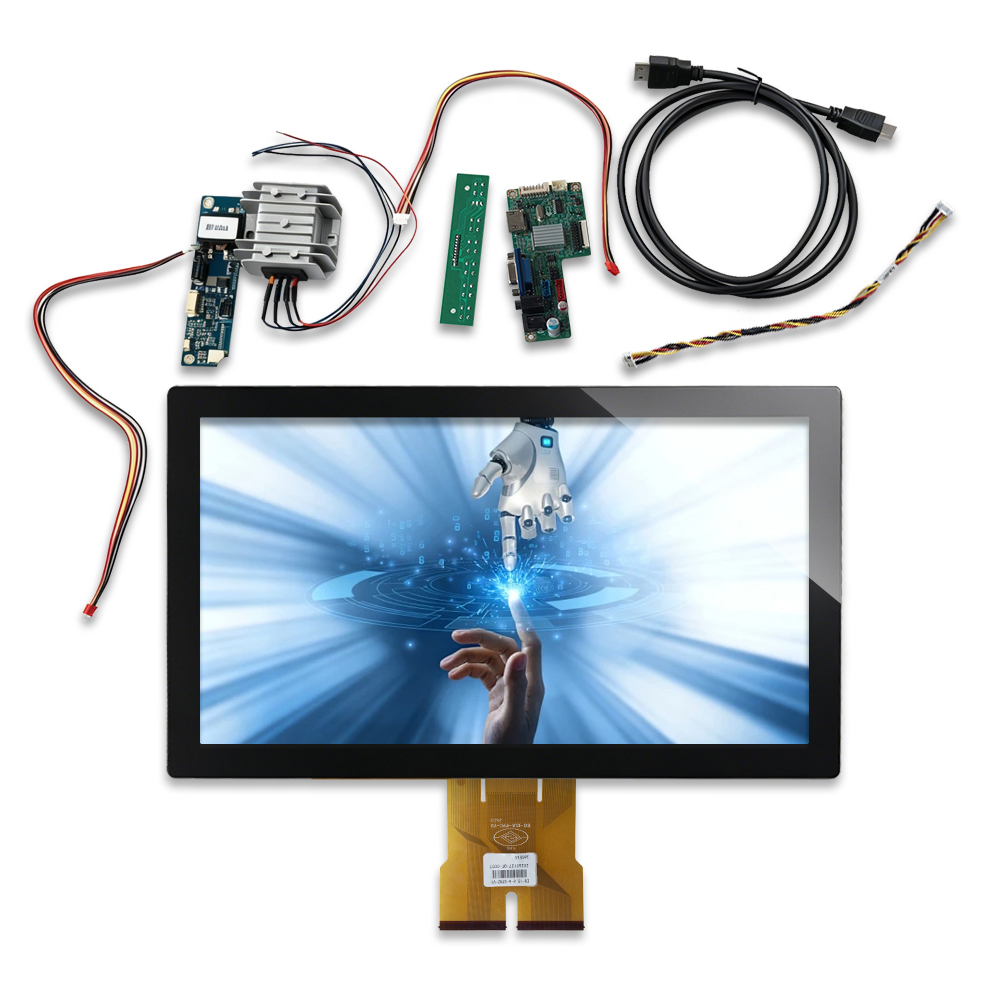

Related Products:1.Large Touch Display Capacitive Touch | Ever Glory
