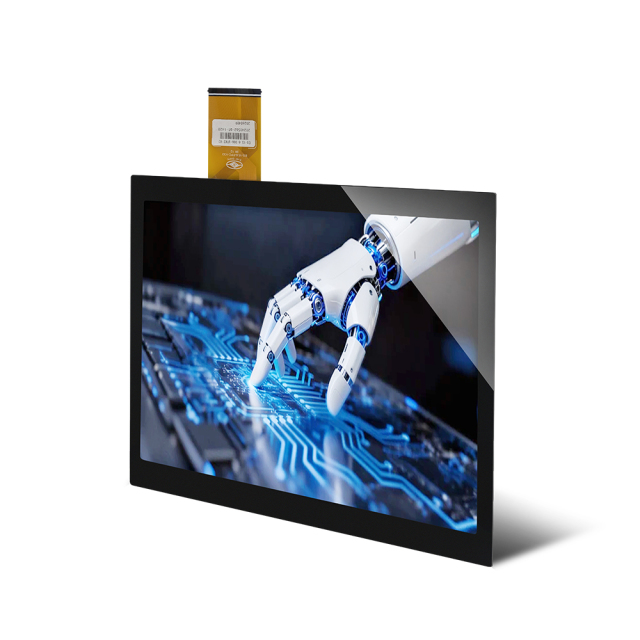

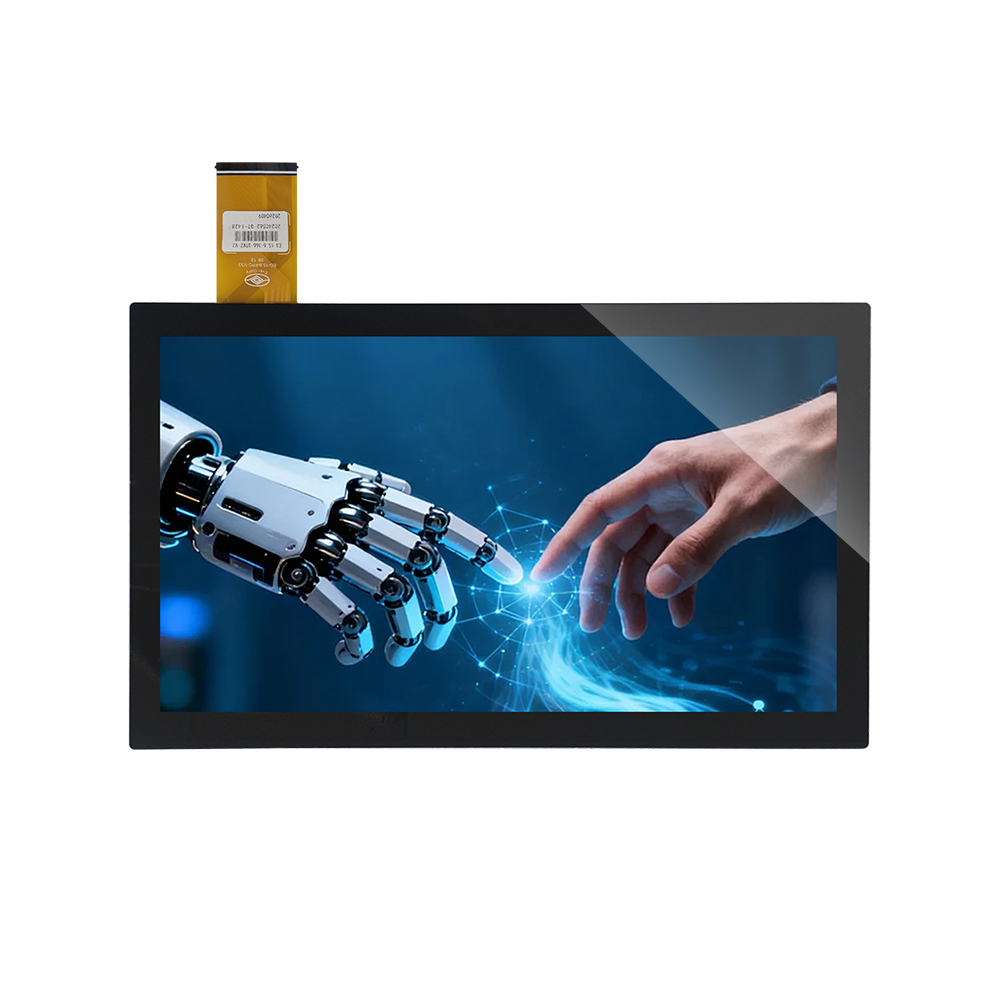

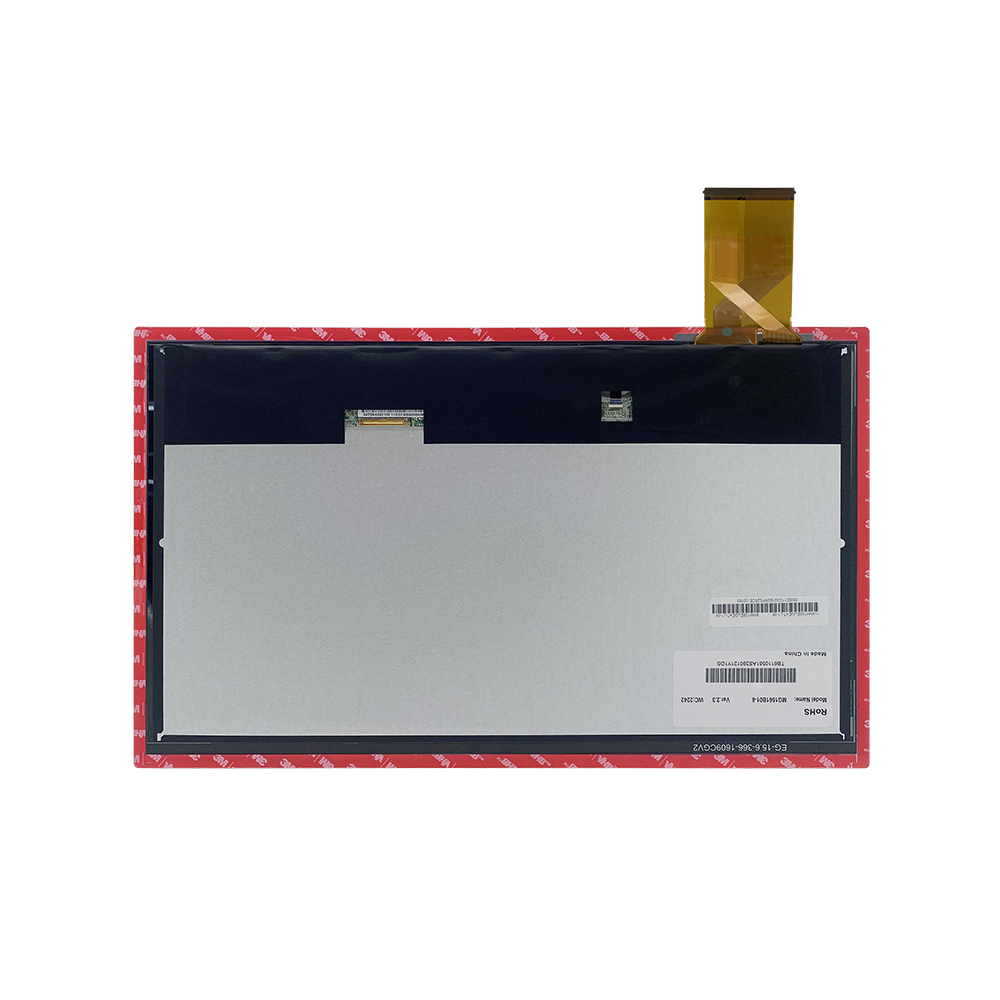

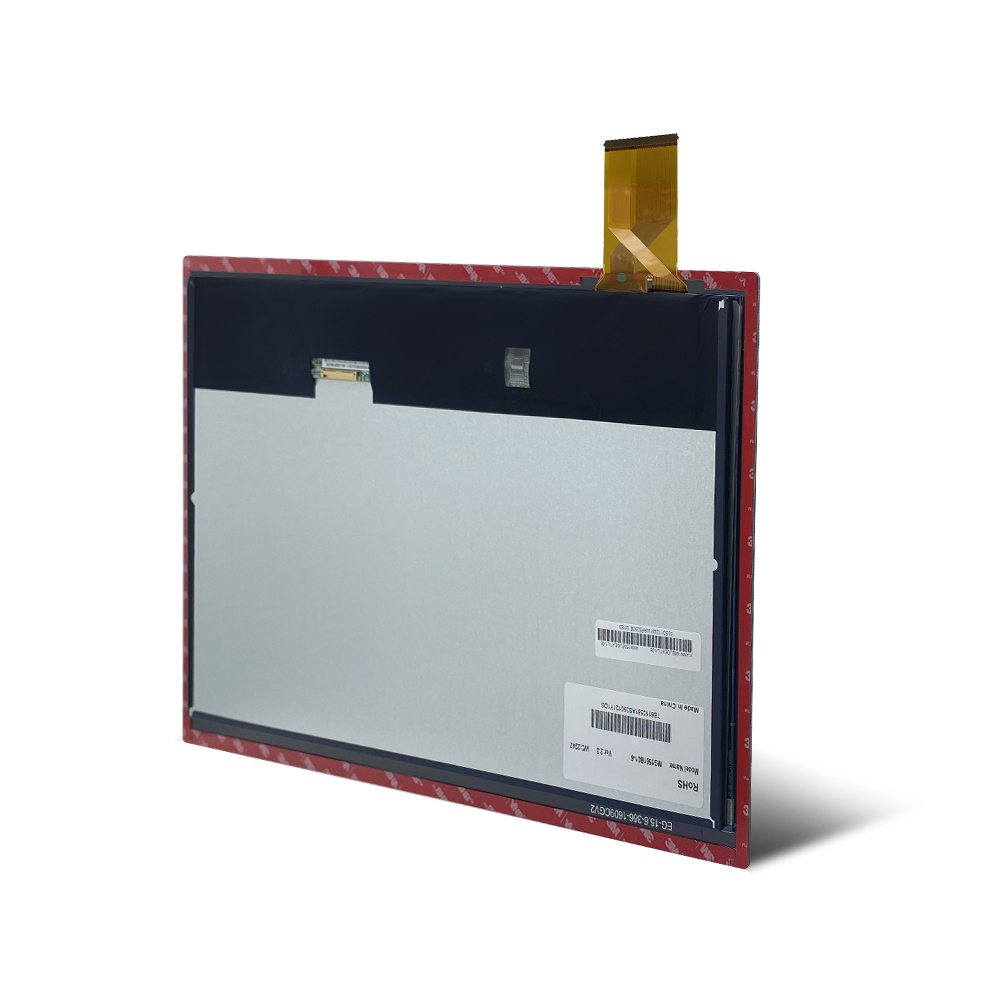

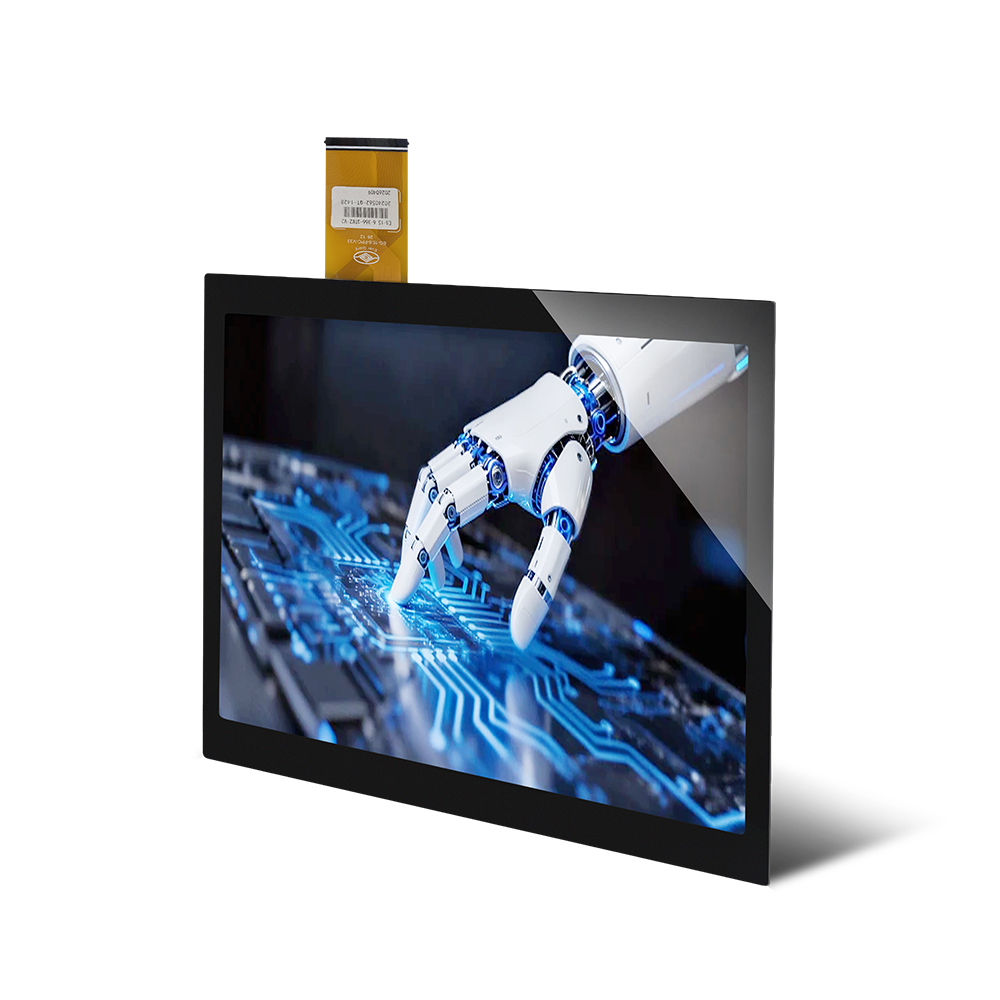

Features of optical bonding 15.6 inch touch display module1.Supports 1‑10 point touch control, gesture zooming and sliding. It enables stable operation with thick gloves, wet hands or oily fingers, delivering reliable recognition and anti‑mis touch performance.
2.G+G structure with surface hardness ≥ 7H
3.Report rate > 100Hz, accuracy ±2.5mm, response time < 5ms
4.Resolution: 1920×1080 (FHD)
5.Brightness: ≥ 1000 cd/m², visible even in strong outdoor sunlight.
6.Backlight: LED, lifespan ≥ 50,000 hours, wide-temperature type

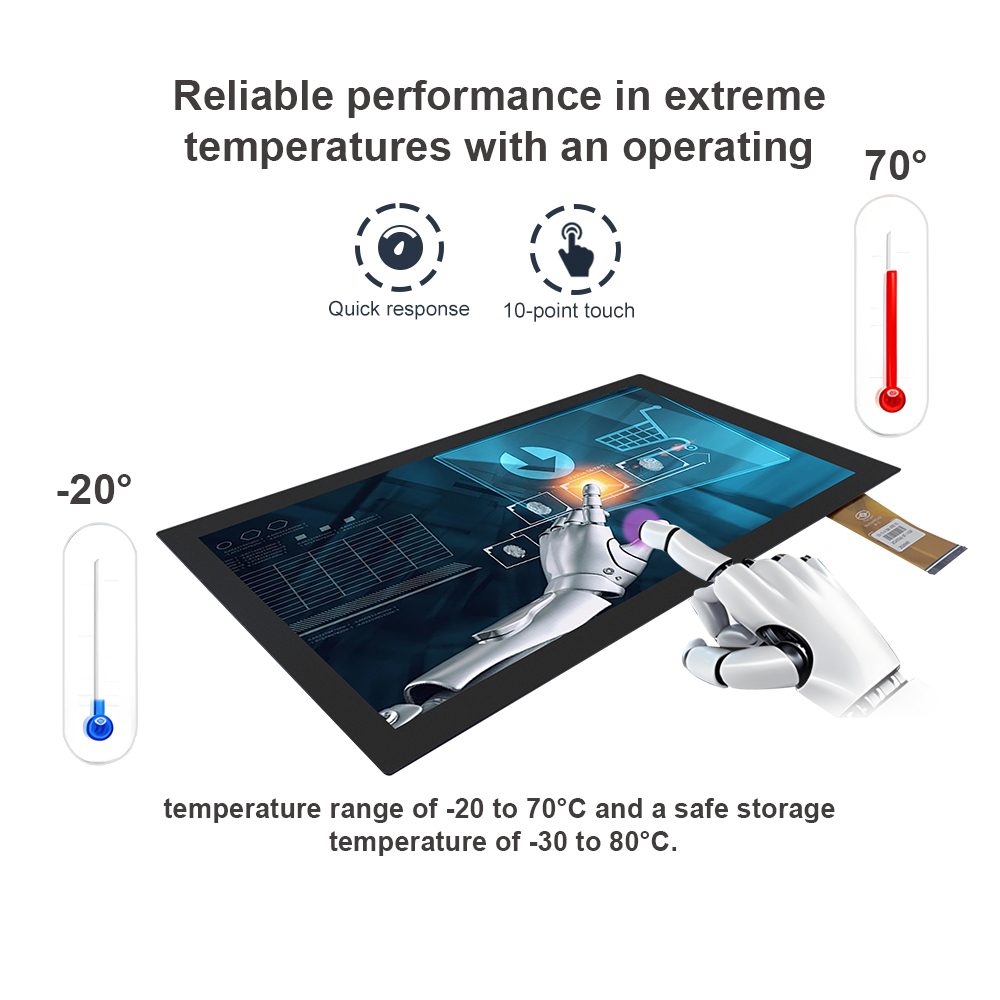

7.Working Temperature：-20-70degree
8.Fully laminated with OCA optical adhesive, reducing reflection, enhancing contrast, preventing fogging and resisting vibration. Equipped with anti-glare (AG) coating (80±10 GU), fingerprint-proof and oil-resistant coating.
9.Front panel: IP67 (dustproof and resistant to low-pressure water spray)
10.DC 9~36V (compatible with 12V/24V systems), with over-voltage, under-voltage, reverse polarity, surge, short-circuit and isolation protection.
Specifications:
| Items |
Specifications |
| Type |
Projective Capacitive |
| Connector |
COB |
| Structures |
G+G |
| Printing |
Black |
| Transmittance |
>85% |
| Operation Conditions |
-20℃~70℃ |
| Input Mode |
Finger |
| Support Points |
1~10 |
| Interface |
USB |
| Supply Voltage |
USB 5 V |
| Report Rate |
＞100 Hz |
| Life Time |
＞50,000,000 times |
Yes, with brightness ≥1000 cd/m² and anti-glare AG coating, it remains clearly visible under strong outdoor sunlight.
2.Does it support operation with thick work gloves?Yes, it supports stable touch operation with thick gloves, wet hands, or oily fingers without misoperation.
3.What is the touch performance?It supports 1–10 point touch, gesture zoom and slide, with response time <5ms and accuracy ±2.5mm.
4.What is the G+G structure?G+G structure means glass cover + glass sensor, providing surface hardness ≥7H, high strength and durability.
5.Is it fully laminated?Yes, full lamination with OCA optical adhesive reduces reflection, improves contrast, and resists fog and vibration.
6.What protection level does the front panel have?The front panel reaches IP67, which is dustproof and resistant to low-pressure water spray.
7.What power supply does it support?DC 9–36V, compatible with 12V/24V systems, with multiple protections: over-voltage, under-voltage, reverse polarity, surge, short circuit, and isolation.
8.How long is the LED backlight service life?LED backlight lifespan ≥50,000 hours, wide-temperature design for harsh environments.
9.Is it anti-vibration suitable for engineering machinery?Yes, the fully laminated structure and stable assembly make it highly resistant to vibration and shock.
10.What surface treatments are available?It has anti-glare AG (80±10GU), anti-fingerprint, and oil-resistant coating for easy cleaning and long-term use.
