1.The front panel adopts 3mm high-quality thickened tempered glass with an IP65 protection rating. It effectively resists long-term dust accumulation and sand erosion, achieving zero dust buildup inside the device. This fundamentally avoids issues such as short circuits, screen flickering and touch drift, ensuring more stable and reliable operation.
2.
3.Adopting a flat and recess-free integrated design, the panel has no physical buttons or openings, making it hard for dust to adhere and accumulate. It allows easy and efficient daily cleaning and wiping, and supports long-term stable operation in harsh high-dust environments such as mines, construction sites and deserts.
How to improve the visibility of tft touch display module in dusty environments?1.Equipped with a 1500 cd/m² high-brightness screen combined with AG coating, the display remains clear and readable even under direct strong sunlight while effectively suppressing dust reflection. With hydrophobic and oleophobic coating, dust and sand are hard to adhere to the surface. It can be wiped clean effortlessly like new, maintaining excellent clarity even after long-term use.
2.The panel is made of 7H hardness reinforced tempered glass, featuring superior scratch and wear resistance. It withstands long-term friction from dust, and is resistant to fogging and scratches. It maintains excellent light transmittance and precise touch performance even after prolonged use.
3.The fully laminated optical structure effectively enhances contrast and reduces screen reflection. Even when the surface is covered with a small amount of dust, the screen content remains clearly distinguishable. It greatly reduces the frequency of downtime cleaning and ensures continuous and stable operation of the equipment.
How to enhance the tft touch display module heat dissipation performance?1.
Adopting industrial-grade components together with three-proof coating, both the circuit board and interfaces are covered with professional moisture-proof and dust-proof conformal coating. It effectively resists dust corrosion and oxidation, greatly reducing equipment failure rates in high-temperature and high-dust environments for more stable and reliable operation.
2.
Fanless sealed thermal design with no ventilation openings on the entire unit, fundamentally preventing dust ingress via airflow.
Paired with a metal back plate / vapor chamber for passive heat dissipation, it delivers efficient and stable cooling performance.

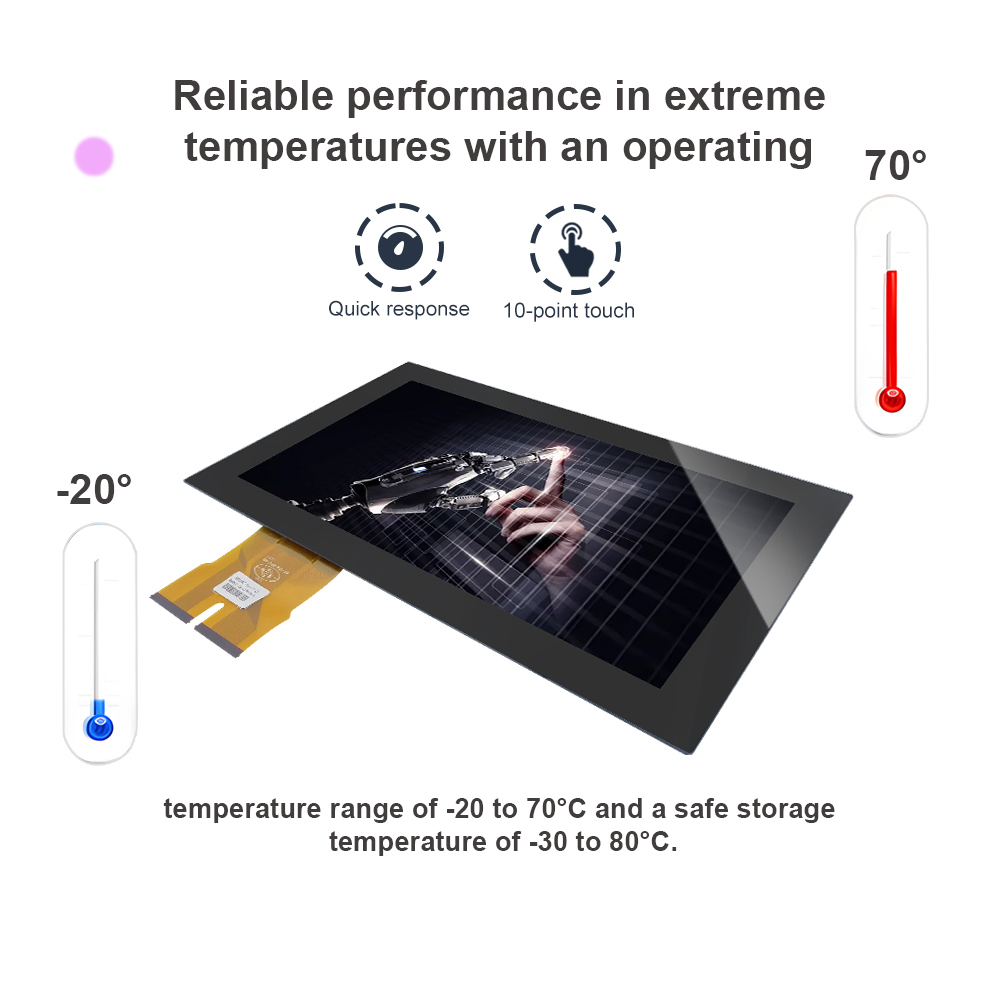

It operates reliably over a wide temperature range of -20℃ to +70℃ and supports 7×24-hour non-stop continuous operation.
FAQ
1.Q: Is this touch panel suitable for high‑dust environments like mines and construction sites?
A: Yes. It uses a fanless sealed design, IP65 protection, and full‑lamination technology to effectively block dust intrusion, ensuring stable operation in harsh high‑dust conditions.
2.Q: How does this product prevent dust from causing short circuits or touch failure?
A: The front panel uses 3mm tempered glass and a fully sealed structure. Internal circuits are protected by three‑proof coating, eliminating dust accumulation, corrosion, and related electrical failures.
3.Q: Can the screen remain readable even when covered with dust or under strong sunlight?
A: Yes. With 1500 cd/m² high brightness and AG anti‑glare coating, the display maintains high contrast and clear visibility even with surface dust or in direct sunlight.
4.Q: Does the fanless design affect heat dissipation and long‑term working stability?
A: No. It adopts passive cooling via a metal backplate and vapor chamber, supporting a wide temperature range of -20℃ to +70℃ and reliable 7×24h operation.
5.Q: How easy is it to clean and maintain the touch panel in dusty environments?
A: The flat, button‑free, and seamless surface makes dust hard to adhere. The hydrophobic and oleophobic coating allows easy wiping, greatly reducing cleaning and maintenance frequency.
